2842138 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

BOARD CONNECTOR, 12 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SOLDER TERMINAL, BLACK INSULATOR

Part	Contact Shape	Termination	Insulation Material	Number of Positions Loaded	Contact Finish - Post	Mounting Type	Contact Material	Shrouding	Contact Length - Post [x]	Contact Length - Post	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Connector Type	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Overall Contact Length	Overall Contact Length	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Material Flammability Rating	Number of Rows

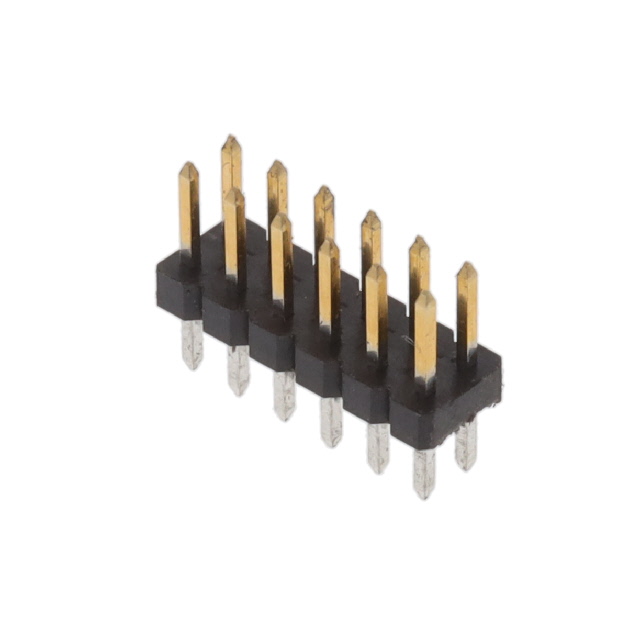

TE Connectivity Raychem Cable Protection 2842138-6	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	12	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2
TE Connectivity Raychem Cable Protection 2842138-7	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	14	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2

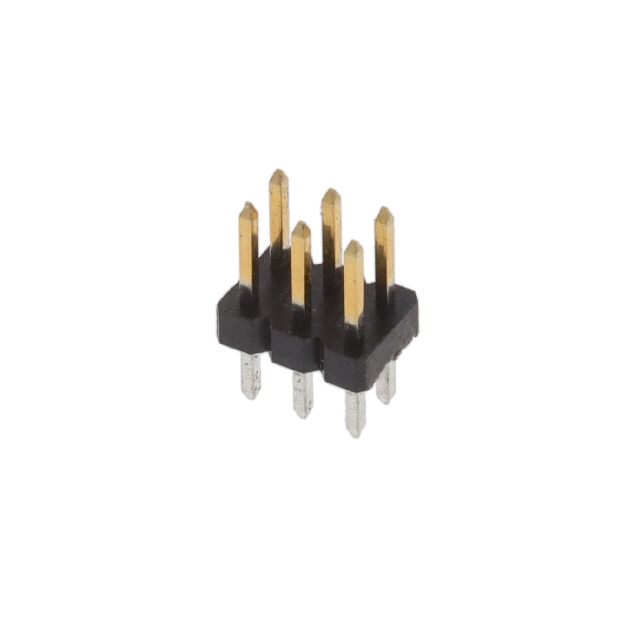

TE Connectivity Raychem Cable Protection 2842138-3	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	6	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2

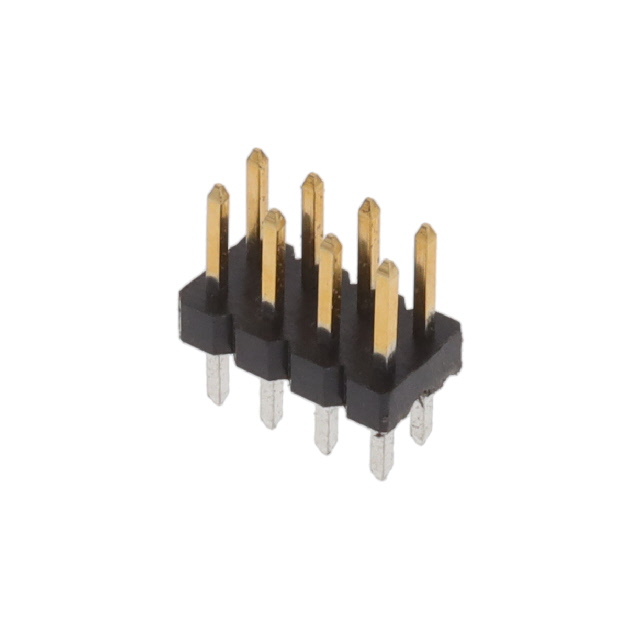

TE Connectivity Raychem Cable Protection 2842138-4	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	8	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2

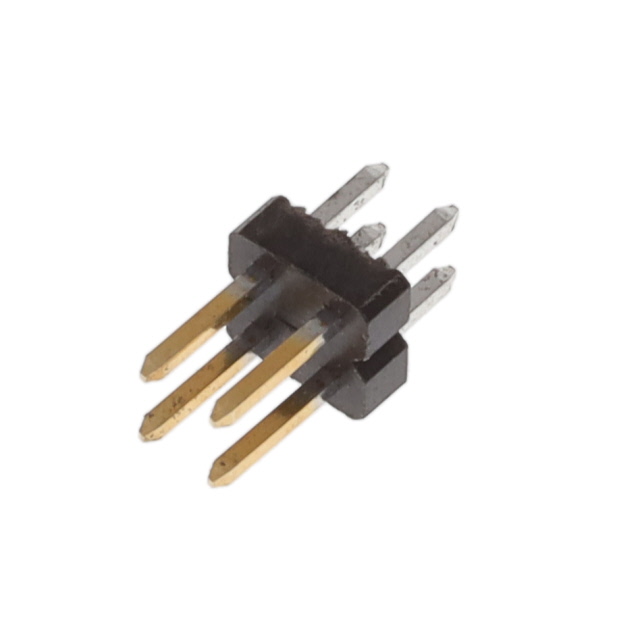

TE Connectivity Raychem Cable Protection 2842138-2	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	4	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2

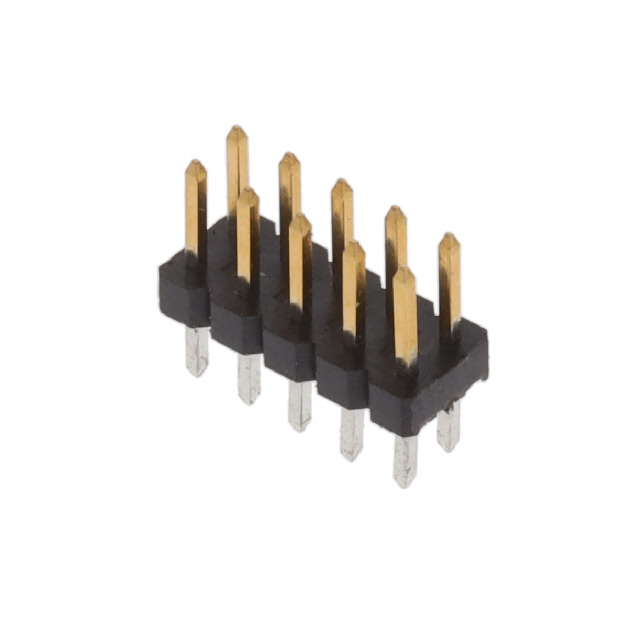

TE Connectivity Raychem Cable Protection 2842138-5	Square	Solder	Thermoplastic	All	Tin	Through Hole	Copper Alloy	Unshrouded	0.11 in	2.79 mm	Push-Pull	3.94 µin	0.1 µm	1.5 mm	0.059 "	2 A	Black	0.079 in	2 mm	10	2 çm	78.7 çin	4 mm	0.157 in	Breakaway Header	Male Pin	125 °C	-40 °C	8.3 mm	0.327 in	125 VAC	0.079 in	2 mm	Gold	UL94 V-0	2
