BFB0312 Series

Catalog

FAN BLOWER 30X10MM 12VDC WIRE

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Current Rating (Amps)	Material - Frame	Weight	Weight	Noise	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Fan Type	Size / Dimension [x]	Size / Dimension [z]	Bearing Type	Power (Watts)	Static Pressure	Static Pressure	Air Flow	Air Flow	Voltage - Rated	RPM	Width [y]	Approval Agency

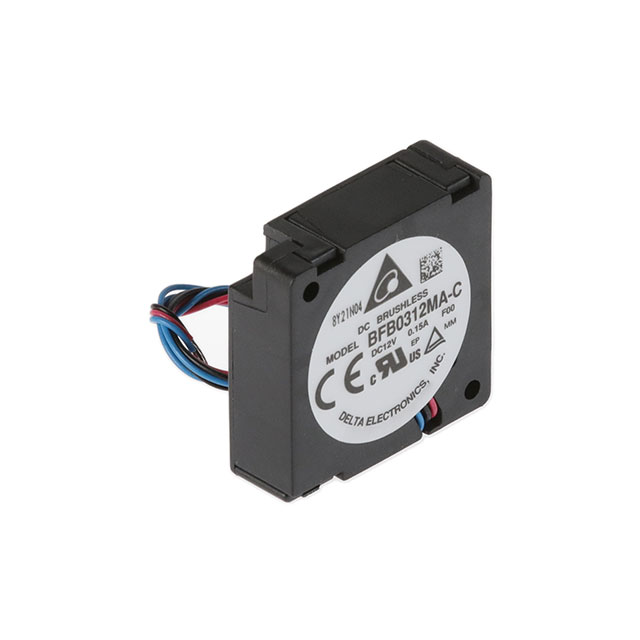

Delta Electronics BFB0312MA-C	Plastic	10.8 VDC	13.2 VDC	30000 Hrs	50 mA	Plastic	10.43 g	0.023 lb	26 dB	70 °C	-10 °C	2 Wire Leads	Blower	30 mm	30 mm	Ball	600 mW	0.206 in H2O	51.3 Pa	1.2 CFM	0.034 m³/min	12 VDC	6500 RPM	10 mm	CE cURus TUV

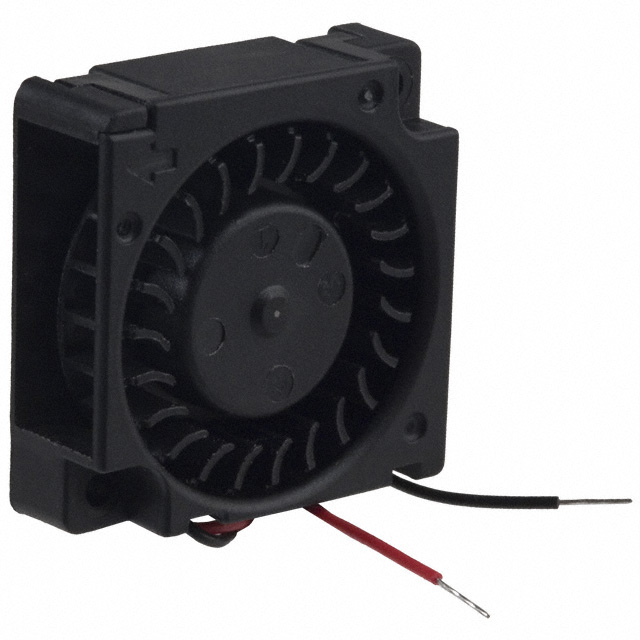

Delta Electronics BFB0312HA-A	Plastic	7 V	13.2 VDC	30000 Hrs	60 mA	Plastic	10.43 g	0.023 lb	29 dB(A)	70 °C	-10 °C	2 Wire Leads	Blower	30 mm	30 mm	Ball	720 mW	0.285 in H2O	71 Pa	1.5 CFM	0.042 m³/min	12 VDC	7500 RPM	10 mm	CE CSA UL VDE

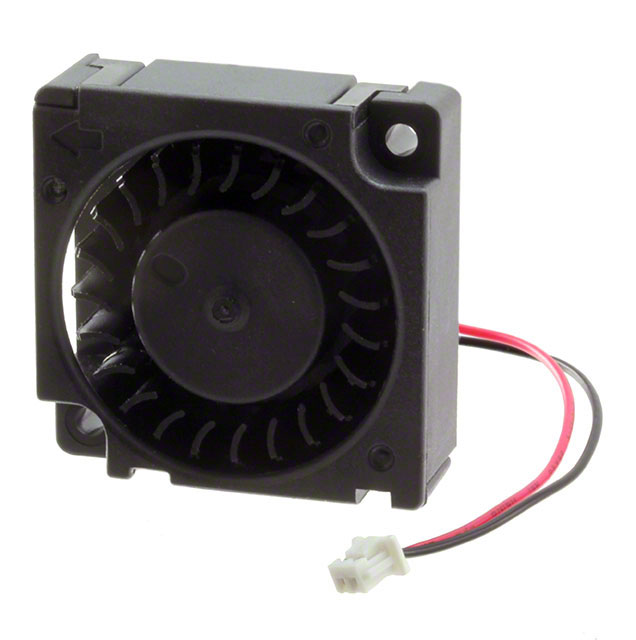

Delta Electronics BFB0312HA-A116	Plastic	7 V	13.2 VDC	30000 Hrs	60 mA	Plastic	10.43 g	0.023 lb	29 dB(A)	70 °C	-10 °C	2 Position Rectangular Connector	Blower	30 mm	30 mm	Ball	720 mW	0.285 in H2O	71 Pa	1.5 CFM	0.042 m³/min	12 VDC	7500 RPM	10 mm	CE CSA UL VDE
Delta Electronics BFB0312LA-C	Plastic	10.8 VDC	13.2 VDC	30000 Hrs	40 mA	Plastic	10.43 g	0.023 lb	24 dB	70 °C	-10 °C	2 Wire Leads	Blower	30 mm	30 mm	Ball	0.48 W	0.144 in H2O	35.9 Pa	1.1 CFM	0.031 m³/min	12 VDC	5500 RPM	10 mm	CE cURus TUV
