PIM60 Series
Manufacturer: PULS, LP
Beta
⌘K

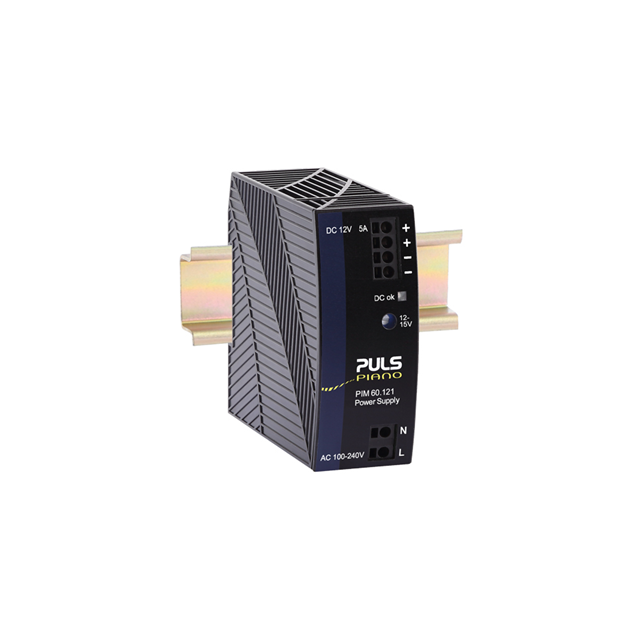

AC/DC DIN RAIL SUPPLY 12V 60W
| Part | Power (Watts) | Efficiency | Voltage - Output 1 | Number of Outputs | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Input Type | Applications | Standard Number | Features | Current - Output (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 PULS, LP | 60 W | 90.7 % | 12 V | 1 | 90 VAC | 264 VAC | AC | ITE (Commercial) Laboratory | 61010-1 62368-1 | Adjustable Output PFC Universal Input | 5 A | 70 °C | -10 °C | CB CE cULus | 1.42 in | 90 mm | 91 mm | 3.58 in | 3.54 " | 36 mm |
 PULS, LP | 60 W | 90.7 % | 12 V | 1 | 90 VAC | 264 VAC | AC | ITE (Commercial) Laboratory | 61010-1 62368-1 | Adjustable Output PFC Universal Input | 5 A | 70 °C | -10 °C | CB CE cULus EAC | 1.42 in | 90 mm | 91 mm | 3.58 in | 3.54 " | 36 mm |
