LQH32PZ Series

Catalog

FIXED IND

Part	Current - Saturation (Isat)	Inductance Frequency - Test	Shielding	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Supplier Device Package	Current Rating (Amps)	Inductance	Material - Core	Tolerance	DC Resistance (DCR) [Max]	Package / Case	Package / Case	Type	Frequency - Self Resonant	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	DC Resistance (DCR)	Supplier Device Package	Supplier Device Package

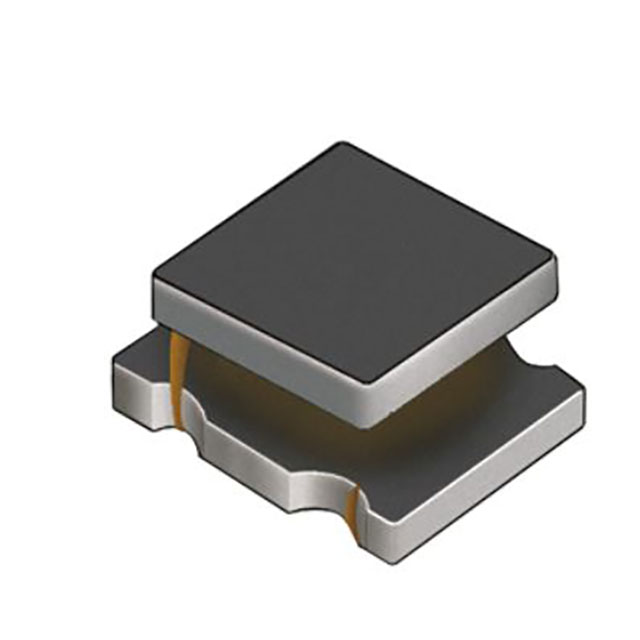

Murata Power Solutions Inc. LQH32PZ6R8NNCL	1.3 A	1 MHz	Shielded	3.2 mm	2.5 mm	0.126 in	0.098 in	85 °C	-40 °C	Surface Mount	1210	1.1 A	6.8 µH	Ferrite	30 %	264 mOhm	1210	3225 Metric	Wirewound	40 MHz	0.067 in	1.7 mm
Murata Power Solutions Inc. LQH32PZ220MNCL
Murata Power Solutions Inc. LQH32PZ100MNCL	1 A	1 MHz	Shielded	3.2 mm	2.5 mm	0.126 in	0.098 in	105 ░C	-40 °C	Surface Mount		900 mA	10 µH	Ferrite	20 %		Nonstandard		Drum Core Wirewound	30 MHz	0.067 in	1.7 mm	AEC-Q200	354 mOhm	1210	3225
Murata Power Solutions Inc. LQH32PZR47NN0L
Murata Power Solutions Inc. LQH32PZ330MN0L
Murata Power Solutions Inc. LQH32PZ1R0NN0L
Murata Power Solutions Inc. LQH32PZ4R7NN0L
Murata Power Solutions Inc. LQH32PZ3R3NN0L
Murata Power Solutions Inc. LQH32PZ1R5NNCL
Murata Power Solutions Inc. LQH32PZ2R2NNCL	2 A	1 MHz	Shielded	3.2 mm	2.5 mm	0.126 in	0.098 in	105 ░C	-40 °C	Surface Mount	1210	1.85 A	2.2 µH	Ferrite	30 %		Nonstandard		Drum Core Wirewound		0.067 in	1.7 mm	AEC-Q200	64 mOhm
