CLU028 Series

Catalog

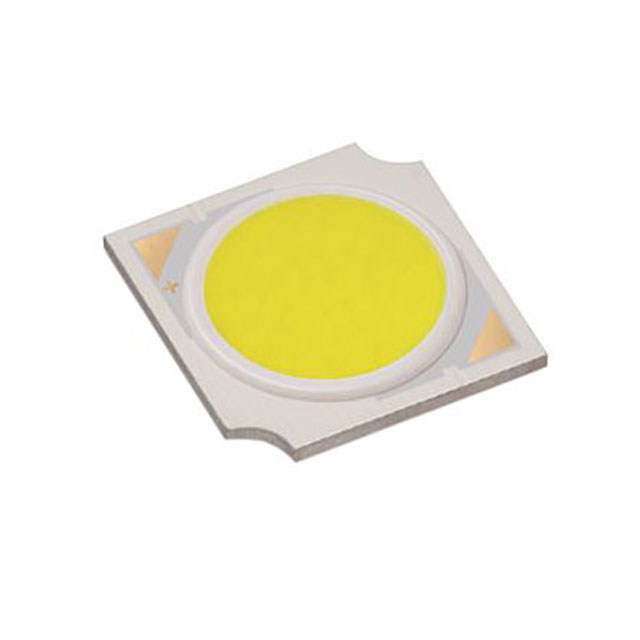

LED COB CLU028 COOL WHT SQ 6500K

Part	Lens Type	Color	Light Emitting Surface (LES) [diameter]	Luminous Flux @ Current/Temperature	CRI (Color Rendering Index)	CCT (K)	Size / Dimension [y]	Size / Dimension [x]	Configuration	Type	Height [z]	Temperature - Test	Lumens/Watt @ Current - Test	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Current - Test	CCT (K)
Citizen Finedevice Co Ltd CLU028-1201C4-653M2K1	Flat	Cool White	9.8 mm	496 lm	80	6500 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	159 lm/W	230 mA	34.6 V	90 mA
Citizen Finedevice Co Ltd CLU028-1201C4-50AL7K3	Flat	Cool White	9.8 mm	516 lm	70	5000 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	166 lm/W	230 mA	34.6 V	90 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1202C4-30AL7K3	Flat	Warm White	9.8 mm	970 lm	70	3000 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	156 lm/W	460 mA	34.6 V	180 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1202C4-303H7K4	Flat	Warm White	9.8 mm	691 lm	97	3000 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	111 lm/W	460 mA	34.6 V	180 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1202C4-303M2K1	Flat	Warm White	9.8 mm	918 lm	80	3000 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	147 lm/W	460 mA	34.6 V	180 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1203C4-653M2K1	Flat	Cool White	9.8 mm	1439 lm	80	6500 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	154 lm/W	690 mA	34.6 V	270 mA
Citizen Finedevice Co Ltd CLU028-1204C4-273H5K2	Flat	Warm White	9.8 mm	1399 lm	90	2700 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	112 lm/W	920 mA	34.6 V	360 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1204C4-403H5K2	Flat	Neutral White	9.8 mm	1507 lm	90	4000 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	121 lm/W	920 mA	34.6 V	360 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1204C4-353H5K2	Flat	Warm White	9.8 mm	1490 lm	90	3500 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	120 lm/W	920 mA	34.6 V	360 mA	3-Step MacAdam Ellipse
Citizen Finedevice Co Ltd CLU028-1202C4-273H5K2	Flat	Warm White	9.8 mm	726 lm	90	2700 K	13.5 mm	13.5 mm	Square	Chip On Board (COB)	1.4 mm	85 °C	117 lm/W	460 mA	34.6 V	180 mA	3-Step MacAdam Ellipse
