7007-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

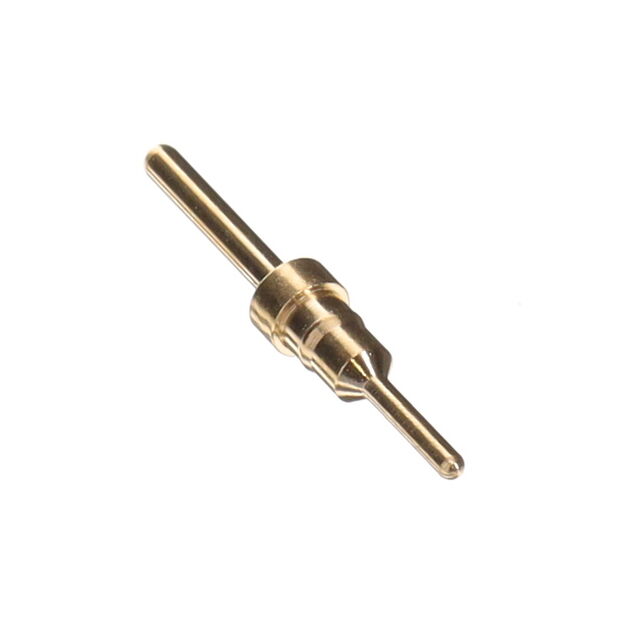

CONN PC PIN CIRC
| Part | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish | Terminal Type | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Length - Overall [x] | Length - Overall [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Insulation | Mounting Type | Terminal Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.072 " | 1.83 mm | Press-Fit | 1.45 mm | 0.057 in | Gold | PC Pin | 0.211 " | 5.36 mm | Brass Alloy | 0.438 in | 11.13 mm | 0.03 in | 0.76 mm | 0.25 Ám | 10 Áin | 0.024 in | 0.61 mm | Non-Insulated | Through Hole | Double End |
Mill-Max Manufacturing Corp. | 0.072 " | 1.83 mm | Press-Fit | 1.45 mm | 0.057 in | Tin | PC Pin | 0.211 " | 5.36 mm | Brass Alloy | 0.438 in | 11.13 mm | 0.03 in | 0.76 mm | 5.08 Ám | 200 Áin | 0.024 in | 0.61 mm | Non-Insulated | Through Hole | Double End |
 Mill-Max Manufacturing Corp. | 0.072 " | 1.83 mm | Press-Fit | 1.45 mm | 0.057 in | Gold | PC Pin | 0.211 " | 5.36 mm | Brass Alloy | 0.438 in | 11.13 mm | 0.03 in | 0.76 mm | 0.25 Ám | 10 Áin | 0.024 in | 0.61 mm | Non-Insulated | Through Hole | Double End |
