9WV1212 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

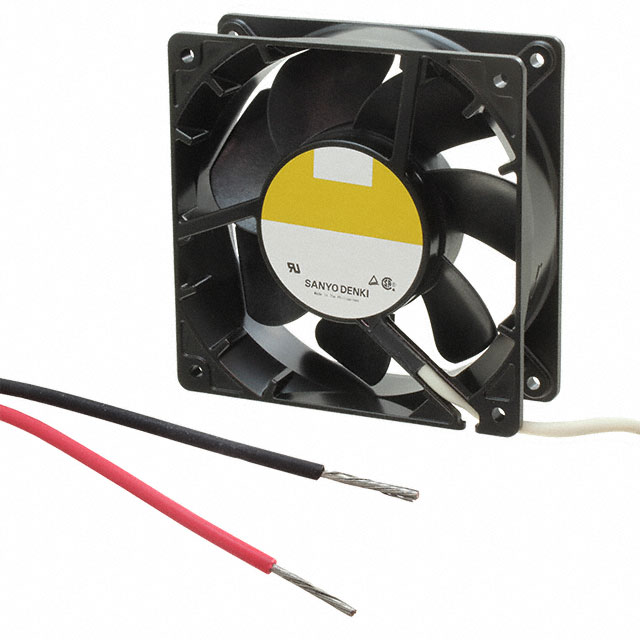

FAN AXIAL 120X38MM 12VDC WIRE
| Part | Current Rating (Amps) | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Power (Watts) | Width [y] | Bearing Type | Weight [custom] | Weight [custom] | Noise | RPM | Air Flow | Air Flow | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Fan Type | Size / Dimension [z] | Size / Dimension [x] | Voltage - Rated | Approval Agency | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 3 A | Aluminum | 10.2 VDC | 13.8 VDC | Plastic | 36 W | 38 mm | Ball | 0.97 lb | 440 g | 64 dB(A) | 6400 RPM | 224 CFM | 6.27 mł/min | 2 Wire Leads | -20 ░C | 70 °C | IP68 - Dust Tight Waterproof | Tubeaxial | 120 mm | 120 mm | 12 VDC | CSA TUV UL | 361.2 Pa | 1.45 in H2O |
