9910 Series

Catalog

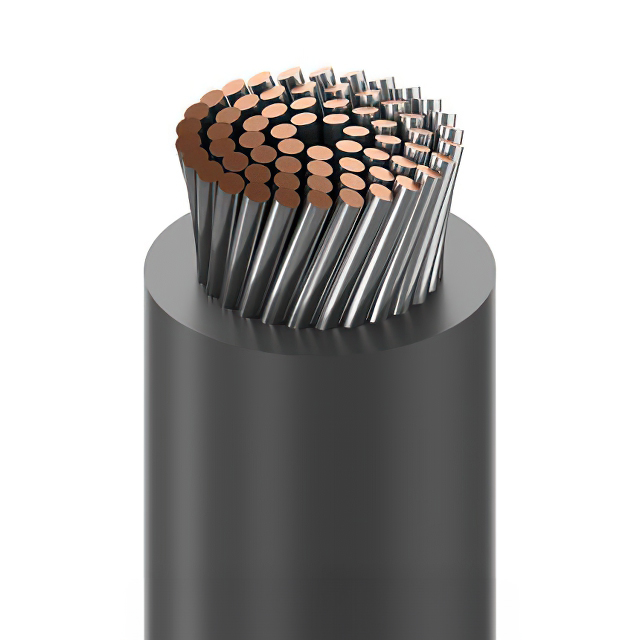

HOOK-UP STRND 10AWG WHITE

Part	Conductor Material	Cable Type	Jacket (Insulation) Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Ratings	Length	Length
Belden Inc. 9910 009100	Copper Tinned	Hook-Up	Poly-Vinyl Chloride (PVC)	600 V	0.03 in	0.76 mm	100 ft	30.5 m	10 AWG	4.57 mm	0.18 in	28 AWG	65	White	UL Style 1015/1230
Belden Inc. 9910 010100	Copper Tinned	Hook-Up	Poly-Vinyl Chloride (PVC)	600 V	0.03 in	0.76 mm	100 ft	30.5 m	10 AWG	4.57 mm	0.18 in	28 AWG	65	Black	UL Style 1015/1230
Belden Inc. 9910 009250	Copper Tinned	Hook-Up	Poly-Vinyl Chloride (PVC)	600 V	0.03 in	0.76 mm			10 AWG	4.57 mm	0.18 in	28 AWG	65	White	UL Style 1015/1230	76.2 m	250 ft
Belden Inc. 9910 004100	Copper Tinned	Hook-Up	Poly-Vinyl Chloride (PVC)	600 V	0.03 in	0.76 mm	100 ft	30.5 m	10 AWG	4.57 mm	0.18 in	28 AWG	65	Yellow	UL Style 1015/1230
