SFV5R Series

Catalog

CONN FFC BOTTOM 5POS 0.5MM R/A

Part	Actuator Color	Housing Color	Current Rating (Amps)	Number of Positions	Material Flammability Rating	Flat Flex Type	Features	Height Above Board [z]	Height Above Board [z]	Contact Material	Cable End Type	Mounting Type	Connector/Contact Type	Actuator Material	Contact Finish	Termination	Locking Feature	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Housing Material	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]	Mating Cycles	FFC, FCB Thickness

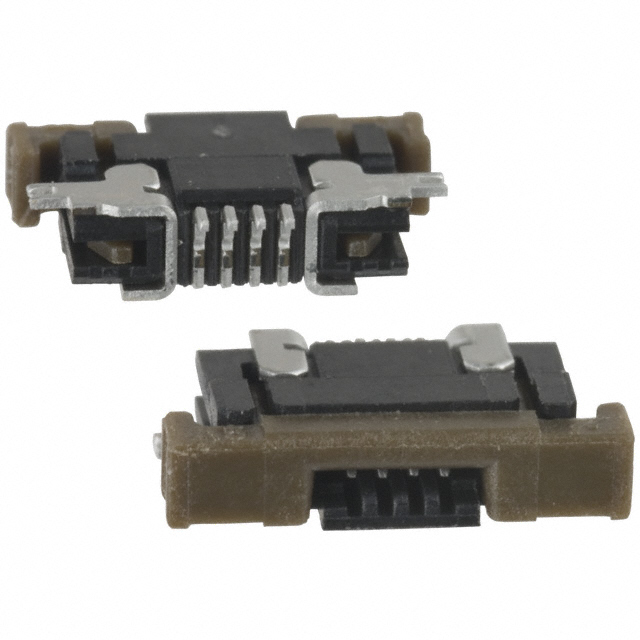

Amphenol ICC (FCI) SFV5R-1STE1LF	Brown	Black	0.5 A	5	UL94 V-0	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	Phosphor Bronze	Straight Tapered	Right Angle Surface Mount	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.33 mm

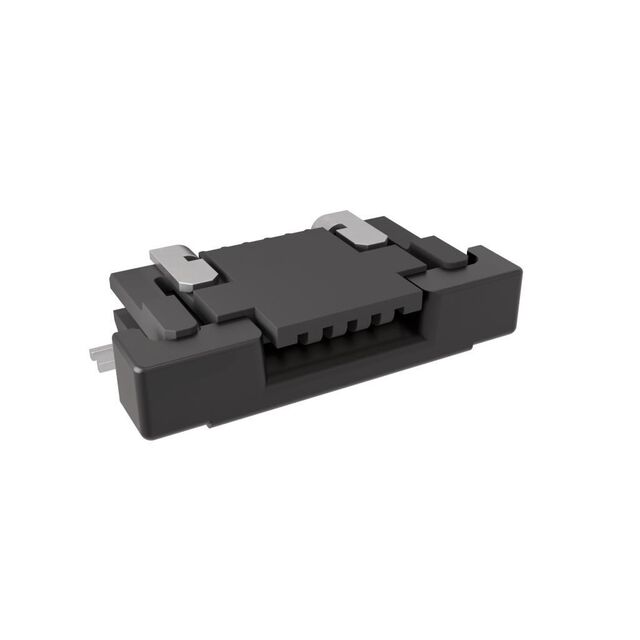

Amphenol ICC (FCI) SFV5R-2STBE1HLF	Brown	Black	0.5 A	5	UL94 V-0	FFC FPC		0.071 in	1.8 mm	Phosphor Bronze	Tapered	Right Angle Surface Mount	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)			20	0.33 mm
Amphenol ICC (FCI) SFV5R-2STE1	Brown	Black	0.5 A	5	UL94 V-0	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	Phosphor Bronze	Straight Tapered	Right Angle Surface Mount	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Tin Alloy	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.33 mm	20
Amphenol ICC (FCI) SFV5R-3STBE1HLF	Brown	Black	0.5 A	5	UL94 V-0	FPC		0.071 in	1.8 mm	Phosphor Bronze	Tapered	Right Angle Surface Mount	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)			20	0.33 mm

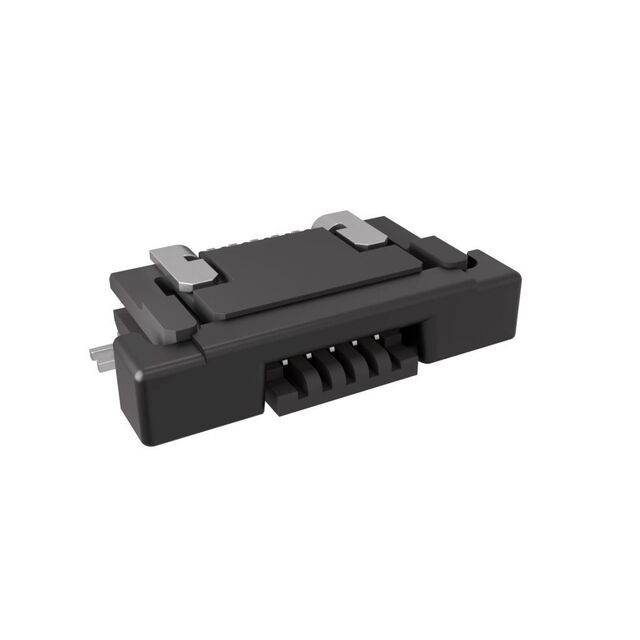

Amphenol ICC (FCI) SFV5R-1STE1HLF	Beige	Black	0.5 A	5	UL94 V-0	FFC FPC		0.071 in	1.8 mm	Phosphor Bronze	Tapered	Right Angle Surface Mount	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)			20	0.3 mm
Amphenol ICC (FCI) SFV5R-3STE1HLF	Black	Black	0.5 A	5	UL94 V-0	FPC	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	Phosphor Bronze	Straight	Right Angle Surface Mount	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)			20	0.3 mm

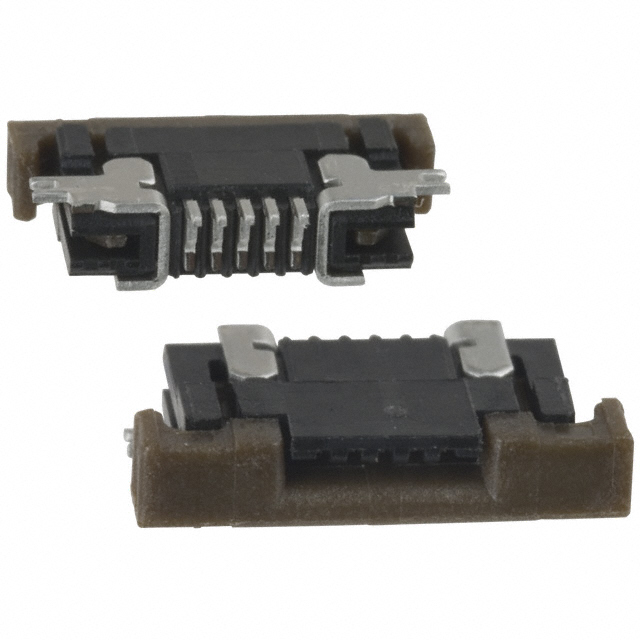

Amphenol ICC (FCI) SFV5R-2STE1LF	Brown	Black	0.5 A	5	UL94 V-0	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	Phosphor Bronze	Straight Tapered	Right Angle Surface Mount	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled	Tin	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Nylon Polyamide (PA)	0.3 mm	0.33 mm
Amphenol ICC (FCI) SFV5R-1STBE1HLF	Brown	Black	0.5 A	5	UL94 V-0	FFC FPC	Solder Retention Zero Insertion Force (ZIF)	0.071 in	1.8 mm	Phosphor Bronze	Tapered	Right Angle Surface Mount	Contacts Bottom	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Gold	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)			20	0.33 mm

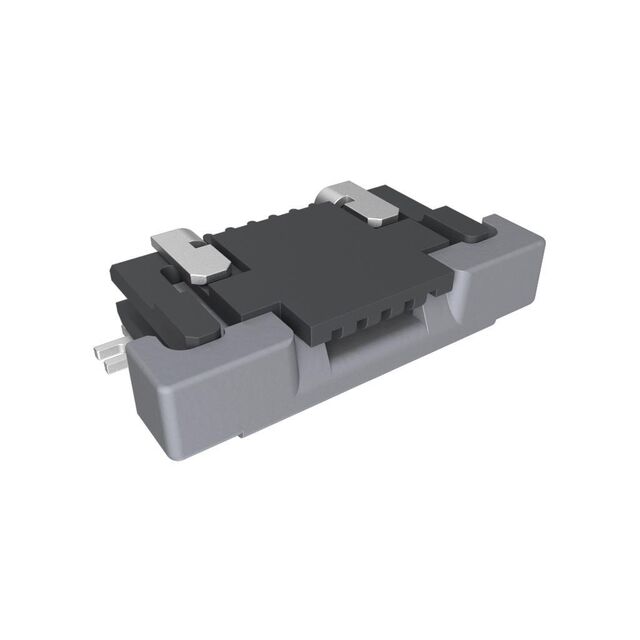

Amphenol ICC (FCI) SFV5R-4STE1HLF	Black	Black	0.5 A	5	UL94 V-0	FPC		0.071 in	1.8 mm	Phosphor Bronze	Straight Tapered	Right Angle Surface Mount	Contacts Top	Polyphenylene Sulfide (PPS) Glass Filled Halogen Free	Tin	Solder	Slide Lock	0.02 "	0.5 mm	-55 C	105 ░C	50 V	Glass Filled Halogen Free Nylon Polyamide (PA)	0.3 mm	0.33 mm	20
