845-016 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 16POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Type	Gender	Contact Finish	Number of Positions/Bay/Row	Termination	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Contact Material	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Color	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Termination Rows	Number of Rows	Features

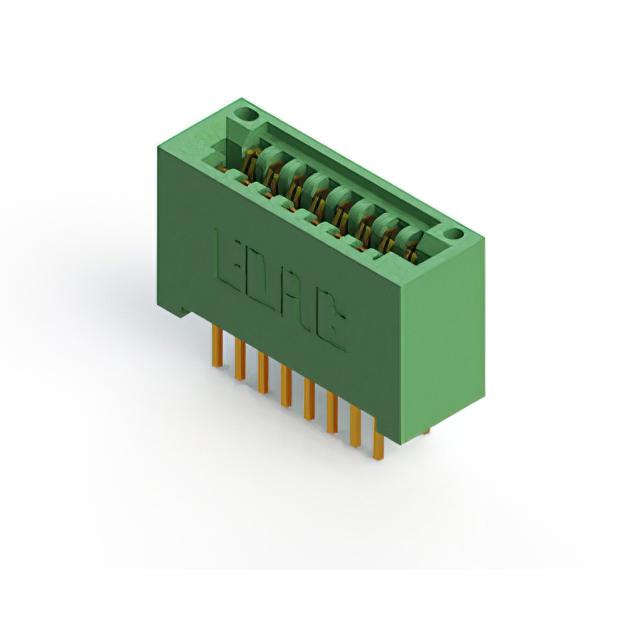

EDAC Inc. 845-016-523-201	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Solder	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16

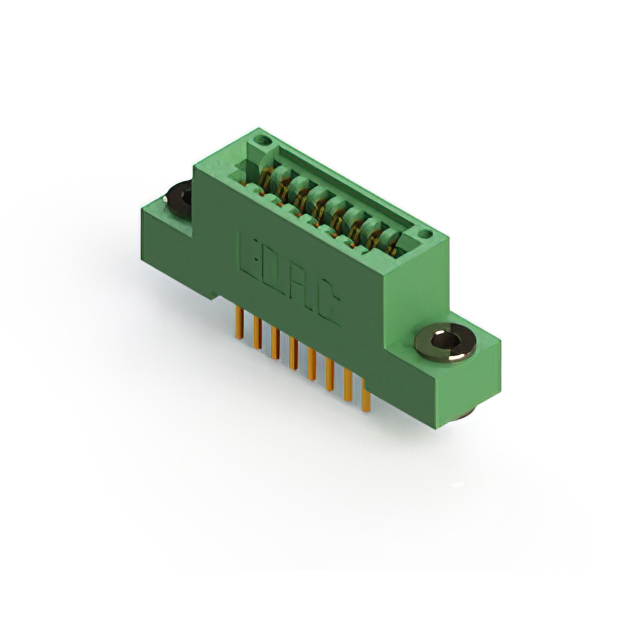

EDAC Inc. 845-016-542-203	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Wire Wrap	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.116 "	Floating Bobbin Flush Mount	2.95 mm

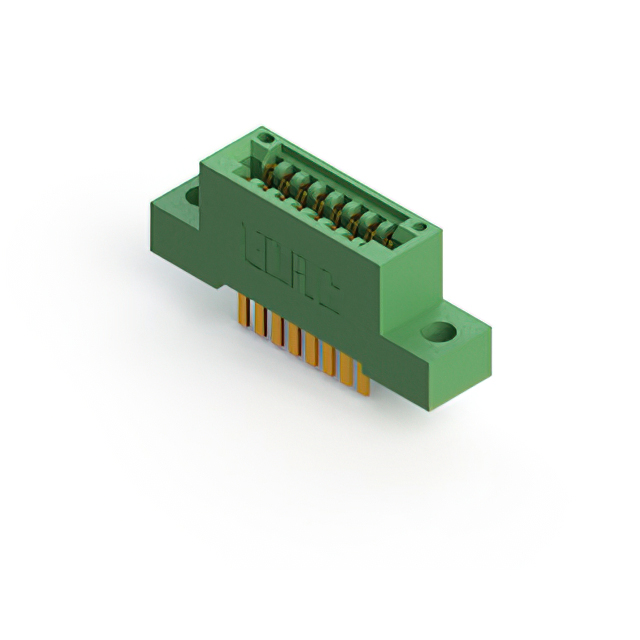

EDAC Inc. 845-016-544-204	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Wire Wrap	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm

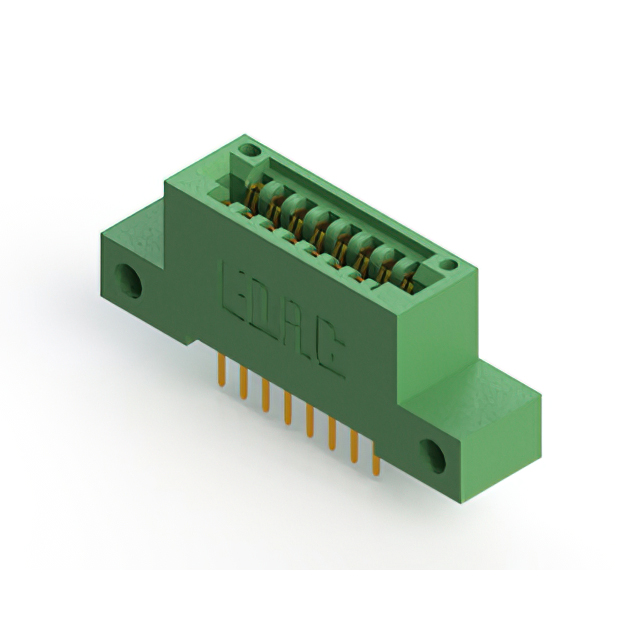

EDAC Inc. 845-016-524-212	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Solder	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.128 "	Flush Mount Side Opening Unthreaded	3.25 mm

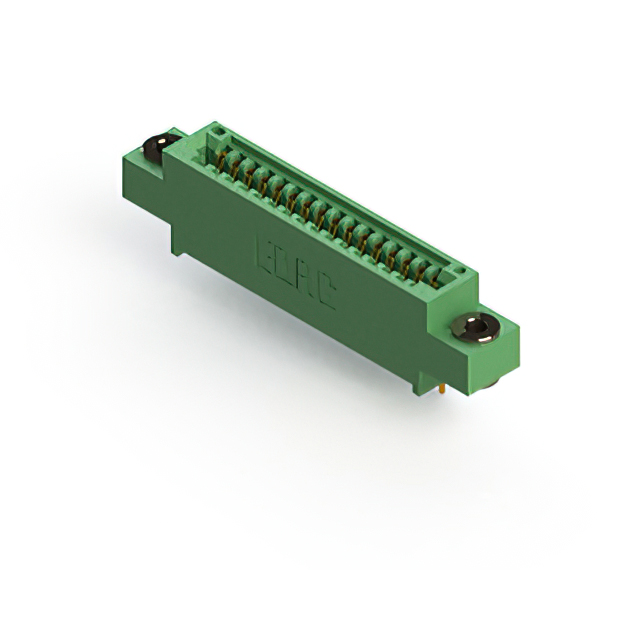

EDAC Inc. 845-016-541-603	Diallyl Phthalate (DAP)		Non Specified - Single Edge	Cantilever	Female	Gold	16	Wire Wrap	Single	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm		Green	125 °C	-40 C	16	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	1	1

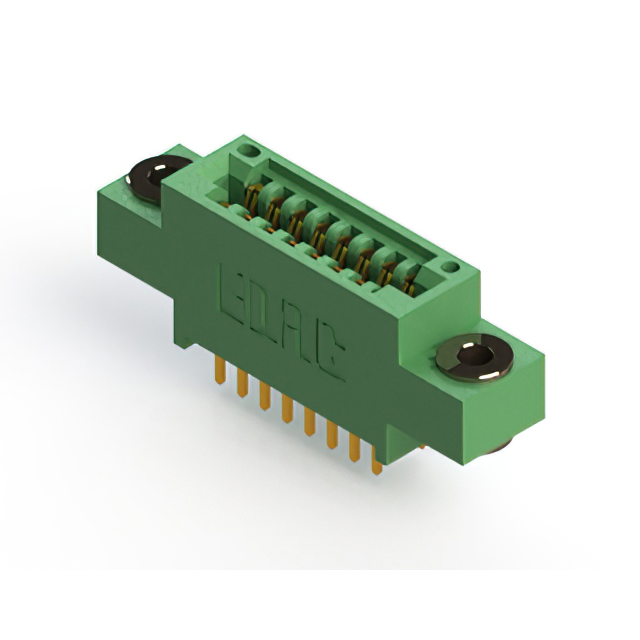

EDAC Inc. 845-016-521-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Solder	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm

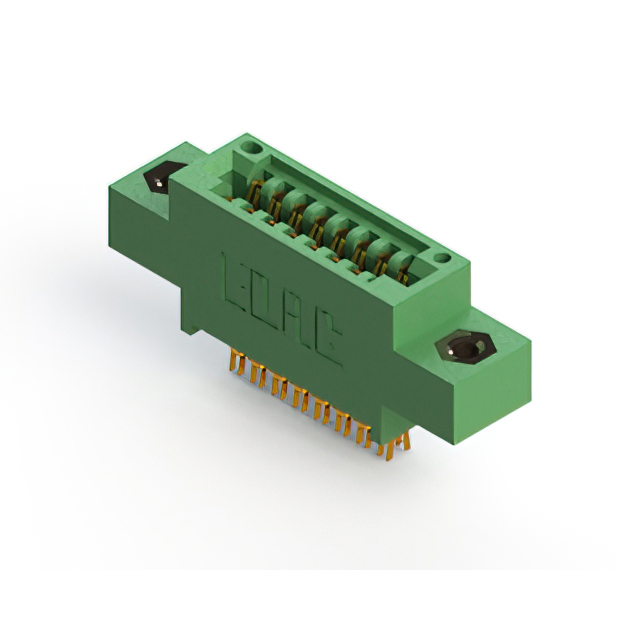

EDAC Inc. 845-016-555-808	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Solder	Dual	0.25 Ám	10 Áin	Board Edge Straddle Mount	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16		4-40 Threaded Insert Top Mount Opening				Card Extender

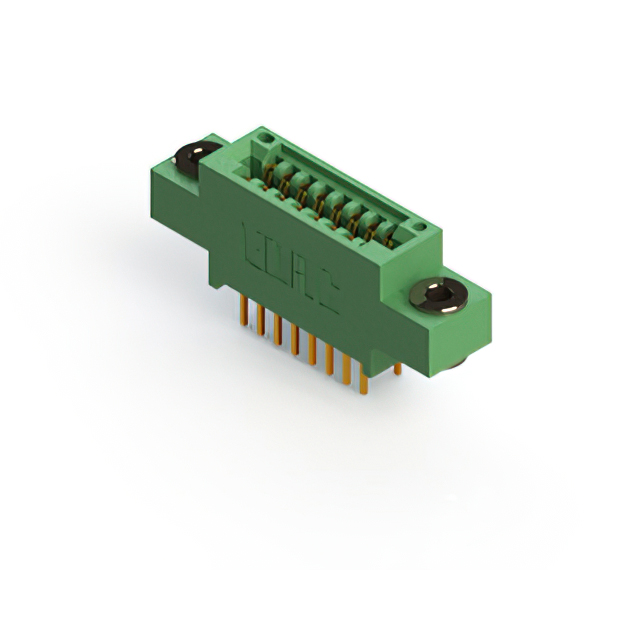

EDAC Inc. 845-016-541-803	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Wire Wrap	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm

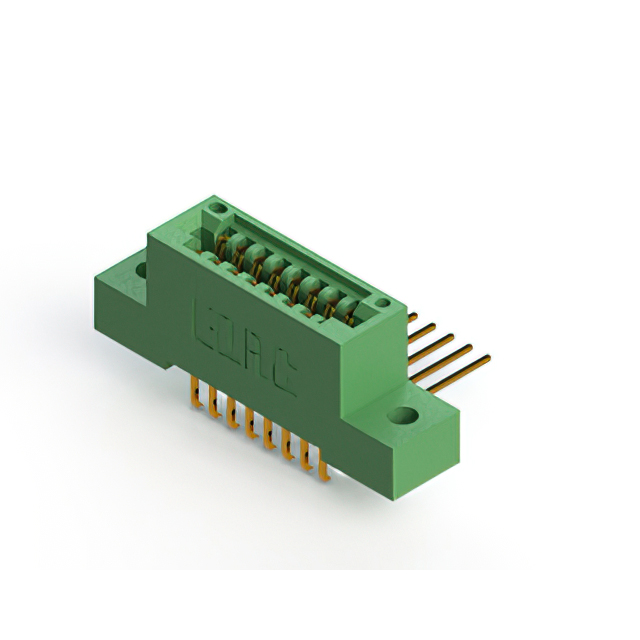

EDAC Inc. 845-016-559-202	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Solder	Dual	0.25 Ám	10 Áin	Right Angle Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm

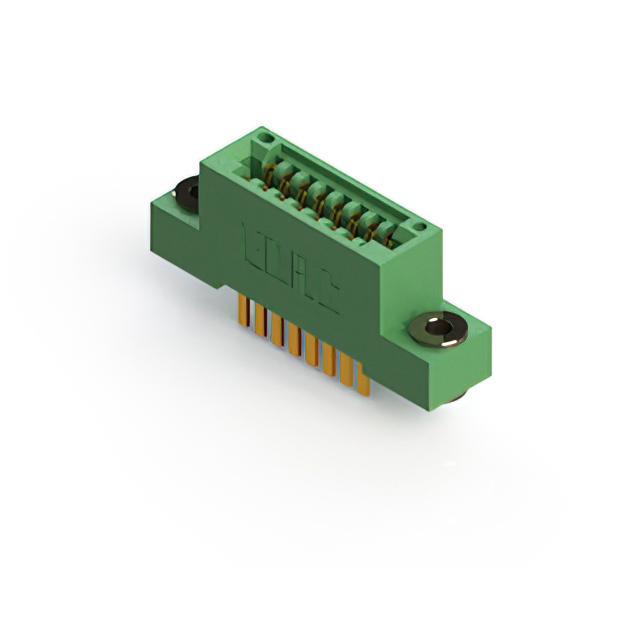

EDAC Inc. 845-016-544-203	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	Female	Gold	8	Wire Wrap	Dual	0.25 Ám	10 Áin	Through Hole	Copper Alloy	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	2	Green	125 °C	-40 C	16	0.116 "	Floating Bobbin Flush Mount	2.95 mm
