745-055 Series
Manufacturer: EDAC Inc.
Beta
⌘K

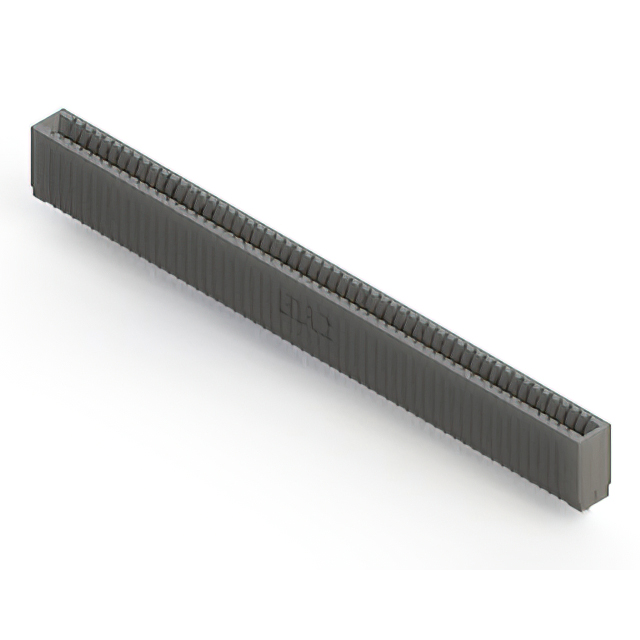

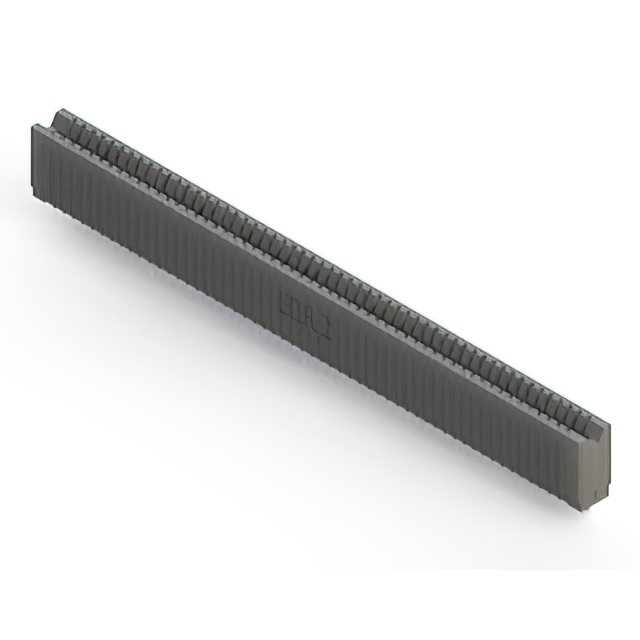

CONN EDGE SINGLE FML 55POS 0.100
| Part | Material - Insulation | Termination Rows | Pitch | Pitch | Read Out | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Gender | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Termination | Contact Type | Color | Mounting Type | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit Wire Wrap | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit Wire Wrap | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
 EDAC Inc. | Polyester Thermoplastic | 1 | 0.1 " | 2.54 mm | Single | 55 | Gold | 30 Áin | 0.76 Ám | 1 | Female | Copper Alloy | -40 C | 105 ░C | Non Specified - Single Edge | Press-Fit | Cantilever | Black | Through Hole | 55 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
