H7HP-A Series

Catalog

COUNTER LCD 6 CHAR 100-240V PNL

Part	Termination Style	Reset	Number of Characters Per Row	Operating Mode	Input Type	Display Characters - Height [z]	Display Characters - Height [z]	Count Rate	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Display Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Type	Ingress Protection

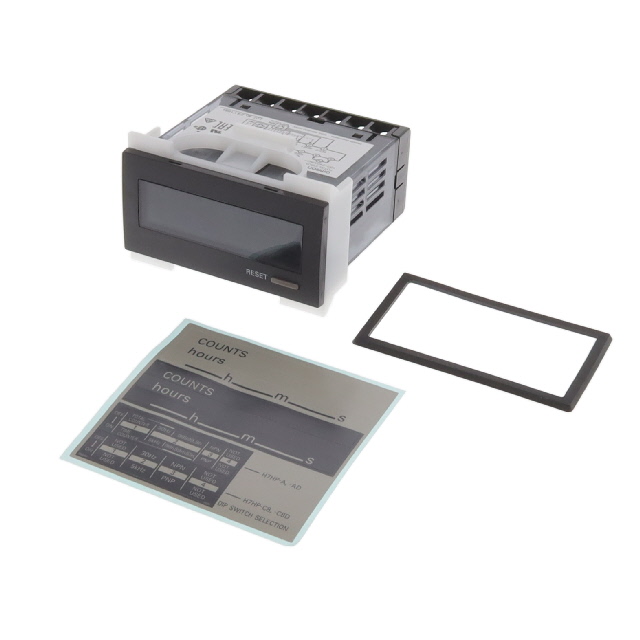

Omron Electronics Inc-EMC Div H7HP-AB	Screw Terminal	External Front Panel	6	Down Individual Up	No Voltage	0.59 in	15 mm	5 kHz 30 Hz	55 °C	-10 °C	68 mm	33 mm	LCD - Red Characters Backlight	100 VAC	240 VAC	Time Counter Totalizer	IP66

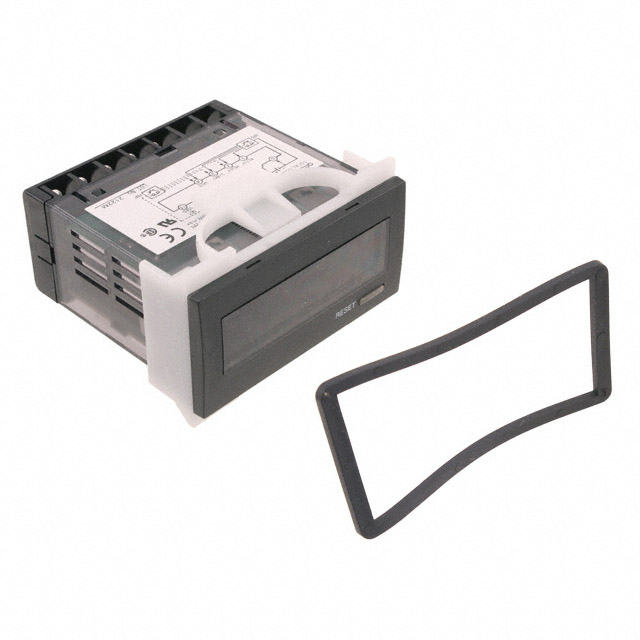

Omron Electronics Inc-EMC Div H7HP-ADB	Screw Terminal	External Front Panel	6	Down Individual Up	No Voltage	0.59 in	15 mm	5 kHz 30 Hz	55 °C	-10 °C	68 mm	33 mm	LCD - Red Characters Backlight	12 V	24 V	Time Counter Totalizer	IP66

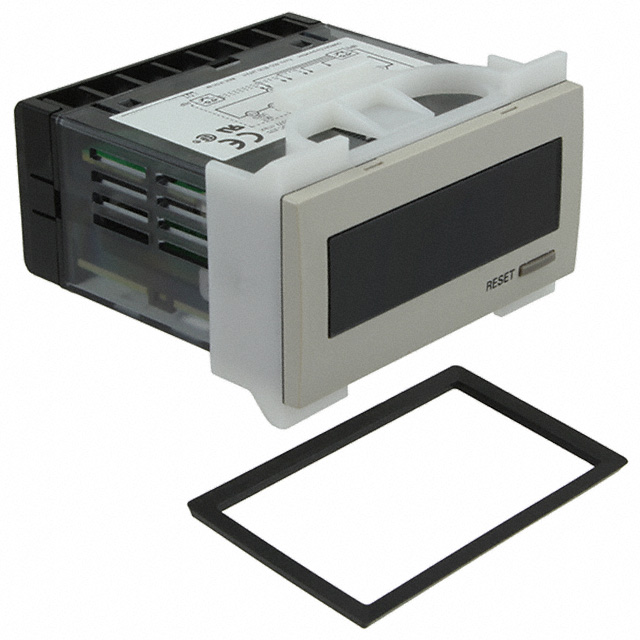

Omron Electronics Inc-EMC Div H7HP-AD	Screw Terminal	External Front Panel	6	Down Individual Up	No Voltage	0.59 in	15 mm	5 kHz 30 Hz	55 °C	-10 °C	68 mm	33 mm	LCD - Red Characters Backlight	12 V	24 V	Time Counter Totalizer	IP66
