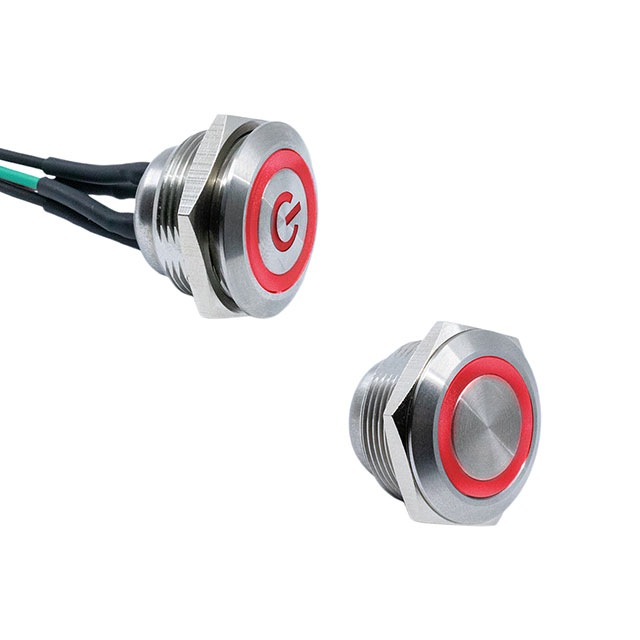

SV7FW3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH PB SPST 2A 36V
| Part | Electrical Life | Illumination Type, Color | Ingress Protection | Type | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Circuit | Actuator Type | Switch Function | Illumination Voltage (Nominal) | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Actuator Marking | Voltage Rating - DC | Color - Actuator/Cap | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 200000 Cycles | Blue LED Red | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | 22.2 mm | 2 A | SPST-NO | Button Flush Round | Off-Mom | 2 VDC 3.1 VDC | -20 ░C | 70 °C | Wire Leads | No Marking | 36 VDC | Silver | Panel Mount Front |
E-Switch | 200000 Cycles | Green LED | IP67 - Dust Tight Waterproof | Anti-Vandal Illuminated | 22.2 mm | 2 A | SPST-NO | Button Flush Round | Off-Mom | 3.1 VDC | -20 ░C | 70 °C | Wire Leads | Power Symbol | 36 VDC | Silver | Panel Mount Front |
