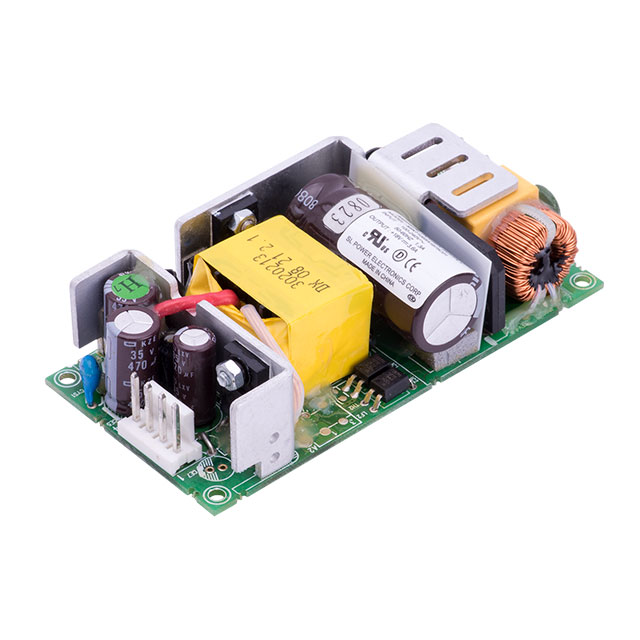

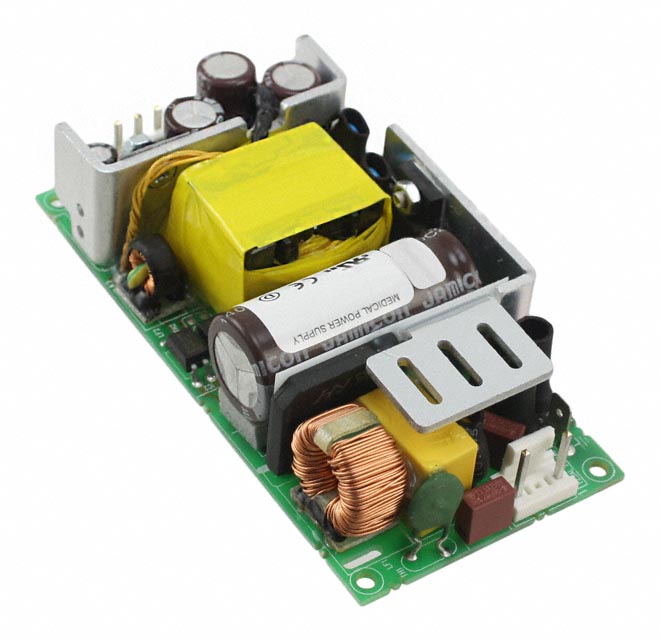

MINT1065 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC CONVERTER 15V 65W

Part	Applications	Size / Dimension	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Current - Output 1	Operating Temperature [Max]	Features	Voltage - Input [Max]	Voltage - Input [Min]	Type	Voltage - Output 1	Efficiency	Number of Outputs	Voltage - Isolation	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]
SL POWER / Advanced Energy MINT1065D1575K01	Medical	29.7 mm 50.8 mm 101.6 mm	1.17 "	2 in	4 "	CE cURus	4.33 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	15 V	90 %	1	4000 V	Chassis Mount
SL POWER / Advanced Energy MINT1065A2475C01	ITE (Commercial) Medical		1.02 "	2 in	4 "	CE cURus	2 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	24 V	90 %	1	4000 V	Chassis Mount	50.8 mm	101.6 mm	26 mm
SL POWER / Advanced Energy MINT1065A1275C01	ITE (Commercial) Medical		1.02 "	2 in	4 "	CE cURus	4 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	12 V	90 %	1	4000 V	Chassis Mount	50.8 mm	101.6 mm	26 mm
SL POWER / Advanced Energy MINT1065D1875K01	Medical	29.7 mm 50.8 mm 101.6 mm	1.17 "	2 in	4 "	CE cURus	3.5 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	18 V	90 %	1	4000 V	Chassis Mount
SL POWER / Advanced Energy MINT1065D1275K01	Medical	29.7 mm 50.8 mm 101.6 mm	1.17 "	2 in	4 "	CE cURus	5.25 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	12 V	90 %	1	4000 V	Chassis Mount
SL POWER / Advanced Energy MINT1065A1875C01	ITE (Commercial) Medical		1.02 "	2 in	4 "	CE cURus	2.66 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	18 V	90 %	1	4000 V	Chassis Mount	50.8 mm	101.6 mm	26 mm
SL POWER / Advanced Energy MINT1065D2475K01	Medical	29.7 mm 50.8 mm 101.6 mm	1.17 "	2 in	4 "	CE cURus	2.7 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	24 V	90 %	1	4000 V	Chassis Mount
SL POWER / Advanced Energy MINT1065A4875C01	ITE (Commercial) Medical		1.02 "	2 in	4 "	CE cURus	1 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	48 V	90 %	1	4000 V	Chassis Mount	50.8 mm	101.6 mm	26 mm
SL POWER / Advanced Energy MINT1065D4875K01	Medical	29.7 mm 50.8 mm 101.6 mm	1.17 "	2 in	4 "	CE cURus	1.35 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	48 V	90 %	1	4000 V	Chassis Mount
SL POWER / Advanced Energy MINT1065A1575C01	ITE (Commercial) Medical		1.02 "	2 in	4 "	CE cURus	3.2 A	70 °C	Universal Input	264 VAC	90 VAC	Open Frame	15 V	90 %	1	4000 V	Chassis Mount	50.8 mm	101.6 mm	26 mm
