TL6105 Series

Manufacturer: E-Switch

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Mechanical Life	Illumination	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Termination Style	Circuit	Actuator Type	Operating Force	Features	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Actuator Orientation

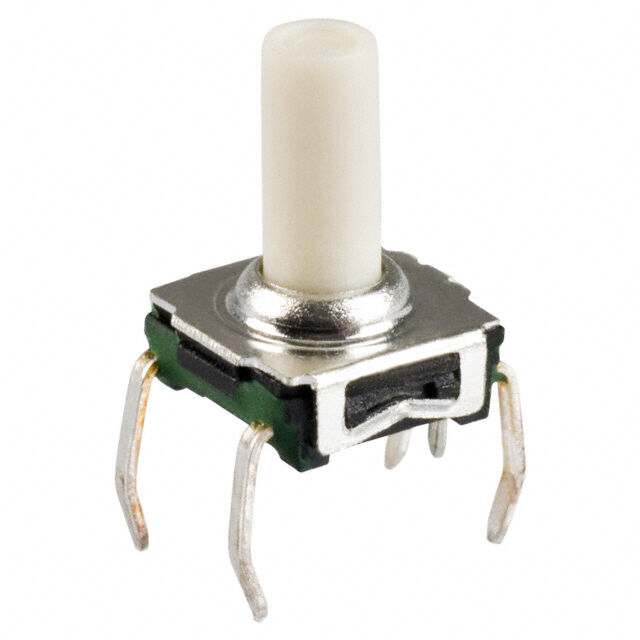

E-Switch TL6105DF300QP	0.5 mm	Polyamide (PA) Nylon	50000 Cycles	Non-Illuminated	7.2 mm	7.2 mm	85 °C	-40 C	Through Hole	Off-Mom	PC Pin	SPST-NO	Standard	300 gf	Grounding Pin Sealed - Fully	0.05 A 50 VDC	10 mm	Top Actuated

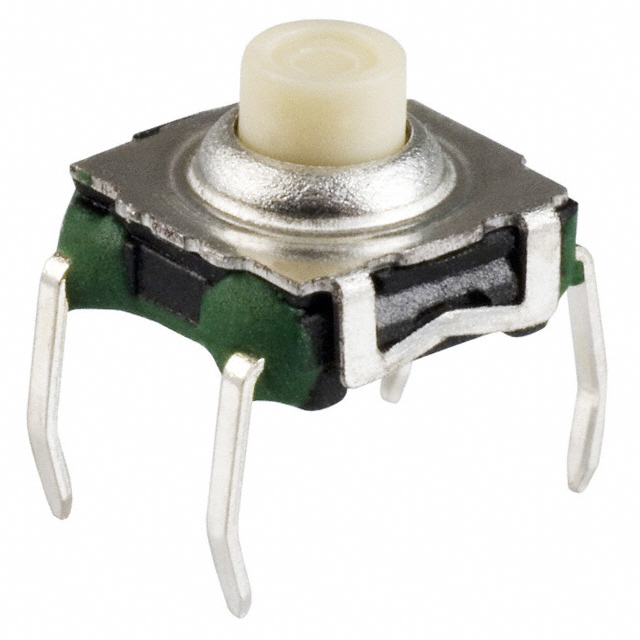

E-Switch TL6105BF160QP	0.5 mm	Polyamide (PA) Nylon	80000 Cycles	Non-Illuminated	7.2 mm	7.2 mm	85 °C	-40 C	Through Hole	Off-Mom	PC Pin	SPST-NO	Standard	160 gf	Grounding Pin Sealed - Fully	0.05 A 50 VDC	5.2 mm	Top Actuated
E-Switch TL6105DF130QP	0.5 mm	Polyamide (PA) Nylon	80000 Cycles	Non-Illuminated	7.2 mm	7.2 mm	85 °C	-40 C	Through Hole	Off-Mom	PC Pin	SPST-NO	Standard	130 gf	Grounding Pin Sealed - Fully	0.05 A 50 VDC	10 mm	Top Actuated

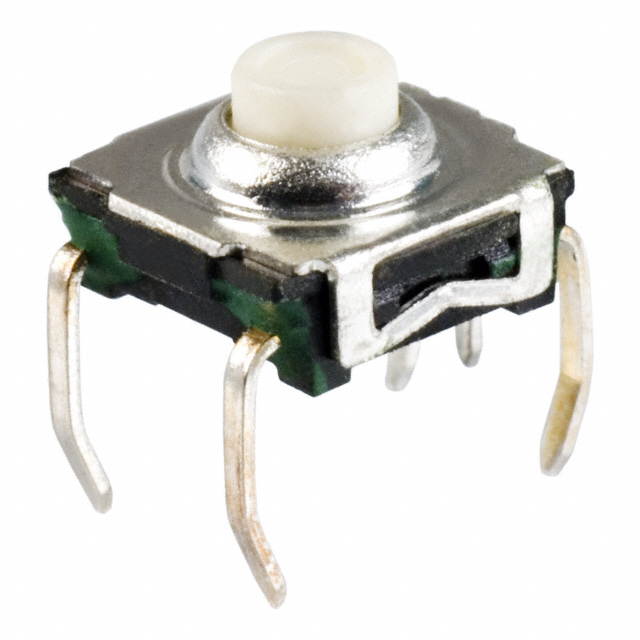

E-Switch TL6105AF160QP	0.25 mm	Polyamide (PA) Nylon	300000 Cycles	Non-Illuminated	7.2 mm	7.2 mm	85 °C	-40 C	Through Hole	Off-Mom	PC Pin	SPST-NO	Standard	160 gf	Grounding Pin Sealed - Fully	0.05 A 50 VDC	4.7 mm	Top Actuated
