141-0701 Series
Manufacturer: Cinch Connectivity Solutions Johnson
Beta
⌘K

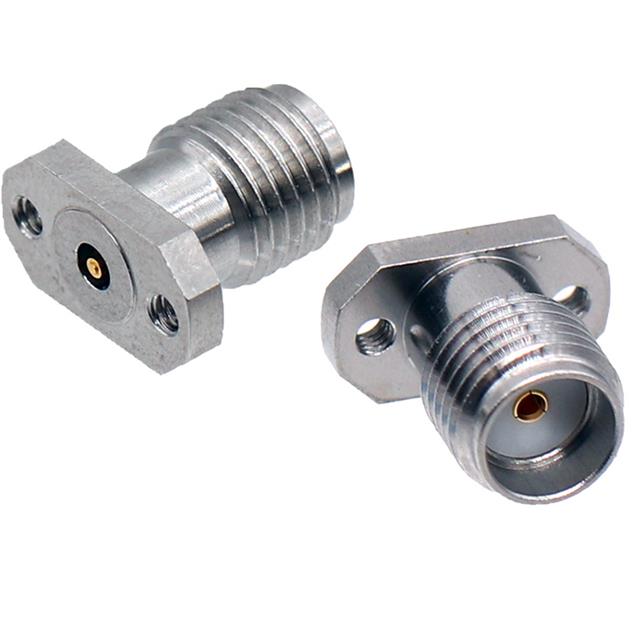

SMA VERTICAL LAUNCH JACK CONNECT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Body Material | Mating Cycles | Center Contact Plating | Dielectric Material | Shield Termination | Connector Style | Connector Type | Fastening Type | Impedance | Frequency - Max [Max] | Housing Color | Contact Termination | Number of Ports | Mounting Type | Mounting Feature | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Johnson | -65 ░C | 165 °C | 335 V | Stainless Steel | 500 | Gold | Polytetrafluoroethylene (PTFE) | Screw | SMA | Female Socket Jack | Threaded | 50 Ohms | 26.5 GHz | Silver | Compression | 1 | Panel Mount | Flange | Beryllium Copper |
