ATS-P1 Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

Catalog

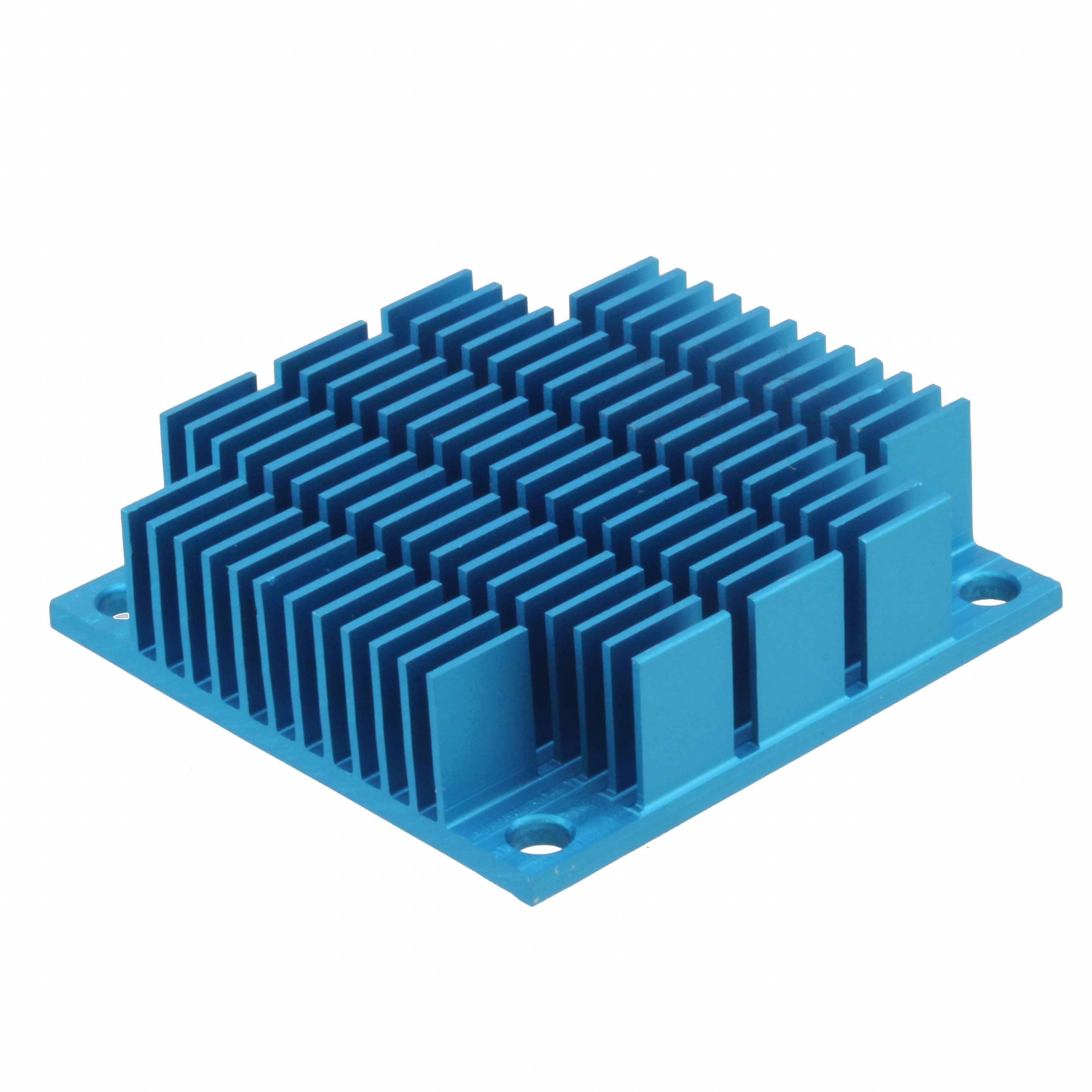

HEATSINK 45X45X12MM XCUT T412

...

Part	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Width	Width	Package Cooled	Attachment Method	Length [x]	Length [x]	Material	Material Finish	Type	Shape	Width [y]	Width [y]	Fin Height [z]	Fin Height [z]	Length	Length	Fin Height [custom]	Fin Height [custom]	Shape [custom]	Shape [custom]	Length	Width [x]	Width [x]
Advanced Thermal Solutions Inc. ATS-P1-198-C3-R0	0.472 in	12 mm	9.21 °C/W	1.772 in	45 mm	ASIC BGA CPU LGA	Push Pin	1.772 in	45 mm	Aluminum	Blue Anodized	Top Mount	Fins Square
Advanced Thermal Solutions Inc. ATS-P1-179-C3-R0			4.07 °C/W			ASIC BGA CPU LGA	Push Pin	1.378 "		Aluminum	Blue Anodized	Top Mount	Fins Square	1.378 "	35 mm	1.181 in	30 mm	35 mm

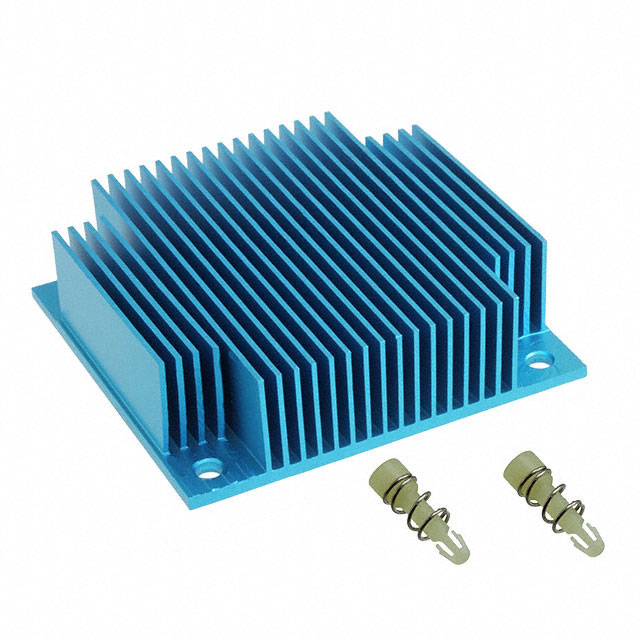

Advanced Thermal Solutions Inc. ATS-P1-41-C3-R0			10.07 °C/W			ASIC BGA CPU LGA	Push Pin			Aluminum	Blue Anodized	Top Mount		2.4 "	60.96 mm			2.28 in	57.9 mm	17.78 mm	0.7 in	Rectangular	Fins
Advanced Thermal Solutions Inc. ATS-P1-40-C2-R0			14.56 °C/W			ASIC BGA CPU LGA	Push Pin			Aluminum	Blue Anodized	Top Mount		2.4 "	60.96 mm	0.45 "	11.43 mm	2.28 in	57.9 mm			Rectangular	Fins
Advanced Thermal Solutions Inc. ATS-P1-50-C2-R0			19.03 °C/W			ASIC BGA CPU LGA	Push Pin			Aluminum	Blue Anodized	Top Mount	Fins Square			0.59 in	15 mm	0.03 m						1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-P1-54-C2-R0			7 °C/W			ASIC BGA CPU LGA	Push Pin			Aluminum	Blue Anodized	Top Mount	Fins Square					0.03 m		35 mm	1.378 in			1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-P1-171-C3-R0			7.52 °C/W			ASIC BGA CPU LGA	Push Pin			Aluminum	Blue Anodized	Top Mount	Fins Square			0.79 in	20 mm	0.03 m						1.181 in	30 mm	1.181 in
Advanced Thermal Solutions Inc. ATS-P1-46-C2-R0	0.984 in	25 mm	11.57 °C/W			ASIC BGA CPU LGA	Push Pin	0.984 in		Aluminum	Blue Anodized	Top Mount	Fins Square					25 mm							25 mm	0.984 "
Advanced Thermal Solutions Inc. ATS-P1-119-C3-R0			4.77 °C/W	1.772 in	45 mm	ASIC BGA CPU LGA	Push Pin	1.772 in	45 mm	Aluminum	Blue Anodized	Top Mount	Fins Square			0.79 in	20 mm
Advanced Thermal Solutions Inc. ATS-P1-75-C1-R0			14.95 °C/W			ASIC BGA CPU LGA	Push Pin	0.984 in		Aluminum	Blue Anodized	Top Mount	Fins Square			0.79 in	20 mm	25 mm							25 mm	0.984 "
