09120062 Series

Manufacturer: HARTING

Catalog

HAN BRID-MALE-C + CU-BUS-MODUL- MALE-C ( ROHS COMPLIANT: NA

Part	Housing Material	Color	Material Flammability Rating	Number of Positions [Max]	Number of Positions	Size	Voltage Rating	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Connector Type	Termination Style	Contact Finish	Contact Material	Style	Contents

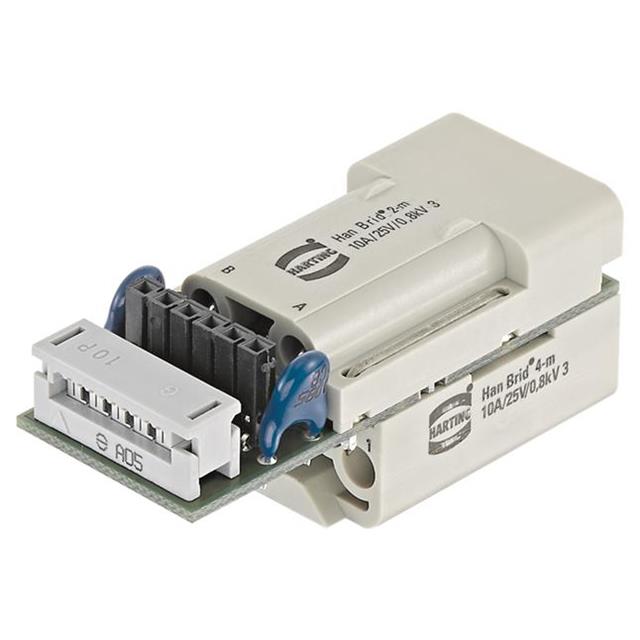

HARTING 09120062611	Polycarbonate (PC)	Gray	UL94 V-0	2 4	Ground	3 A	50 V	10 A	125 °C	-40 C	Male	Insert	Crimp

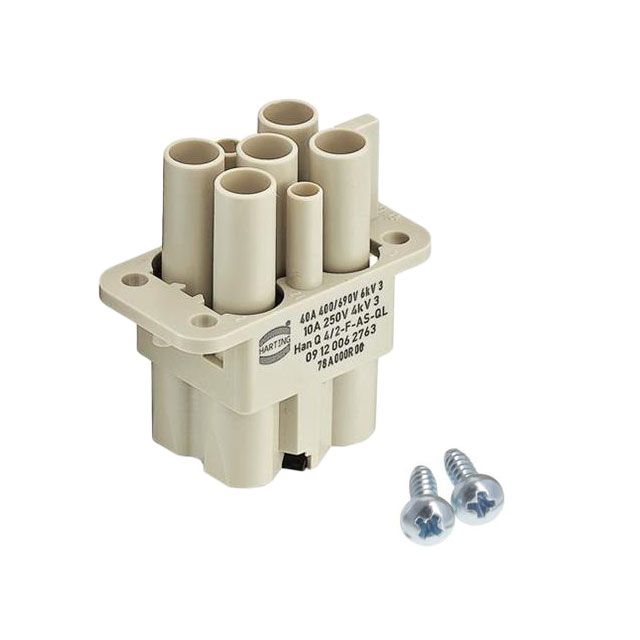

HARTING 09120062765	Polycarbonate (PC)	Gray	UL94 V-0		4+Ground				125 °C	-40 C	Female	Insert	Screw	Silver	Copper Alloy

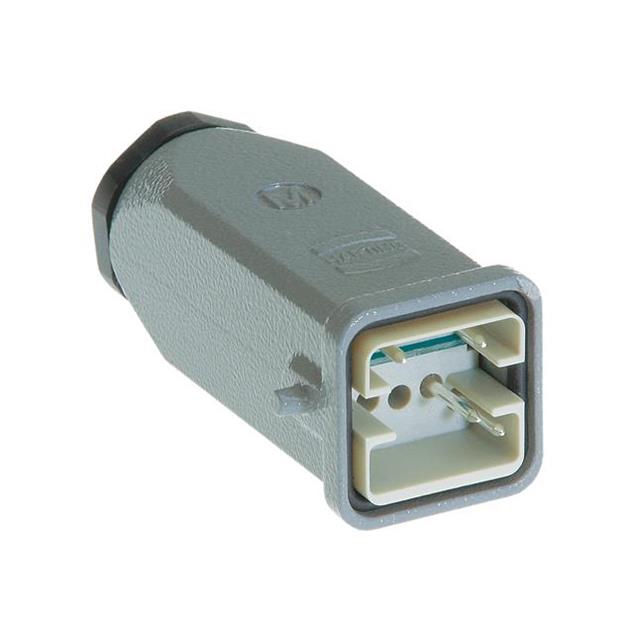

HARTING 09120062692				2 4	Ground	3 A							Crimp			Top Entry	Cable Connector Assembly
HARTING 09120062791				2 4	Ground	3 A							Crimp			Top Entry	Cable Connector Assembly

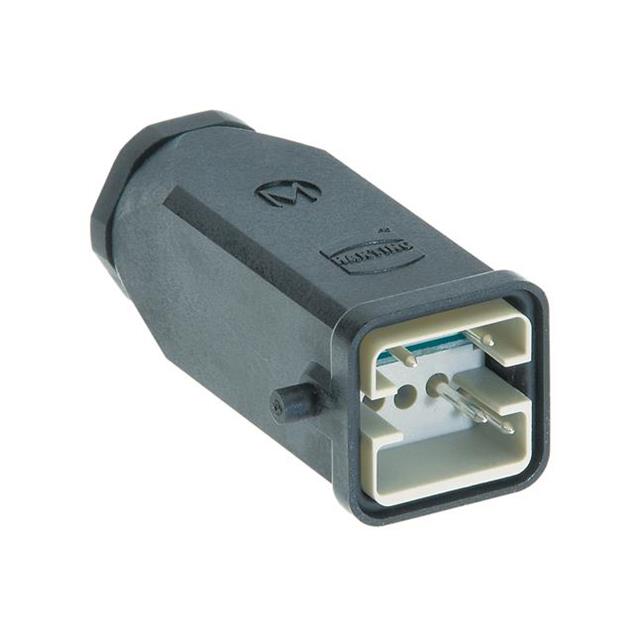

HARTING 09120062691				2 4	Ground	3 A							Crimp			Top Entry	Cable Connector Assembly

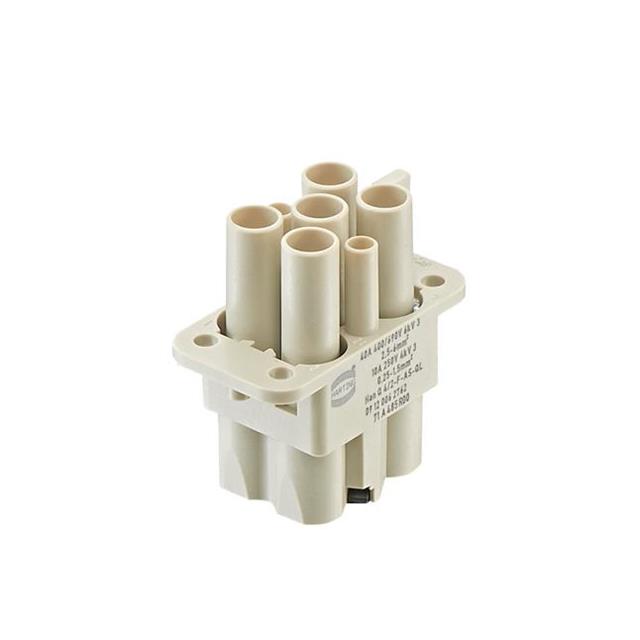

HARTING 09120062762	Polycarbonate (PC)	Gray	UL94 V-0	2 4	Ground				125 °C	-40 C	Female	Insert	Screw	Silver	Copper Alloy

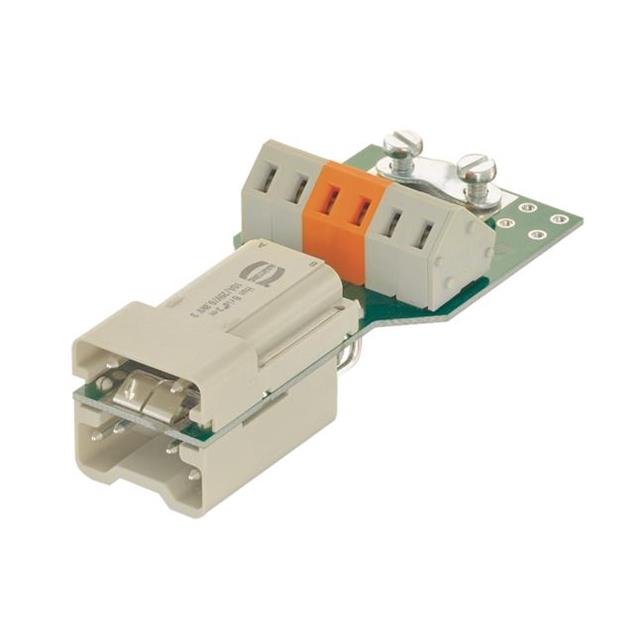

HARTING 09120062695	Polycarbonate (PC)	Gray	UL94 V-0	2 4	Ground		25 V	10 A	125 °C	-40 C	Male	Insert	Push In
HARTING 09120062694	Polycarbonate (PC)	Gray	UL94 V-0	2 4	Ground	3 A	25 V	10 A	125 °C	-40 C	Male	Insert	Screw

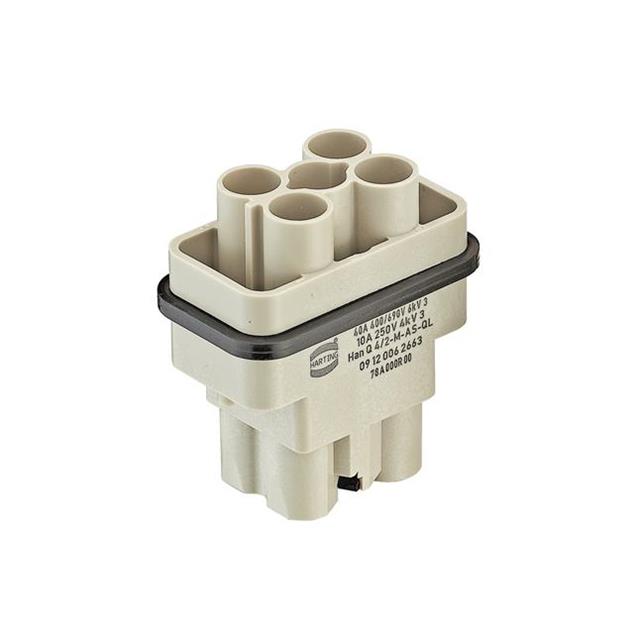

HARTING 09120062665	Polycarbonate (PC)	Gray	UL94 V-0		4+Ground				125 °C	-40 C	Male	Insert	Screw	Silver	Copper Alloy

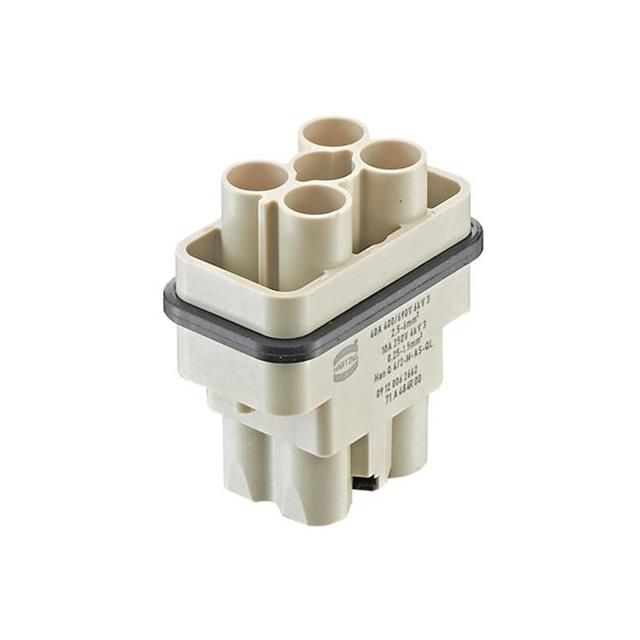

HARTING 09120062662	Polycarbonate (PC)	Gray	UL94 V-0	2 4	Ground				125 °C	-40 C	Male	Insert	Screw	Silver	Copper Alloy
