233W Series

Manufacturer: Serpac

Catalog

BOX ABS ALMOND 4.38"L X 3.25"W

Part	Weight	Weight	Thickness	Thickness	Material	Design	Area (L x W)	Area (L x W)	Color	Material Flammability Rating	Height [z]	Height [z]	Container Type	Features	Ratings

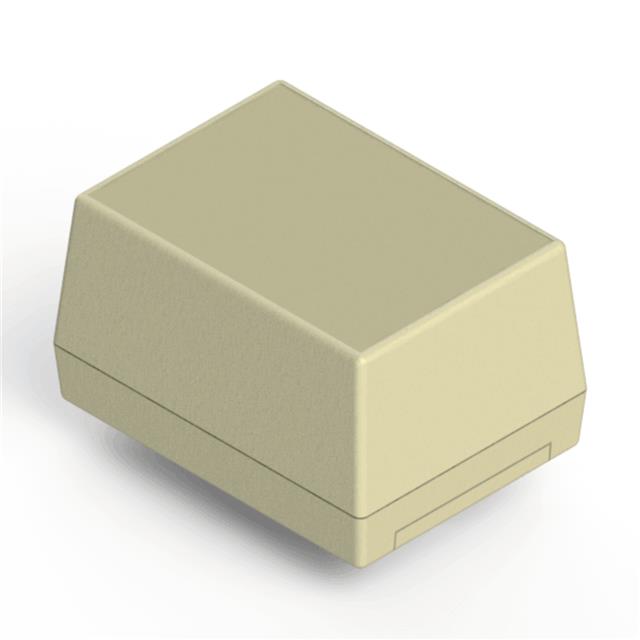

Serpac 233WI,AL	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Almond	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1
Serpac 233W,BK	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Black	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1

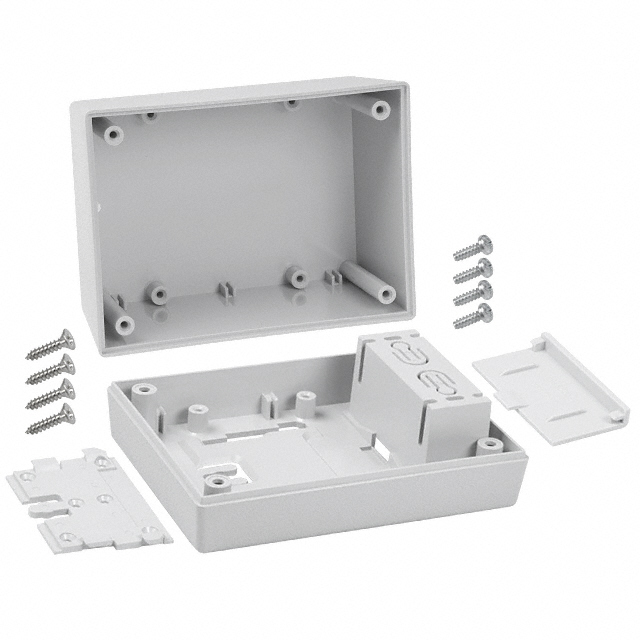

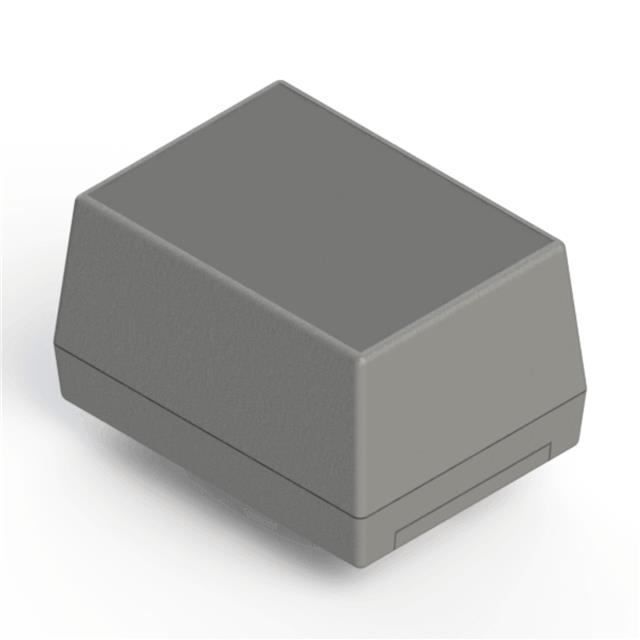

Serpac 233WI,GY	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Gray	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1

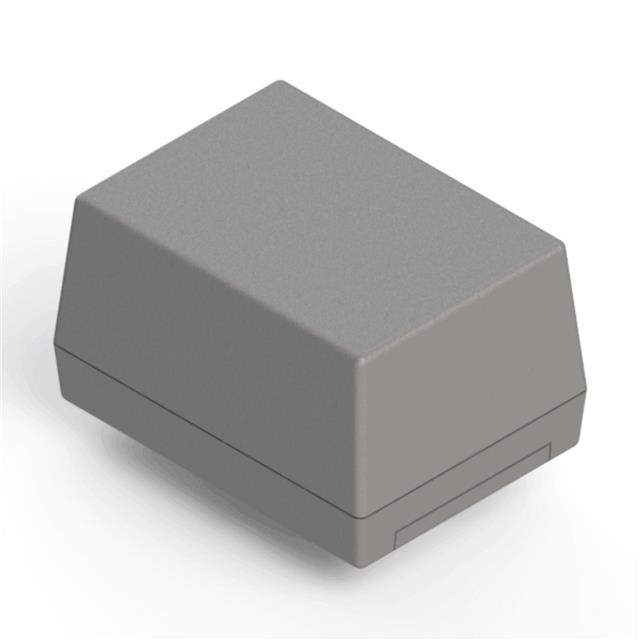

Serpac 233W,GY	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Gray	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1

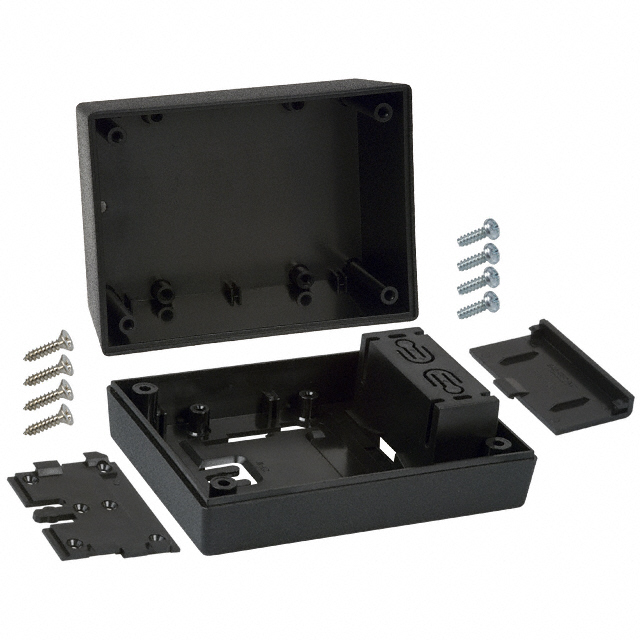

Serpac 233WI,BK	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Black	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1

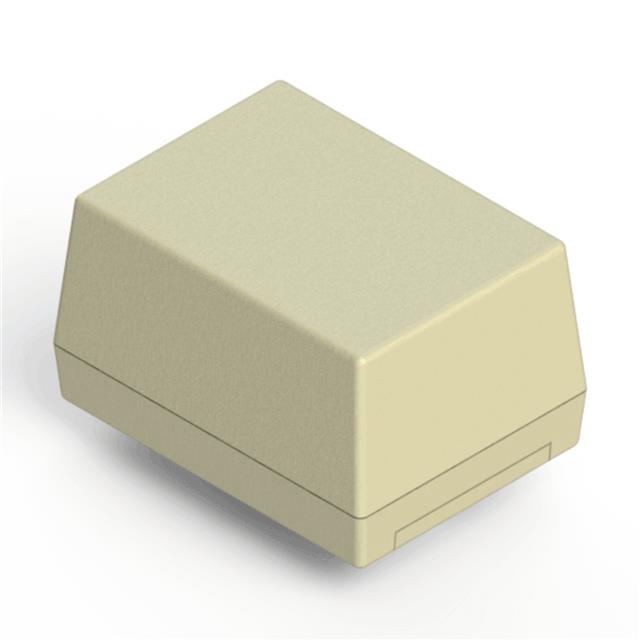

Serpac 233W,AL	119.29 g	0.263 lb	2.54 mm	0.1 in	ABS Plastic	Hand Held Split Sides	14.2 in²	92 cm˛	Almond	UL94 HB	2.5 in	63.5 mm	Box	9V Battery Compartment PCB Supports Wall Mount	IP40 NEMA 1
