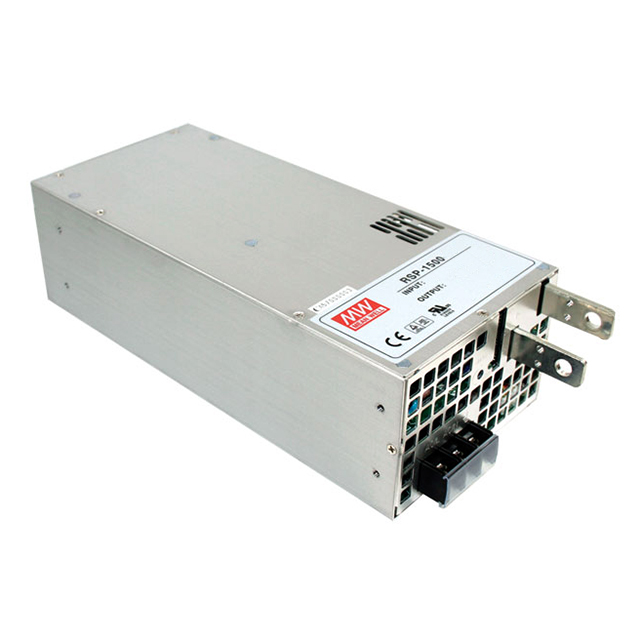

RSP-1500 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 24V 1512W
| Part | Minimum Load Required | Efficiency | Number of Outputs | Features | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Approval Agency | Voltage - Isolation | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output 1 | Current - Output 1 | Power (Watts) | Applications | Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 90 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 5 in | 5 in | 10.94 in | 3.29 " | 278 mm | 83.5 mm | CB CE cURus TUV | 3000 V | 70 °C | -20 °C | 264 VAC 370 VDC | 90 VAC 127 VDC | 24 V | 63 A | 1512 W | ITE (Commercial) | Enclosed | Chassis Mount | |
MEAN WELL USA Inc. | 87 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 5 in | 5 in | 10.94 in | 3.29 " | 278 mm | 83.5 mm | CB CE cURus TUV | 3000 V | 70 °C | -20 °C | 264 VAC 370 VDC | 90 VAC 127 VDC | 12 V | 125 A | 1500 W | ITE (Commercial) | Enclosed | Chassis Mount | |
MEAN WELL USA Inc. | 87 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 5 in | 5 in | 10.94 in | 3.29 " | 278 mm | 83.5 mm | CB CE cURus TUV | 3000 V | 70 °C | -20 °C | 264 VAC 370 VDC | 90 VAC 127 VDC | 15 V | 100 A | 1500 W | ITE (Commercial) | Enclosed | Chassis Mount | |
MEAN WELL USA Inc. | 90 % | 1 | Adjustable Output PFC Remote On/Off Remote Sense Universal Input | 5 in | 5 in | 10.94 in | 3.29 " | 278 mm | 83.5 mm | CB CE cURus TUV | 3000 V | 70 °C | -20 °C | 264 VAC 370 VDC | 90 VAC 127 VDC | 27 V | 56 A | 1512 W | ITE (Commercial) | Enclosed | Chassis Mount |
