78B05 Series

Catalog

SWITCH SLIDE DIP SPST 0.15A 30V

Part	Electrical Life	Body Material	Length [x]	Length [x]	Mechanical Life	Pitch	Pitch	Contact Material	Contact Finish	Number of Positions	Washable	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Height Above Board [z]	Height Above Board [z]	Voltage Rating	Features	Actuator Level	Mounting Type	Circuit	Actuator Type

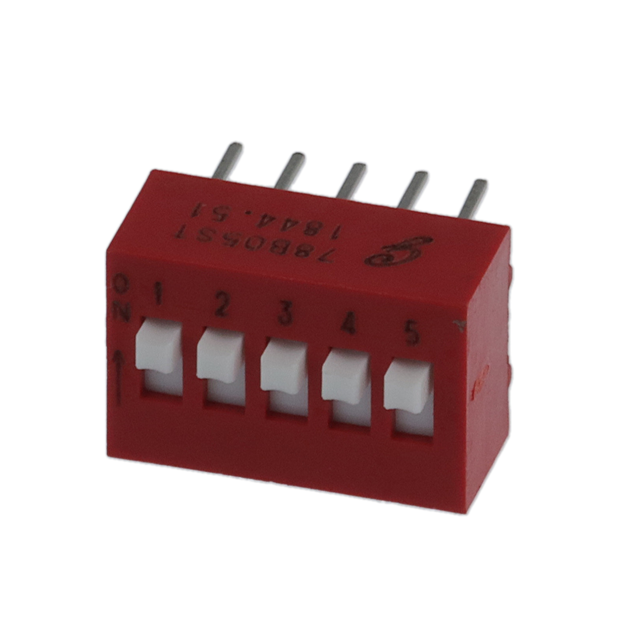

Grayhill Inc. 78B05ST	2000 Steps	Thermoplastic	0.58 in	14.73 mm	2000 Cycles	2.54 mm	0.1 "	Copper Alloy	Gold	5		85 °C	-40 C	PC Pin	0.315 in	8 mm	30 VDC	Tape Seal	Raised	Through Hole	SPST	Slide (Standard)
