24RC4S06 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

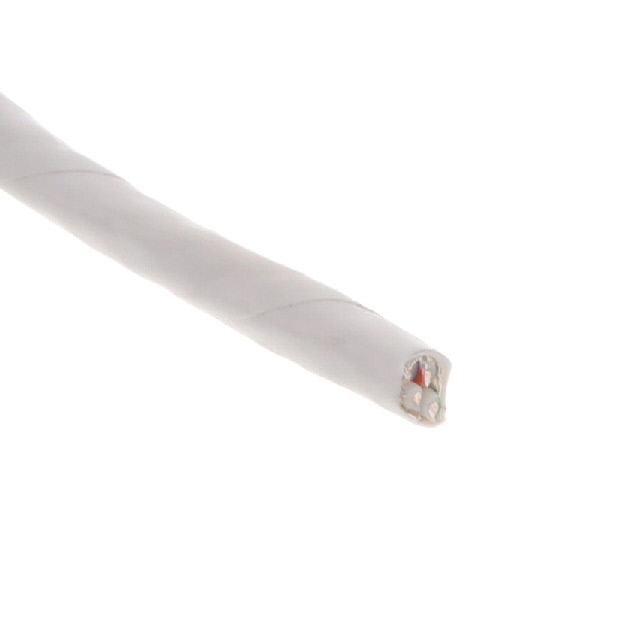

CABLE 4COND 24AWG NATURAL 1000'
| Part | Shield Coverage | Shield Material | Shield Type | Voltage | Number of Conductors | Jacket (Insulation) Material | Cable Type | Conductor Insulation | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Length | Length | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Silver Coated | Braid | 600 V | 4 | Polytetrafluoroethylene (PTFE) | Multi-Conductor | Polytetrafluoroethylene (PTFE) | 0.0098 " | 0.25 mm | Copper Silver Coated | 304.8 m | 1000 ft | Natural | 200 °C | -55 C | 24 AWG | 0.142 in | 3.61 mm |
