307-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

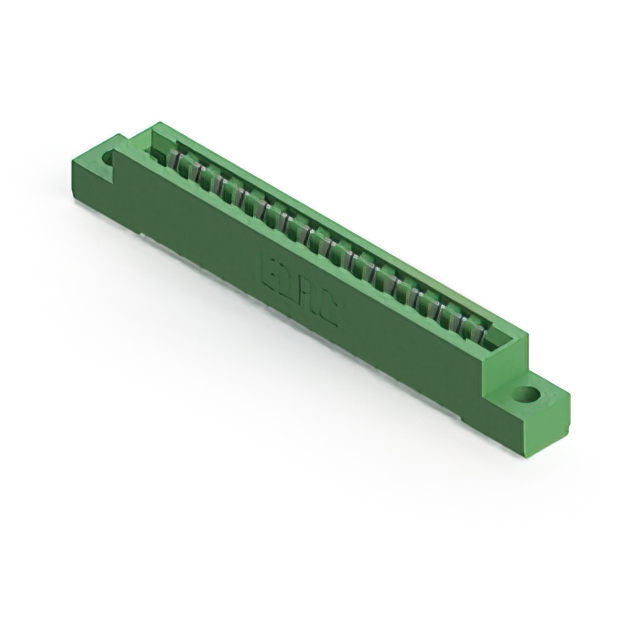

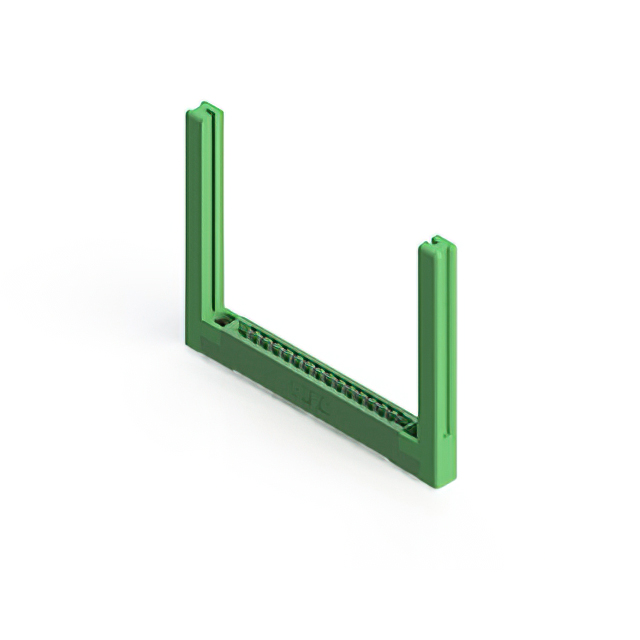

CONN EDGE SGL FMALE 15POS 0.156
| Part | Material - Insulation | Termination Rows | Mounting Type | Card Type | Contact Finish | Number of Rows | Pitch | Pitch | Contact Type | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Features | Color | Contact Material | Flange Feature | Termination | Number of Positions | Read Out | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Single Edge | Gold | 1 | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Card Guides | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 15 | Single | 0.25 Ám | 10 Áin | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | |||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Dual Edge | Tin | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | Flush Mount Side Opening Unthreaded | Wire Wrap | 30 | Dual | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 2 | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Single Edge | Tin | 1 | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | Flush Mount Top Opening Unthreaded | Wire Wrap | 15 | Single | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Dual Edge | Tin | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Card Guides | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 30 | Dual | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Single Edge | Gold | 1 | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 15 | Single | 0.25 Ám | 10 Áin | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Non Specified - Dual Edge | Tin | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | Solder | 30 | Dual | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Single Edge | Gold | 1 | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 15 | Single | 0.25 Ám | 10 Áin | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | ||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Surface Mount | Non Specified - Dual Edge | Gold | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Green | Copper Alloy | Solder Eyelet(s) | 30 | Dual | 0.25 Ám | 10 Áin | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Right Angle Through Hole | Non Specified - Dual Edge | Tin | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Card Guides | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Solder | 30 | Dual | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||||
 EDAC Inc. | Polyester Thermoplastic | 1 | Through Hole | Non Specified - Single Edge | Tin | 1 | 3.96 mm | 0.156 in | Semi Bellows | Female | -40 C | 105 ░C | Card Guides | Green | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | Wire Wrap | 15 | Single | 15 | 0.07 in 1.78 mm | 0.054 in 1.37 mm |
