2804-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

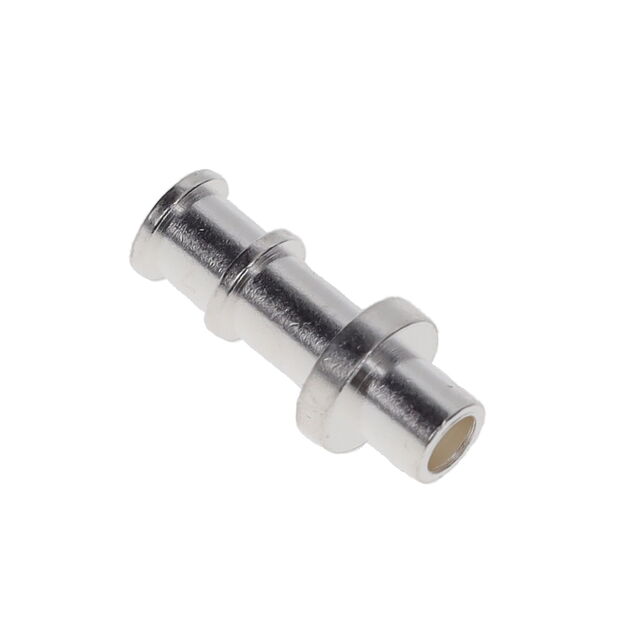

TERM TURRET SINGLE L=8.33MM
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Insulation | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Board Thickness | Board Thickness | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Flange Diameter [diameter] | Flange Diameter [diameter] | Staking Side ID | Staking Side ID | Staking Side OD [diameter] | Staking Side OD [diameter] | Terminal Type | Length - Overall [x] | Length - Overall | Contact Material | Number of Turrets | Length - Below Flange [x] | Length - Below Flange [x] | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mill-Max Manufacturing Corp. | 0.118 in | 3 mm | Non-Insulated | 0.146 in | 3.71 mm | 0.062 in | 1.57 mm | Tin-Lead | 300 µin | 7.62 µm | 0.187 in | 4.75 mm | 0.078 in | 1.98 mm | 0.112 in | 2.84 mm | Single End | 0.437 in | 11.1 mm | Brass Alloy | Double | 2.77 mm | 0.109 in | Swage | Through Hole |
 Mill-Max Manufacturing Corp. | 0.118 in | 3 mm | Non-Insulated | 0.146 in | 3.71 mm | 0.062 in | 1.57 mm | Silver | 300 µin | 7.62 µm | 0.187 in | 4.75 mm | 0.078 in | 1.98 mm | 0.112 in | 2.84 mm | Single End | 0.437 in | 11.1 mm | Brass Alloy | Double | 2.77 mm | 0.109 in | Swage | Through Hole |
Mill-Max Manufacturing Corp. | 0.118 in | 3 mm | Non-Insulated | 0.146 in | 3.71 mm | 0.062 in | 1.57 mm | Tin | 200 Áin | 5.08 Ám | 0.187 in | 4.75 mm | 0.078 in | 1.98 mm | 0.112 in | 2.84 mm | Single End | 0.437 in | 11.1 mm | Brass Alloy | Double | 2.77 mm | 0.109 in | Swage | Through Hole |
