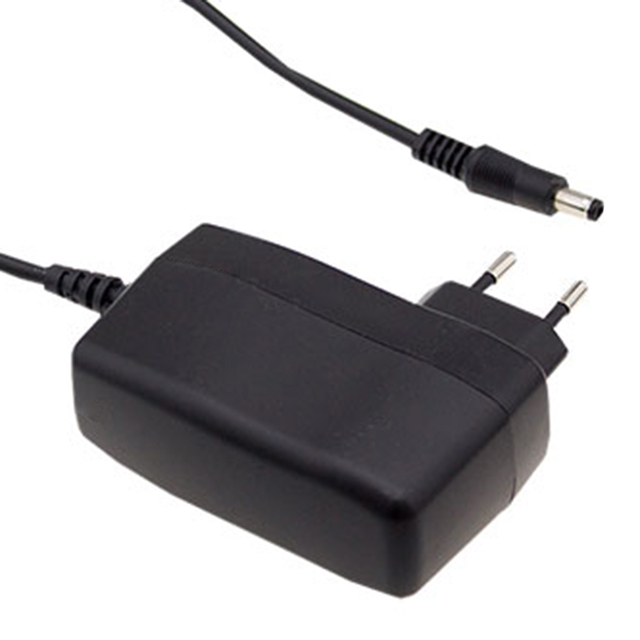

SGA60E07 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC WALL MNT ADAPTER 7.5V 45W
| Part | Region Utilized | Current - Output (Max) [Max] | Input Type | Voltage - Input [Max] | Voltage - Input [Min] | Efficiency | Cord Length | Cord Length | Form | Polarization | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output | Applications | Input Connector | No Load Power Consumption | Power (Watts) | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Output Connector [x] | Output Connector [diameter] | Output Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Europe | 6 A | Fixed Blade | 264 VAC | 90 VAC | Level VI | 1 m | 39.4 in | Wall Mount | Positive Center | -20 ░C | 50 °C | 7.5 V | ITE (Commercial) | CEE 7/16 | 75 mW | 45 W | CB CE GS | 35 mm | 3.68 " | 51.5 mm | 1.38 in | 93.5 mm | 2.03 in | 11 mm | 2.1 mm 5.5 mm | Barrel Plug |
