DLF-28 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
CMC 600MA 2LN TH
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | DC Resistance (DCR) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Mounting Type | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency - Self Resonant | Shielding | Inductance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

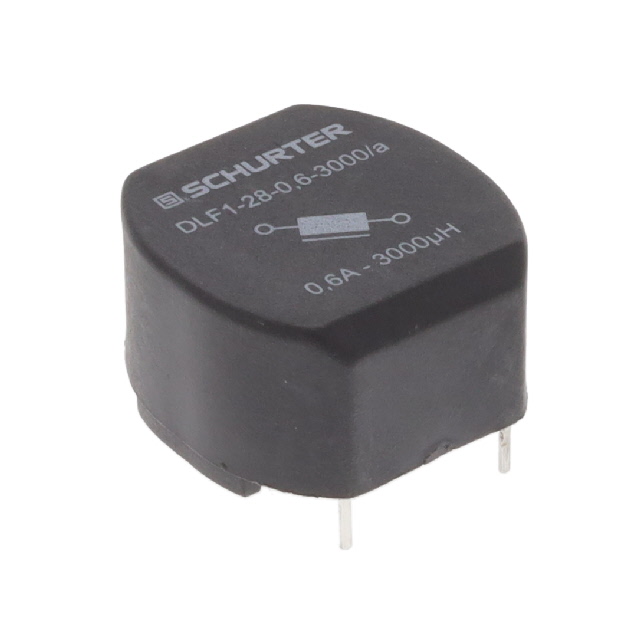

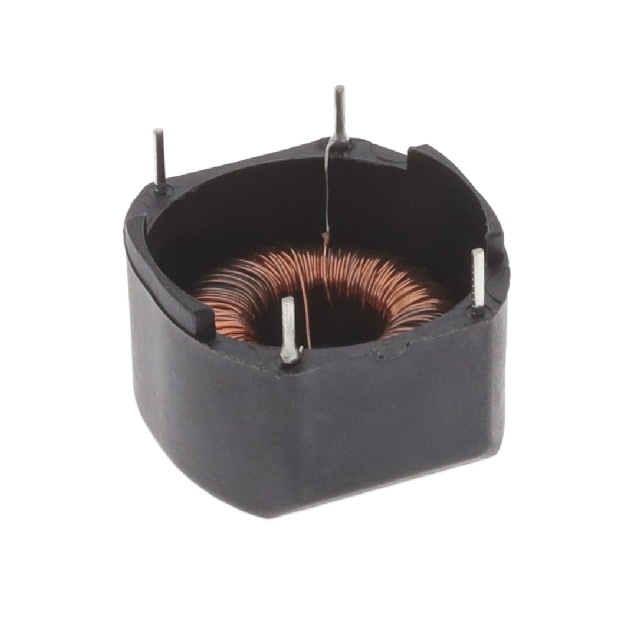

 SCHURTER Inc. | 4 Leads Horizontal Radial | 125 °C | -40 C | 600 mA | 1.7 Ohm | 27.4 mm | 1.114 " | 28.3 mm | 1.079 in | 15 % | Through Hole | 16.7 mm | 0.657 in | 300 kHz | Unshielded | 3 mH |

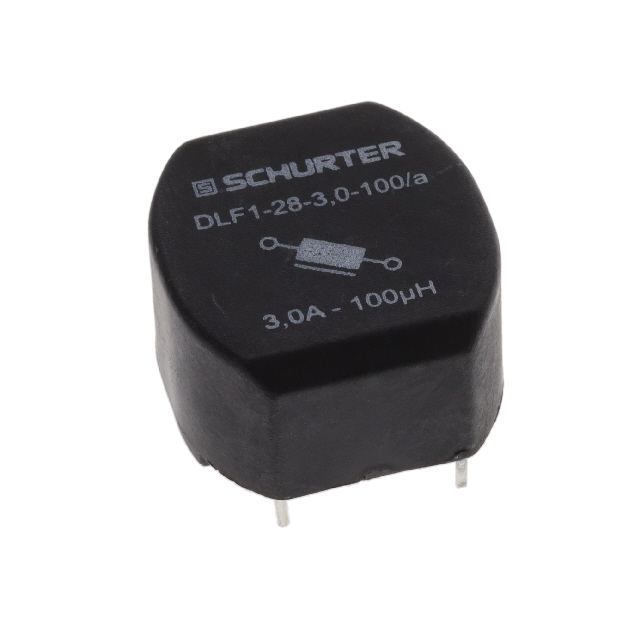

 SCHURTER Inc. | 4 Leads Horizontal Radial | 125 °C | -40 C | 3 A | 70 mOhm | 27.4 mm | 1.114 " | 28.3 mm | 1.079 in | 15 % | Through Hole | 16.7 mm | 0.657 in | 7.5 MHz | Unshielded | 100 µH |

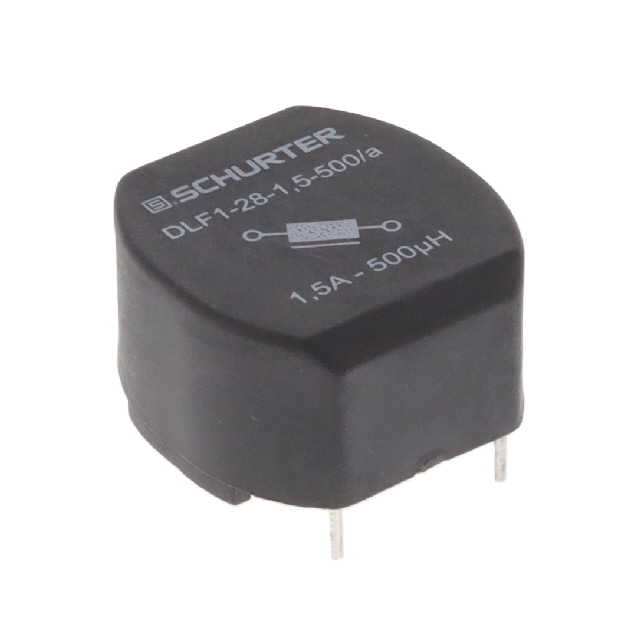

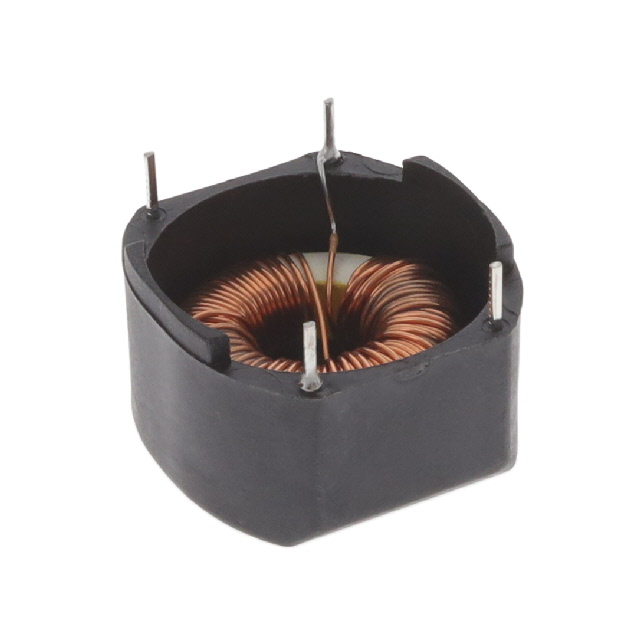

 SCHURTER Inc. | 4 Leads Horizontal Radial | 125 °C | -40 C | 1.5 A | 270 mOhm | 27.4 mm | 1.114 " | 28.3 mm | 1.079 in | 15 % | Through Hole | 16.7 mm | 0.657 in | 1.2 MHz | Unshielded | 500 µH |
