725-128 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 128POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mounting Type	Card Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Pitch	Pitch	Termination	Color	Contact Finish Thickness	Contact Finish Thickness	Read Out	Number of Positions/Bay/Row	Contact Material	Contact Finish

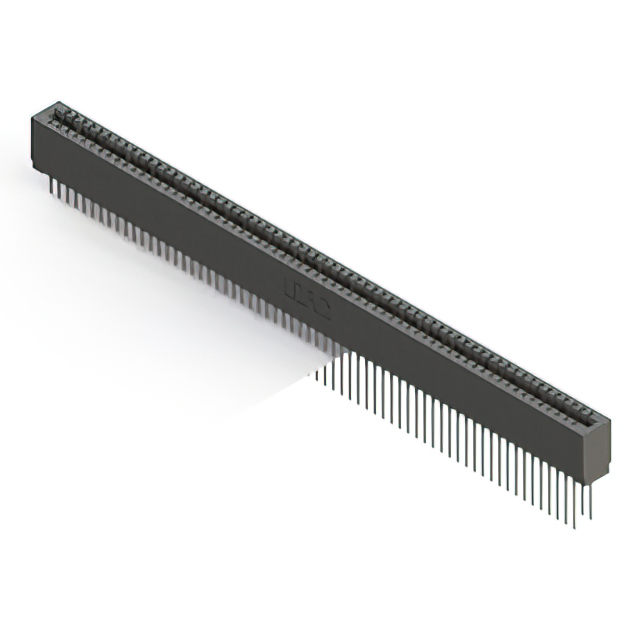

EDAC Inc. 725-128-540-201	Polyester Thermoplastic	2	2	Cantilever	-40 C	105 ░C	Female	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	128	0.1 "	2.54 mm	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Dual	64	Copper Alloy	Gold

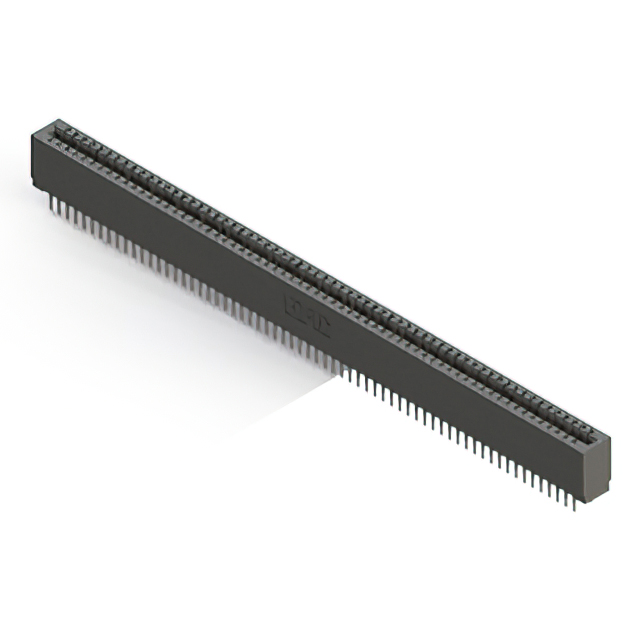

EDAC Inc. 725-128-520-201	Polyester Thermoplastic	2	2	Cantilever	-40 C	105 ░C	Female	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	128	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	Dual	64	Copper Alloy	Gold
EDAC Inc. 725-128-525-201	Polyester Thermoplastic	2	2	Cantilever	-40 C	105 ░C	Female	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	128	0.1 "	2.54 mm	Press-Fit	Black	30 Áin	0.76 Ám	Dual	64	Copper Alloy	Gold
EDAC Inc. 725-128-545-201	Polyester Thermoplastic	2	2	Cantilever	-40 C	105 ░C	Female	Through Hole	Non Specified - Dual Edge	0.07 in 1.78 mm	0.054 in 1.37 mm	128	0.1 "	2.54 mm	Press-Fit Wire Wrap	Black	30 Áin	0.76 Ám	Dual	64	Copper Alloy	Gold
