CS1214A Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Switch Travel	Actuator Material	Switch Function	Outline [x]	Outline [y]	Illumination	Operating Force	Circuit	Mounting Type	Termination Style	Actuator Orientation	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]
CIT Relay and Switch CS1214AGF260	0.25 mm	Brass Nickel Plated	Off-Mom	5.2 mm	5.2 mm	Non-Illuminated	260 gf	SPST-NO	Surface Mount	Gull Wing	Top Actuated	Standard	85 °C	-40 C	0.05 A 50 VDC	1.5 mm
CIT Relay and Switch CS1214AJF260	0.25 mm	Brass Nickel Plated	Off-Mom	5.2 mm	5.2 mm	Non-Illuminated	260 gf	SPST-NO	Surface Mount	J Lead	Top Actuated	Standard	85 °C	-40 C	0.05 A 50 VDC	1.5 mm

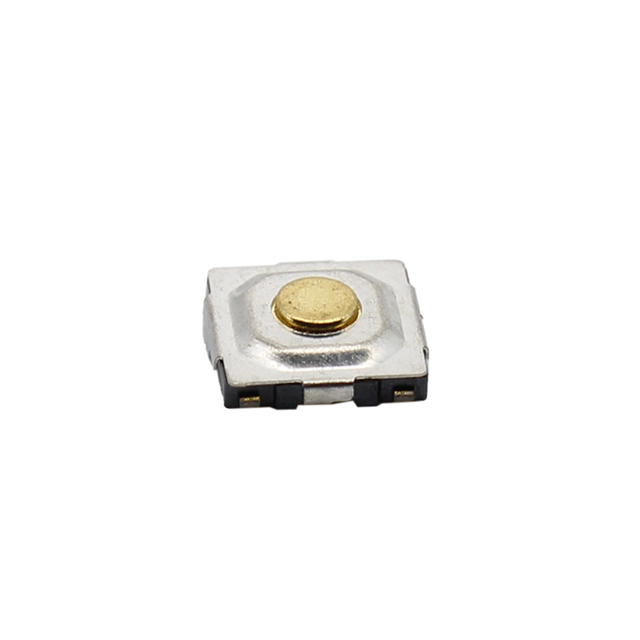

CIT Relay and Switch CS1214AJF160	0.25 mm	Brass Nickel Plated	Off-Mom	5.2 mm	5.2 mm	Non-Illuminated	160 gf	SPST-NO	Surface Mount	J Lead	Top Actuated	Standard	85 °C	-40 C	0.05 A 50 VDC	1.5 mm

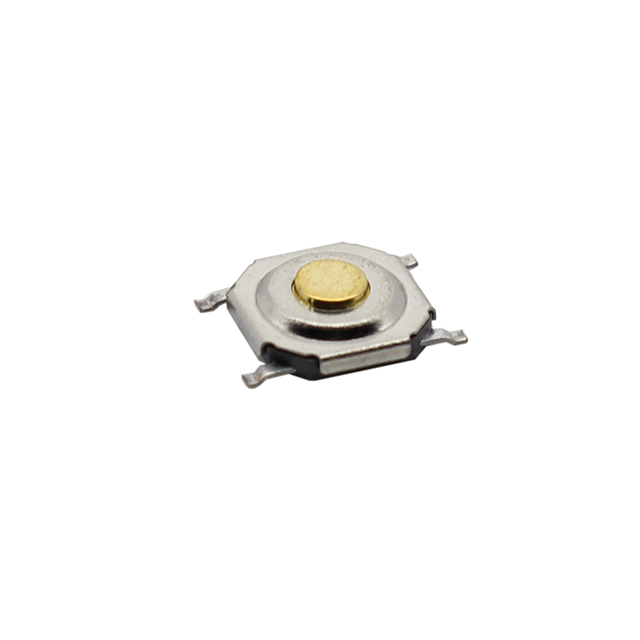

CIT Relay and Switch CS1214AGF160	0.25 mm	Brass Nickel Plated	Off-Mom	6.4 mm	5.2 mm	Non-Illuminated	160 gf	SPST-NO	Surface Mount	Gull Wing	Top Actuated	Standard	85 °C	-40 C	0.05 A 50 VDC	1.5 mm
