002214 Series

Manufacturer: Molex

Catalog

CONN SOCKET STRIP RCP 5 POS 2.54MM SOLDER ST BOTTOM ENTRY THRU-HOLE KK TRAY

Part	Features	Number of Positions	Material Flammability Rating	Number of Rows	Style	Number of Positions Loaded	Contact Finish - Post	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Connector Type	Mounting Type	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Type	Insulation Color	Termination	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Applications	Contact Material
Molex 0022142054	Board Hooks	5	UL94 V-0	1	Board to Board Cable	All	Tin	80 °C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm	0.132 in	3.35 mm	2.5 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Brass
Molex 0022142204	Board Hooks	20	UL94 V-0	1		All	Tin	80 °C	-40 C	500 V	Receptacle Bottom Entry	Through Hole	Push-Pull			0.132 in	3.35 mm		Cat Ear Female Female Socket	White	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Liquid Crystal Polymer (LCP)			Square		Copper
Molex 0022142074	Board Hooks	7	UL94 V-0	1	Board to Board Cable	All	Tin	80 °C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm	0.132 in	3.35 mm	2.5 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Brass
Molex 0022142025	Board Hooks	2	UL94 V-0	1	Board to Board Cable	All	Tin	105 ░C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm			4 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	150 Áin	3.81 Ám	Nylon Polyamide (PA)	3.81 Ám		Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze
Molex 0022142162	Board Hooks	16	UL94 V-0	1	Board to Board Cable	All	Tin	105 ░C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm			4 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	150 Áin	3.81 Ám	Nylon Polyamide (PA)	3.81 Ám		Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze
Molex 0022142082	Board Hooks	8	UL94 V-0	1	Board to Board Cable	All	Tin	105 ░C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm			4 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	150 Áin	3.81 Ám	Nylon Polyamide (PA)	3.81 Ám		Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze
Molex 0022142062	Board Hooks	6	UL94 V-0	1	Board to Board Cable	All	Tin	105 ░C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm			4 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	150 Áin	3.81 Ám	Nylon Polyamide (PA)	3.81 Ám		Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze
Molex 0022142072	Board Hooks	7	UL94 V-0	1	Board to Board Cable	All	Tin	105 ░C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm			4 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	150 Áin	3.81 Ám	Nylon Polyamide (PA)	3.81 Ám		Square	Automotive General Purpose Medical Telecommunications	Phosphor Bronze

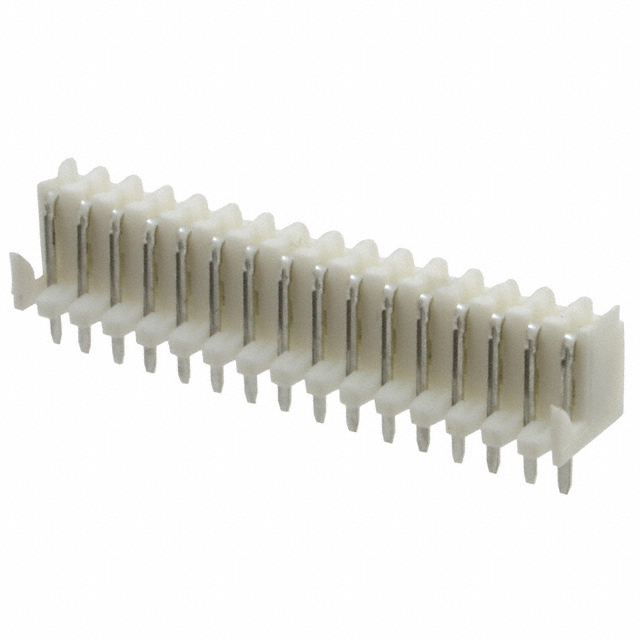

Molex 0022142164	Board Hooks	16	UL94 V-0	1	Board to Board Cable	All	Tin	80 °C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm	0.132 in	3.35 mm	2.5 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Brass
Molex 0022142134	Board Hooks	13	UL94 V-0	1	Board to Board Cable	All	Tin	80 °C	-40 C	250 VAC	Receptacle Bottom Entry	Through Hole	Push-Pull	0.311 in	7.9 mm	0.132 in	3.35 mm	2.5 A	Cat Ear Female Non-Gendered	White	Solder	0.1 "	2.54 mm	100 çin	2.54 çm	Nylon Polyamide (PA)	2.54 µm	100 µin	Square	Automotive General Purpose Medical Telecommunications	Brass
