A10 Series

Catalog

COMP O= .375,L= 1.09,W= .055

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	Free Length [x]	Free Length [x]	Rate	Type	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Material	Finish	End Style	Free Length	Free Length	Diameter - Outside [diameter]	Load	Diameter - Outside	Diameter - Outside

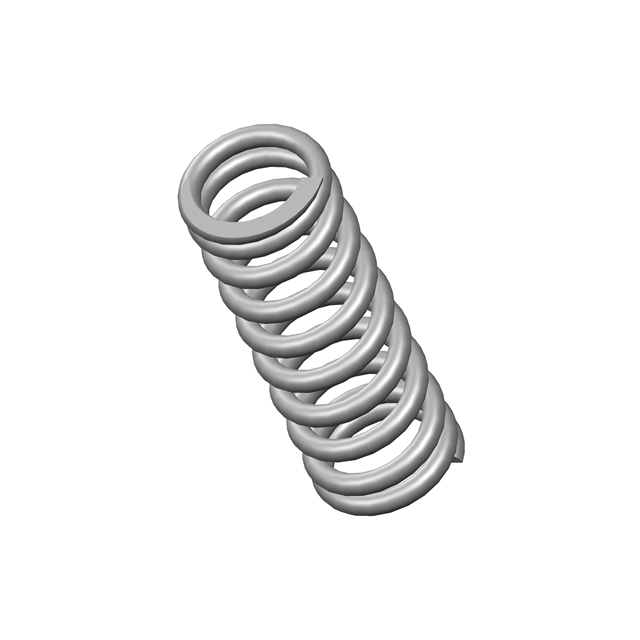

Century Spring Corp A10-70CS	0.375 "	9.53 mm	0.055 in	1.4 mm	27.69 mm	1.09 "	50 lbs/in	Compression	0.265 in	6.73 mm	Spring Steel	Zinc	Closed & Ground

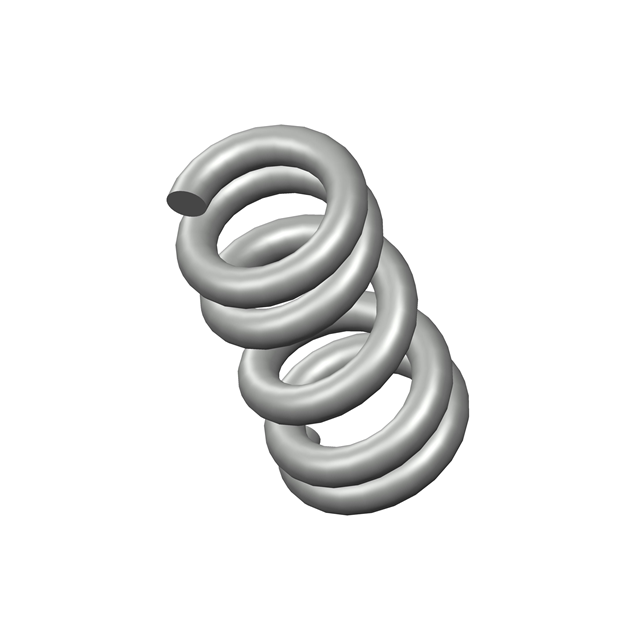

Century Spring Corp A10-9CS	0.125 in	3.18 mm					187 lbs/in	Compression	0.075 in	1.91 mm	Music Wire	Black Oxide	Closed	6.35 mm	0.25 "

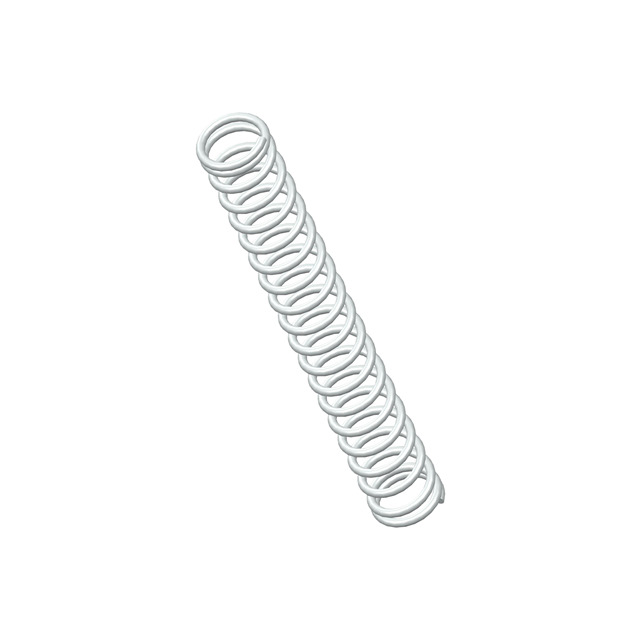

Century Spring Corp A10-37CS	0.109 "	2.77 mm	0.013 in	0.33 mm			2.3 lbs/in	Compression	0.083 in	2.11 mm	Stainless Steel	None	Closed	21.34 mm	0.84 "

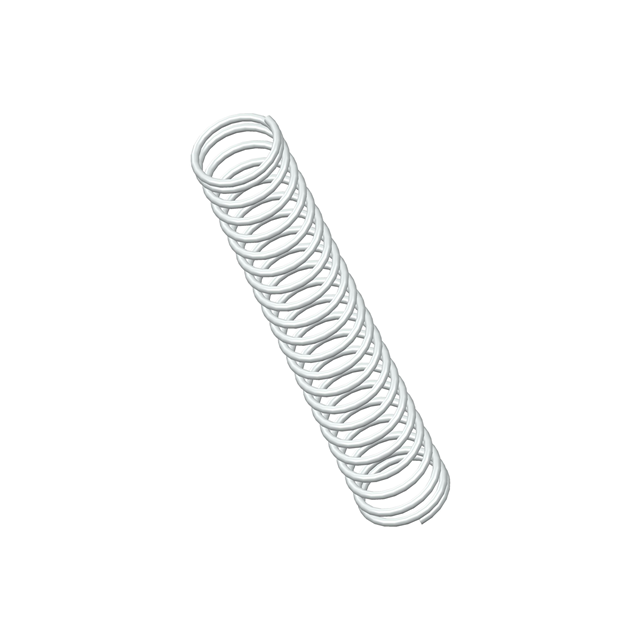

Century Spring Corp A10-48CS	0.219 in	5.56 mm	0.019 in	0.48 mm	32.51 mm	1.28 "	1 lbs/in	Compression	0.181 in	4.6 mm	Stainless Steel	None	Closed

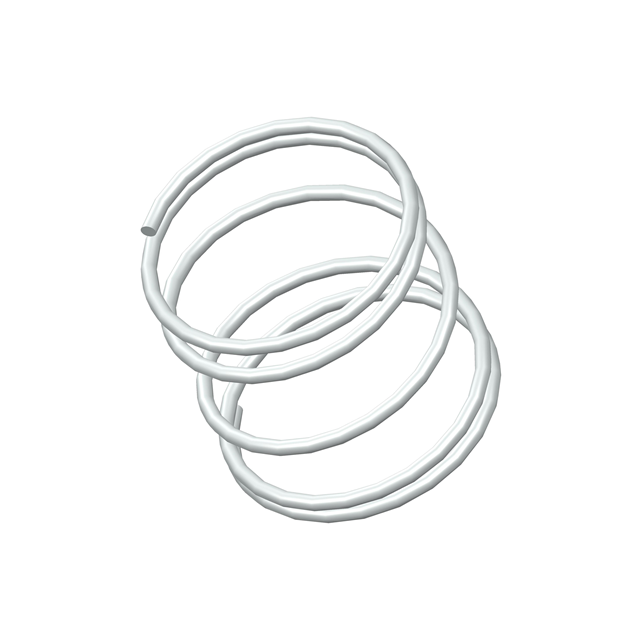

Century Spring Corp A10-62CS		0.734 in	0.04 in	1.02 mm	19.05 mm	0.75 "	3.3 lbs/in	Compression	0.654 in	16.61 mm	Stainless Steel	None	Closed & Ground			18.64 mm
Century Spring Corp A10-67CS		0.703 in	0.036 in	0.91 mm	38.1 mm	1.5 "	1.8 lbs/in	Compression	0.631 in	16.03 mm	Stainless Steel	None	Closed			17.86 mm
Century Spring Corp A10-1CS	0.36 in	9.14 mm	0.024 in	0.61 mm			0.96 lbs/in				Music Wire	None					2 lbs

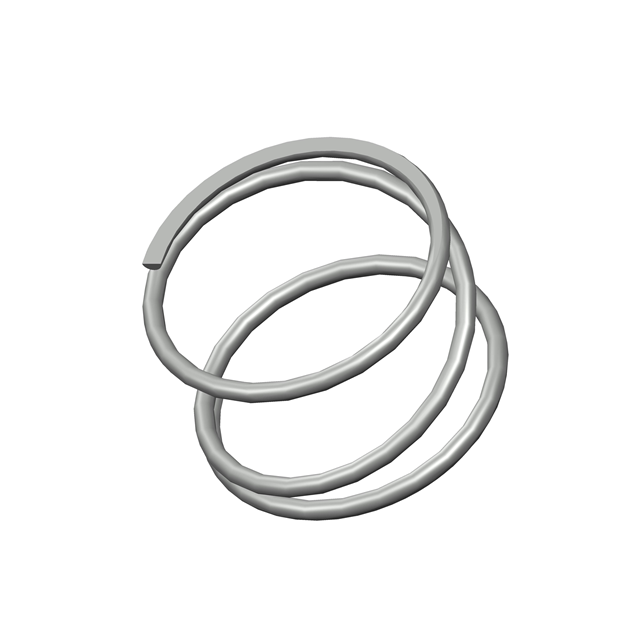

Century Spring Corp A10-50CS	0.484 in	12.29 mm	0.03 in	0.76 mm	7.87 mm	0.31 "	12 lbs/in	Compression	0.424 in	10.77 mm	Music Wire	Gold Iridite	Closed & Ground

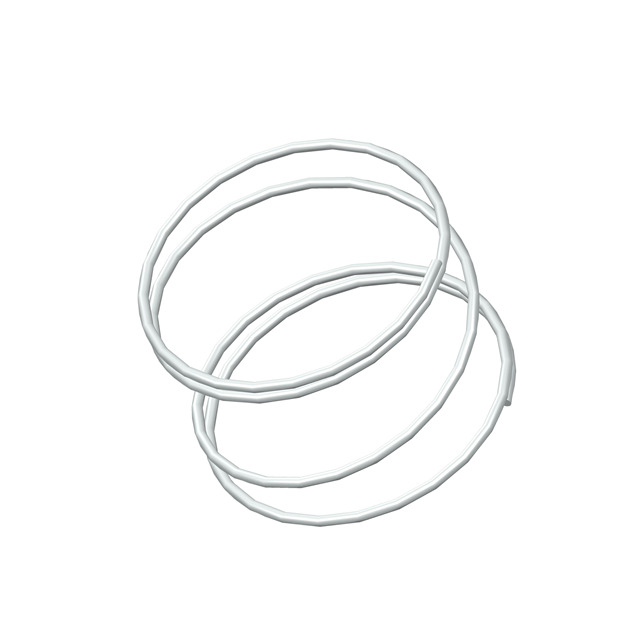

Century Spring Corp A10-53CS			0.016 in	0.41 mm			0.45 lbs/in	Compression	0.436 in	11.07 mm	Stainless Steel	None	Closed					0.468 in	11.89 mm
Century Spring Corp A10-8CS			0.019 in	0.48 mm	13.46 mm	0.53 "	3.4 lbs/in	Compression	0.196 "	4.98 mm	Music Wire	None	Closed
