KLDX-0202 Series
Manufacturer: Kycon, Inc.
Beta
⌘K

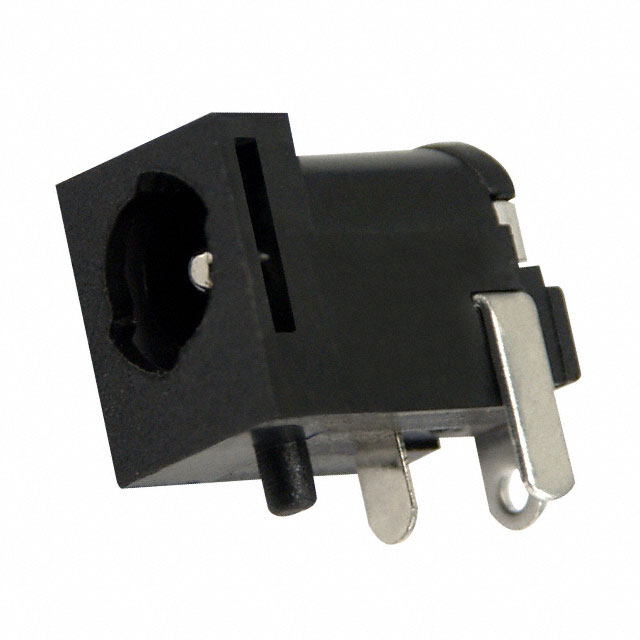

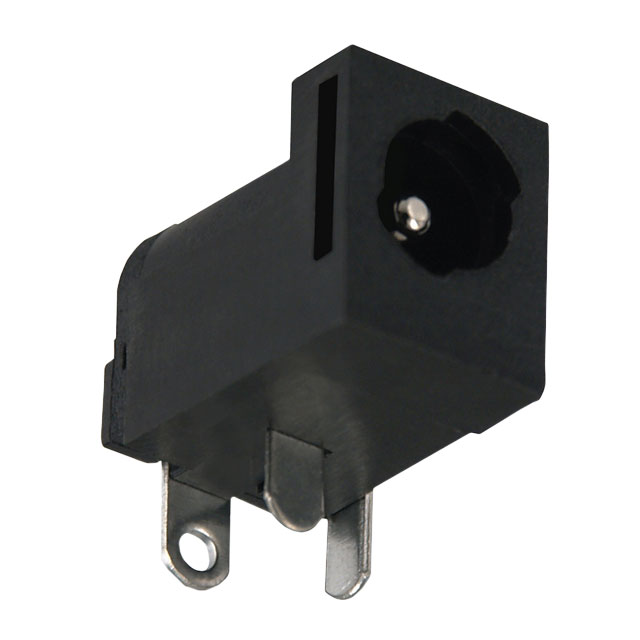

POWER JACK 2.0 MM DIA W/PEG LOCK
| Part | Contact Material - Plating | Termination | Current Rating (Amps) | Material Flammability Rating | Contact Material | Shielding | Mounting Type | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Internal Switch(s) | Gender | Body Color | Voltage - Rated | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Number of Positions/Contacts | Connector Type | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kycon, Inc. | Tin | Solder Eyelet(s) | 3.5 A | UL94 V-0 | Brass Phosphor Bronze | Unshielded | Through Hole Right Angle | 0.079 in 0.217 " | 2 mm 5.5 mm | Normally Closed Single Switch | Male | Black | 24 VDC | 2 mm | 0.224 in | 5.7 mm | 0.079 " | 2 Conductors 3 Conductors | Jack | Polybutylene Terephthalate (PBT) | -25 °C | 85 °C |
 Kycon, Inc. | Tin | Solder Eyelet(s) | 3.5 A | UL94 V-0 | Brass Phosphor Bronze | Unshielded | Through Hole Right Angle | 0.079 in 0.217 " | 2 mm 5.5 mm | Normally Closed Single Switch | Male | Black | 24 VDC | 2 mm | 0.224 in | 5.7 mm | 0.079 " | 2 Conductors 3 Conductors | Jack | Polybutylene Terephthalate (PBT) | -25 °C | 85 °C |
