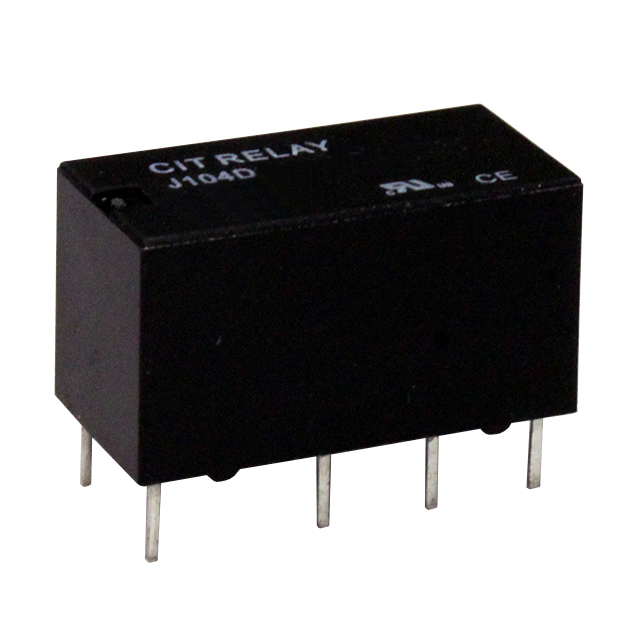

J104D Series

Catalog

RELAY GEN PURPOSE DPDT 2A 12V

Part	Coil Resistance	Must Operate Voltage	Coil Type	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Contact Material	Contact Form	Termination Style	Seal Rating	Relay Type	Release Time	Switching Voltage [Max]	Contact Rating (Current)	Load - Max Switching	Coil Voltage	Operate Time	Mounting Type
CIT Relay and Switch J104D2C12VDC.45S	320 Ohms	9 VDC	Non Latching	1.2 VDC	85 °C	-40 C	0.0375 A	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	12 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C24VDC.45S	1280 Ohms	18 VDC	Non Latching	2.4 VDC	85 °C	-40 C	18.8 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	24 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C9VDC.45S	180 Ohms	6.75 VDC	Non Latching	0.9 VDC	85 °C	-40 C	50 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	9 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C12VDC.36S	400 Ohms	9 VDC	Non Latching	1.2 VDC	85 °C	-40 C	0.03 A	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	12 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C5VDC.36S	70 Ohms	3.75 VDC	Non Latching	0.5 VDC	85 °C	-40 C	71.4 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	5 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C9VDC.15S		6.75 VDC	Non Latching	0.9 VDC	85 °C	-40 C	16.7 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	9 VDC	6 ms	Through Hole
CIT Relay and Switch J104D2C9VDC.20S	405 Ohms	6.75 VDC	Non Latching	0.9 VDC	85 °C	-40 C	22.2 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	9 VDC	6 ms	Through Hole

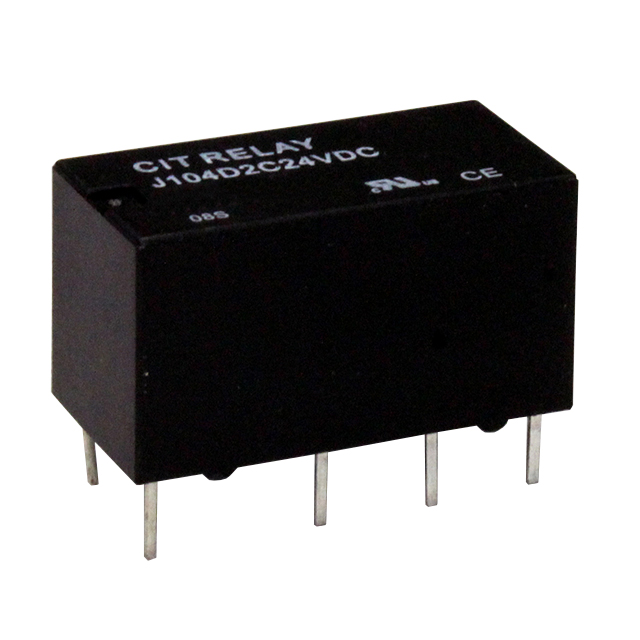

CIT Relay and Switch J104D2C24VDC.15S	3.84 kOhms	18 VDC	Non Latching	2.4 VDC	85 °C	-40 C	6.3 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	24 VDC	6 ms	Through Hole

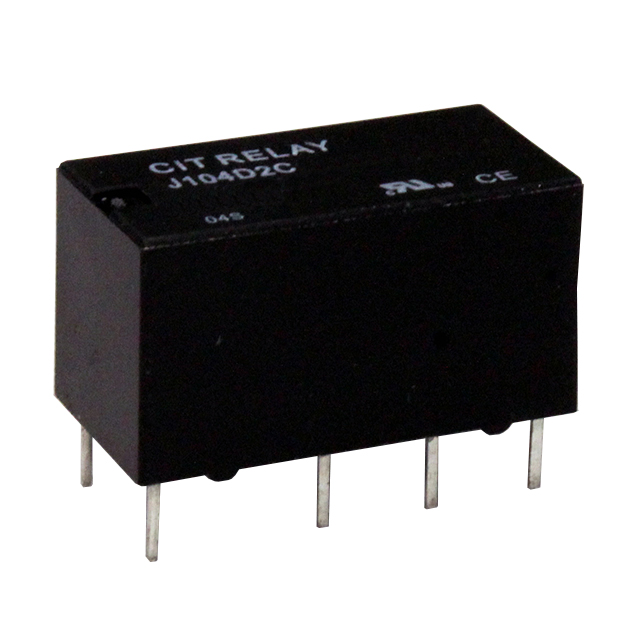

CIT Relay and Switch J104D2C5VDC.20S	125 Ohms	3.75 VDC	Non Latching	0.5 VDC	85 °C	-40 C	40 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	5 VDC	6 ms	Through Hole

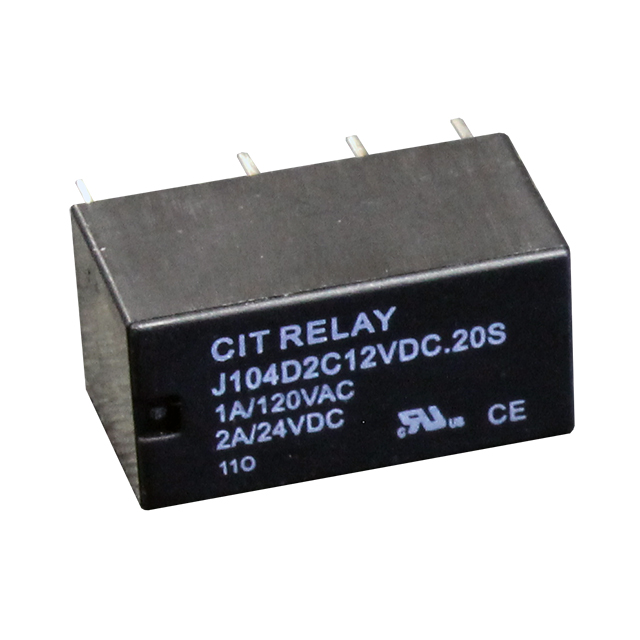

CIT Relay and Switch J104D2C12VDC.20S	720 Ohms	9 VDC	Non Latching	1.2 VDC	85 °C	-40 C	16.7 mA	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	PC Pin	Sealed - Fully	General Purpose	4 ms	100 VDC 250 VAC	2 A	200 W 500 VA	12 VDC	6 ms	Through Hole
