HLW7R Series

Catalog

CONN CIC TOP 7POS 1MM R/A

Part	Mating Cycles	Housing Color	Contact Material	Mounting Type	Termination	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Cable End Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Flat Flex Type	Material Flammability Rating	FFC, FCB Thickness	Voltage Rating	Connector/Contact Type	Pitch	Pitch	Actuator Color	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HLW7R-6C7LF	5	Black	Phosphor Bronze	Right Angle Through Hole	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	85 °C	Tapered	Tin	0.154 in	3.9 mm	7	CIC	UL94 V-0	0.3 mm	100 V	Contacts Top	1 mm	0.039 in

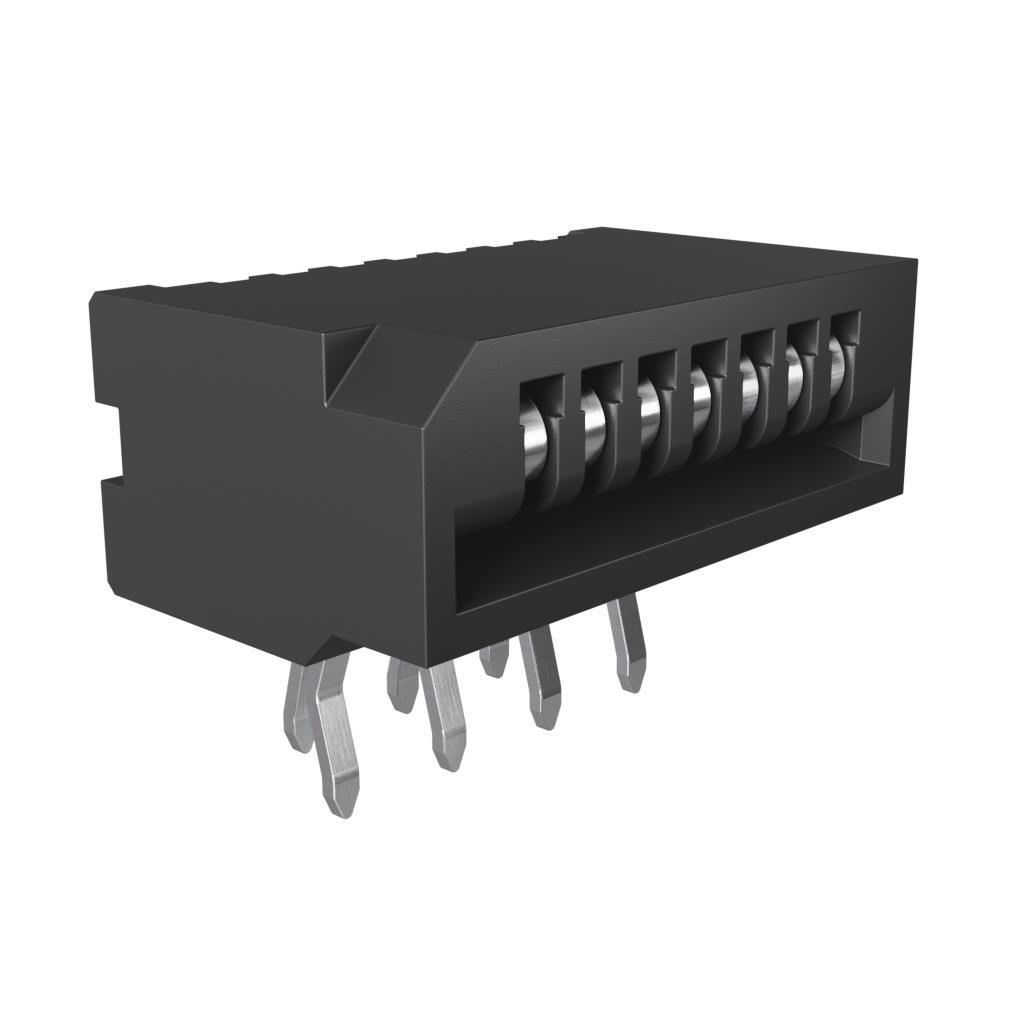

Amphenol ICC (FCI) HLW7R-2C7LF	30	Black	Phosphor Bronze	Right Angle Through Hole	Kinked Pin	Polybutylene Terephthalate (PBT) Glass Filled	-55 C	85 °C	Straight Tapered	Tin	0.154 in	3.9 mm	7	FFC FPC	UL94 V-0		100 V	Contacts Top	1 mm	0.039 in	Black	0.3 mm	0.33 mm
