SUS32415 Series

Catalog

DC DC CONVERTER 15V

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Mounting Type	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Isolation	Number of Outputs	Type	Voltage - Input (Max) [Max]	Package / Case	Efficiency	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Power (Watts)

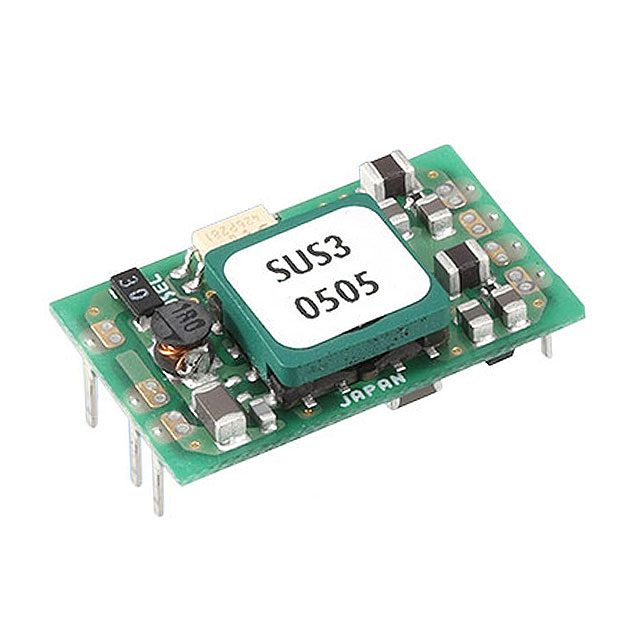

Cosel USA, Inc. SUS32415C	0.59 in	0.94 in	24 mm	6.5 mm	15.1 mm	0.26 in	OCP Remote On/Off	Through Hole	15 V	-40 °C	85 °C	ITE (Commercial)	500 V	1	Isolated Module	36 V	6-DIP Module	80 %	200 mA	18 V

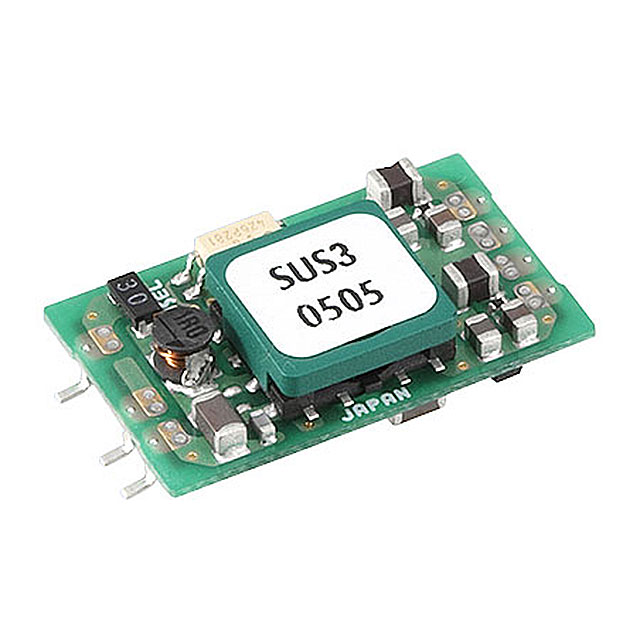

Cosel USA, Inc. SUS32415BP	0.59 in	0.94 in	24 mm	6.5 mm	15.1 mm	0.26 in		Surface Mount	15 V	-40 °C	85 °C	ITE (Commercial)	500 V	1	Isolated Module	36 V	6-SMD Module	80 %	200 mA	18 V	3 W
Cosel USA, Inc. SUS32415C-G	0.59 in	0.94 in	24 mm	6.5 mm	15.1 mm	0.26 in		Through Hole	15 V	-40 °C	85 °C	ITE (Commercial)	500 V	1	Isolated Module	36 V	6-DIP Module	80 %	200 mA	18 V	3 W
Cosel USA, Inc. SUS32415B	0.59 in	0.94 in	24 mm	6.5 mm	15.1 mm	0.26 in	OCP Remote On/Off	Surface Mount	15 V	-40 °C	85 °C	ITE (Commercial)	500 V	1	Isolated Module	36 V	6-SMD Module	80 %	200 mA	18 V
