88637 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN FFC RCPT HSG 18POS 2.54MM

Part	Insulation Diameter	Insulation Diameter	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Note	Housing Color	Locking Feature	Connector Type	Features	Number of Positions	Flat Flex Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Housing Material	FFC, FCB Thickness	Pitch	Pitch	Number of Rows [custom]	Material Flammability Rating
TE Connectivity AMP Connectors 88637-9	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	18	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0

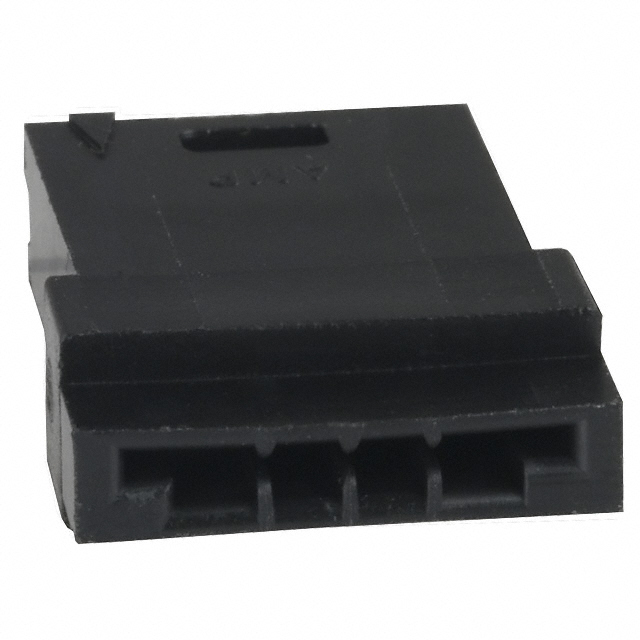

TE Connectivity AMP Connectors 88637-3	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	16	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
TE Connectivity AMP Connectors 1-88637-1	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	20	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
TE Connectivity AMP Connectors 3-88637-5	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	70	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
TE Connectivity AMP Connectors 3-88637-0	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	58	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
TE Connectivity AMP Connectors 1-88637-0	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	18	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
TE Connectivity AMP Connectors 1-88637-7	0.069 in	1.75 mm	22 AWG	32 AWG	1.5 A	Contacts Not Included	Black	Detent Lock	Housing for Female Contacts	Flange Positions Stamped	28	Discrete Wire FFC	105 ░C	-65 ░C	300 VDC	Glass Filled Nylon Polyamide (PA)	0.015 mm	0.1 "	2.54 mm	2	UL94 V-0
