502078 Series

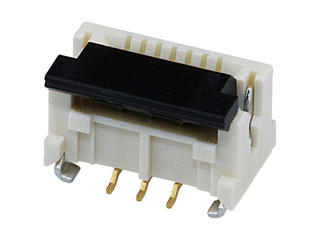

0.25mm Pitch Easy-On FPC Connector, 1.00mm Mated Height, Right-Angle, Surface Mount, Bottom Contact Style, 17 Circuits, Halogen-Free, 3000 Pieces per Reel

Manufacturer: Molex

Catalog

0.25mm Pitch Easy-On FPC Connector, 1.00mm Mated Height, Right-Angle, Surface Mount, Bottom Contact Style, 17 Circuits, Halogen-Free, 3000 Pieces per Reel

Part	Termination	Height Above Board [z]	Height Above Board [z]	Housing Color	Voltage Rating	Actuator Material	Mounting Type	Material Flammability Rating	Flat Flex Type	Cable End Type	Contact Finish	FFC, FCB Thickness	Connector/Contact Type	Contact Material	Number of Positions	Current Rating (Amps)	Mating Cycles	Actuator Color	Pitch [x]	Pitch [x]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Locking Feature
Molex 5020781360	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	13	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020781760	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze		0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020785162	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	51	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020783762	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	37	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020783362	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	33	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock

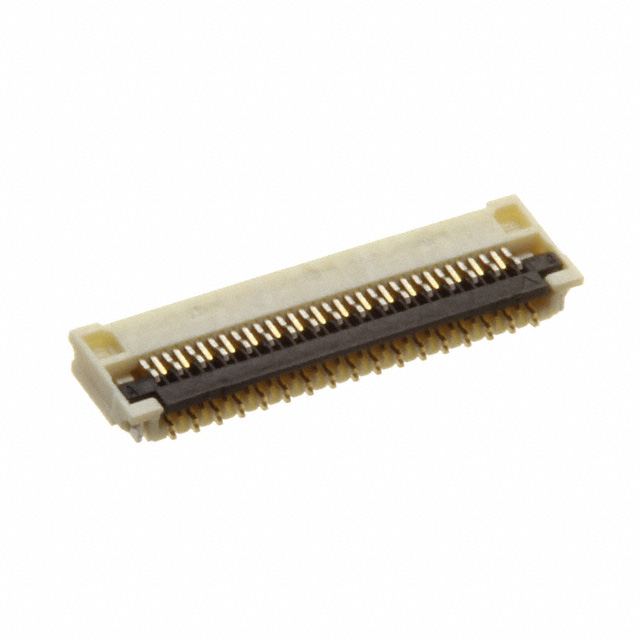

Molex 5020783310	Solder	1 mm	0.039 in	Beige	50 V	Glass Filled Plastic	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Copper Alloy	33	0.2 A	10	Black	0.01 in	0.25 mm	Plastic Glass Filled	85 °C	-20 C	Flip Lock

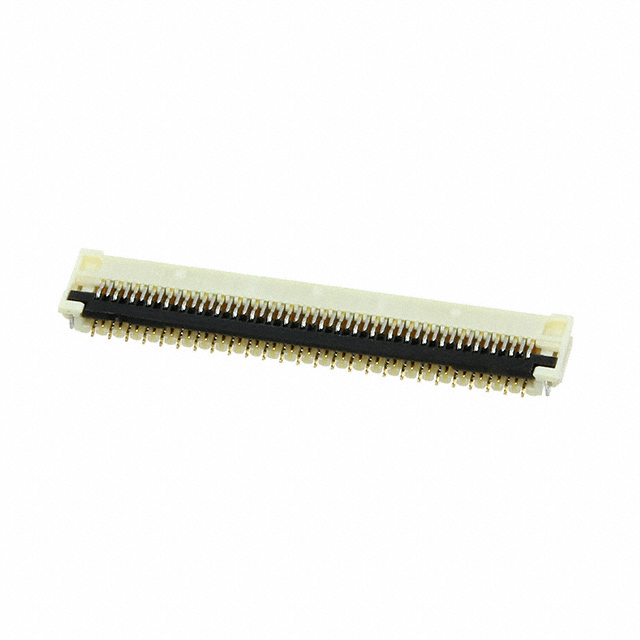

Molex 5020785110	Solder	1 mm	0.039 in	Beige	50 V	Glass Filled Plastic	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Copper Alloy	51	0.2 A	10	Black	0.01 in	0.25 mm	Plastic Glass Filled	85 °C	-20 C	Flip Lock
Molex 5020786160	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	61	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020781762	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze		0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
Molex 5020786162	Solder	1 mm	0.039 in	Beige	50 V	Nylon Polyamide (PA)	Surface Mount Right Angle	UL94 HB UL94 V-0	FPC	Tapered	Gold	0.2 mm	Contacts Bottom	Phosphor Bronze	61	0.2 A	10	Black	0.01 in	0.25 mm	Liquid Crystal Polymer (LCP)	85 °C	-20 C	Flip Lock
