WLS15CGR Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

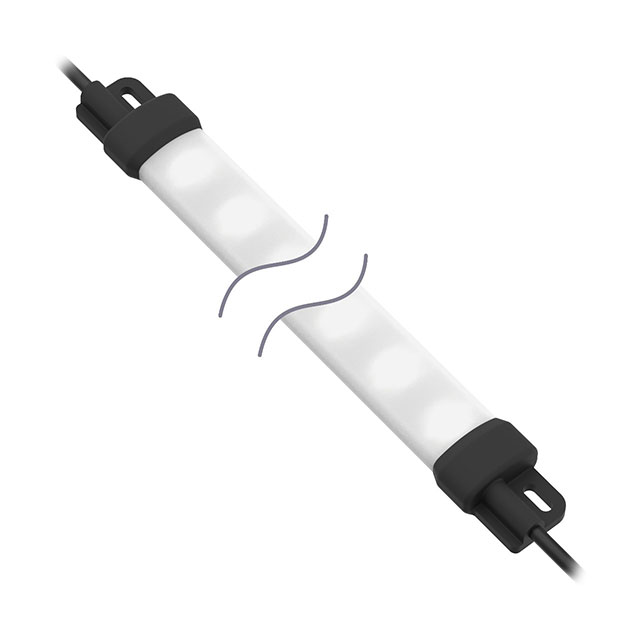

DUAL COLOR LIGHT STRIP 920MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Lens Type | Voltage - Supply [Max] | Voltage - Supply [Min] | Approval Agency | Termination Style | Illumination Color | Luminous Flux [custom] | Luminous Flux [custom] | Length [x] | Length [x] | Housing Material | Features | Ingress Protection | Profile (W x H) [y] | Profile (W x H) [x] | Profile (W x H) [x] | Profile (W x H) [y] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 60 °C | -40 C | Diffused Flat | 24 V | 12 VDC | CE cULus | Cable with Connector (M12) | Green Red | 330 lm | 630 lm | 36.22 in | 920 mm | Aluminum (Al) | Cascadable | IP66 IP67 | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | ||
BANNER ENGINEERING | 60 °C | -40 C | Diffused Flat | 24 V | 12 VDC | CE cULus | Cable with Connector (M12) | Green Red | 110 lm | 210 lm | 14.17 in | 360 mm | Aluminum (Al) | Cascadable | IP66 IP67 | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | ||
BANNER ENGINEERING | 60 °C | -40 C | Diffused Flat | 24 V | 12 VDC | CE cULus | Cable with Connector (M12) | Green Red | 55 lm | 105 lm | Aluminum (Al) | Cascadable | IP66 IP67 | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 220 mm | 8.66 in | ||
BANNER ENGINEERING | 60 °C | -40 C | Diffused Flat | 24 V | 12 VDC | CE cULus | Cable with Connector (M12) | Green Red | Aluminum (Al) | Cascadable | IP66 IP67 | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 1200 mm | 47.24 in | ||||
BANNER ENGINEERING | 60 °C | -40 C | Diffused Flat | 24 V | 12 VDC | CE cULus | Cable with Connector (M12) | Green Red | 220 lm | 420 lm | Aluminum (Al) | Cascadable | IP66 IP67 | 0.61 in | 1.2 in | 30.6 mm | 15.5 mm | 640 mm | 25.2 in |
