20HV13B Series

Manufacturer: KEMET

Catalog

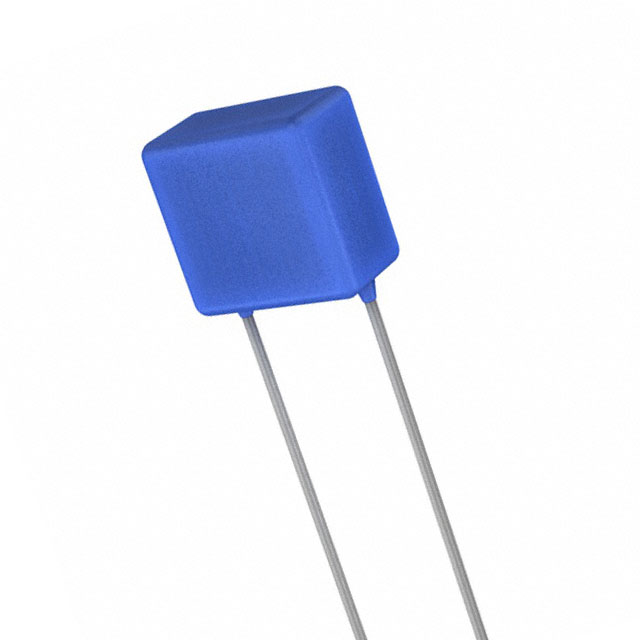

CAP CER 10000PF 2KV X7R RADIAL

Part	Voltage - Rated	Voltage - Rated	Applications	Tolerance	Temperature Coefficient	Lead Spacing	Lead Spacing	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Capacitance	Lead Style	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance [Max]	Tolerance [Min]
KEMET 20HV13B103MN	2000 V	2 kV	Downhole	20 %	X7R	0.4 "	10.16 mm	7.62 mm	0.3 "	0.52 in	13.21 mm	10000 pF	Straight	Radial	0.5 in	12.7 mm	High Temperature High Voltage	Through Hole	200 °C	-55 C
KEMET 20HV13B103PN	2000 V	2 kV	Downhole		X7R	0.4 "	10.16 mm	7.62 mm	0.3 "	0.52 in	13.21 mm	10000 pF	Straight	Radial	0.5 in	12.7 mm	High Temperature High Voltage	Through Hole	200 °C	-55 C	100 %	0 %
