039870 Series

Manufacturer: Molex

Catalog

TERM BLOCK PLUG 12POS STR 5MM

Part	Voltage - UL	Screw Size	Insulation Height [z]	Insulation Height [z]	Termination Style	Number of Positions	Contact Material	Operating Temperature	Mounting Type	Contact Mating Finish	Positions Per Level	Pitch [x]	Pitch [x]	Type	Number of Levels	Housing Material	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Tail Length	Contact Tail Length	Header Orientation	Insulation Height	Insulation Height

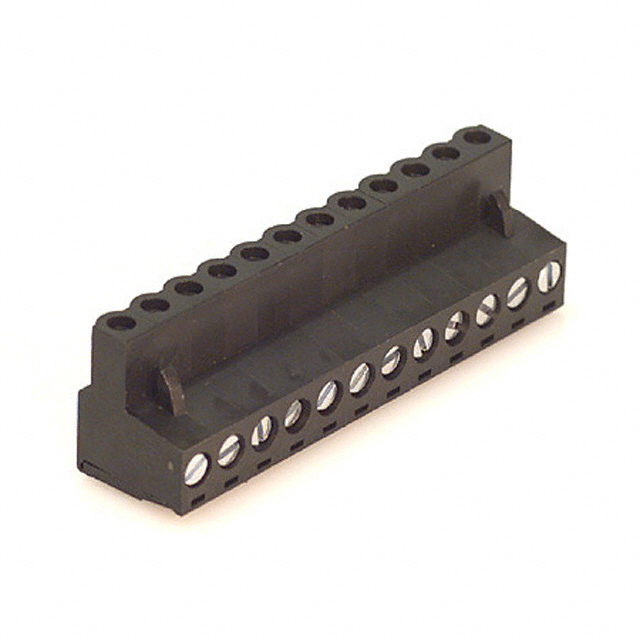

Molex 0398700112	300 V	M3	0.587 in	14.91 mm	Screw - Rising Cage Clamp	12	Phosphor Bronze	110 °C	Free Hanging (In-Line)	Tin	12	5 mm	0.197 in	Plug Female Sockets	1	Thermoplastic	Black	12 AWG	26 AWG

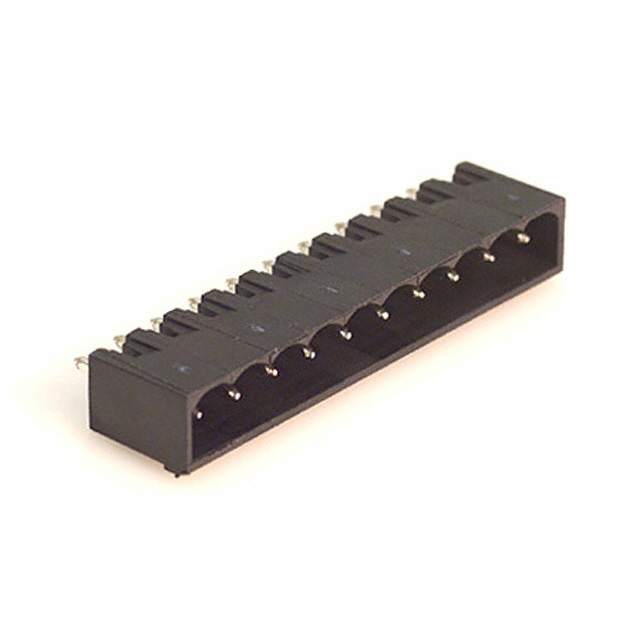

Molex 0398700510	300 V				Solder	10	Brass	110 °C	Through Hole	Tin	10	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Thermoplastic	Black			4.32 mm	0.17 in	Vertical	0.472 in	12 mm

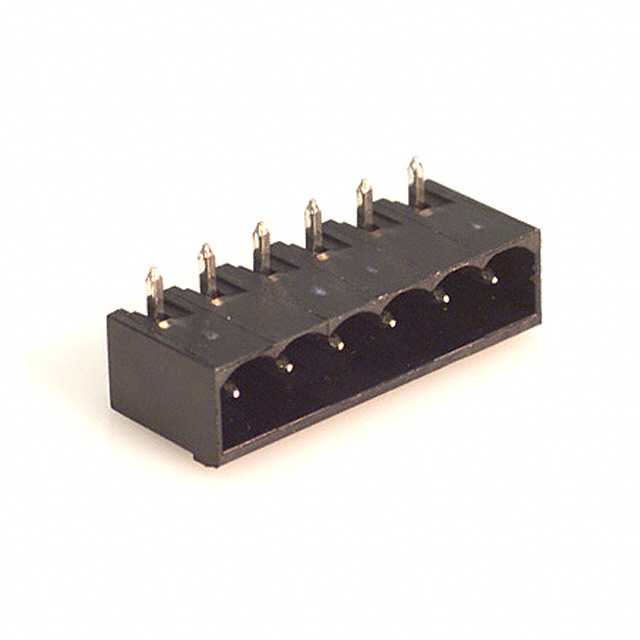

Molex 0398700706	300 V				Solder	6	Brass	110 °C	Through Hole	Tin	6	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Polyamide (PA) Nylon	Black			3.3 mm	0.13 in	90° Right Angle	0.331 in	8.4 mm
Molex 0398700110	300 V	M3	0.587 in	14.91 mm	Screw - Rising Cage Clamp	10	Phosphor Bronze	110 °C	Free Hanging (In-Line)	Tin	10	5 mm	0.197 in	Plug Female Sockets	1	Thermoplastic	Black	12 AWG	26 AWG

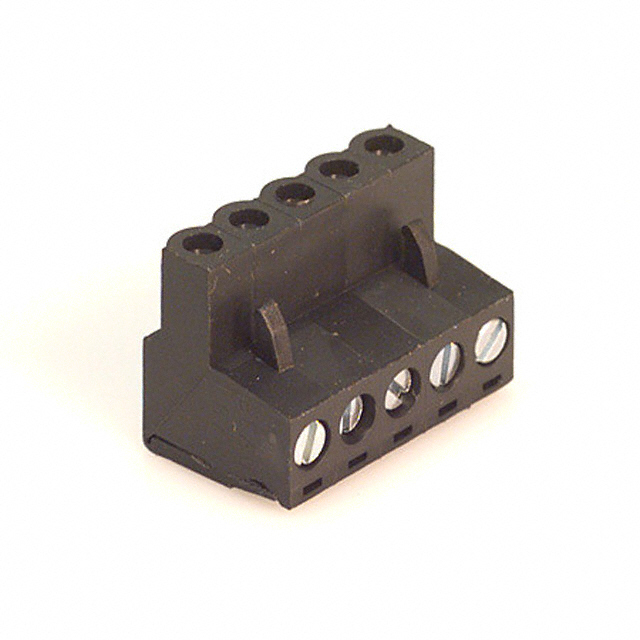

Molex 0398700105	300 V	M3	0.587 in	14.91 mm	Screw - Rising Cage Clamp		Phosphor Bronze	110 °C	Free Hanging (In-Line)	Tin	5	5 mm	0.197 in	Plug Female Sockets	1	Thermoplastic	Black	12 AWG	26 AWG

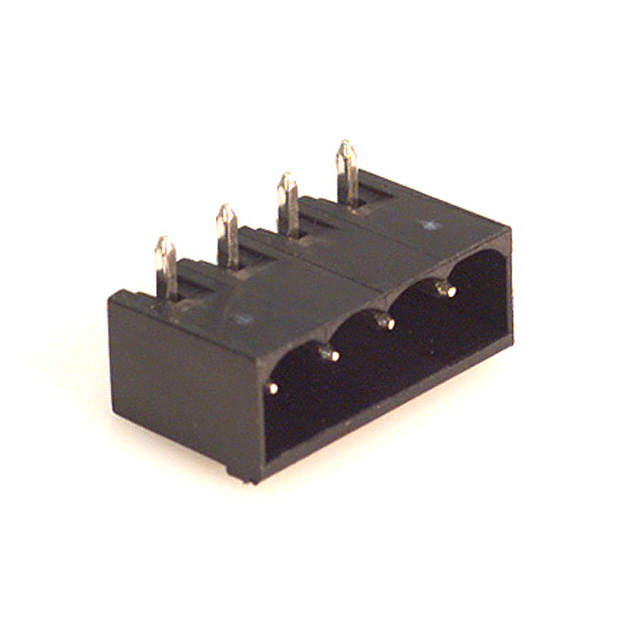

Molex 0398700704	300 V				Solder	4	Brass	110 °C	Through Hole	Tin	4	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Polyamide (PA) Nylon	Black			3.3 mm	0.13 in	90° Right Angle	0.331 in	8.4 mm

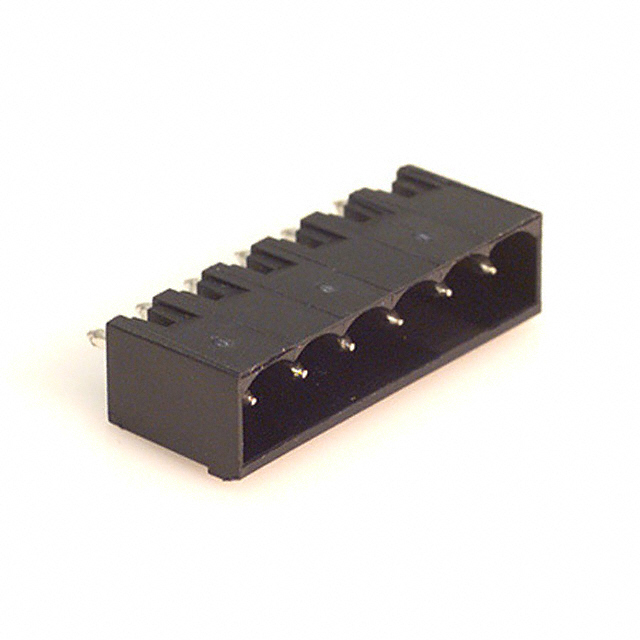

Molex 0398700506	300 V				Solder	6	Brass	110 °C	Through Hole	Tin	6	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Thermoplastic	Black			4.32 mm	0.17 in	Vertical	0.472 in	12 mm

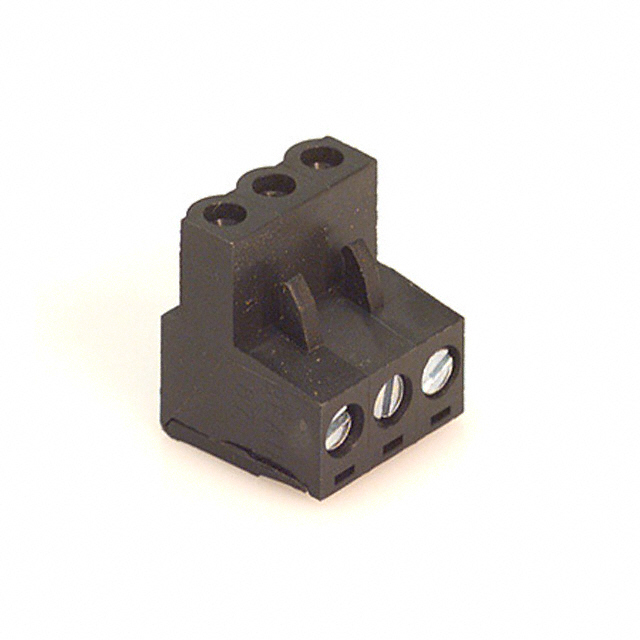

Molex 0398700103	300 V	M3	0.587 in	14.91 mm	Screw - Rising Cage Clamp		Phosphor Bronze	110 °C	Free Hanging (In-Line)	Tin	3	5 mm	0.197 in	Plug Female Sockets	1	Thermoplastic	Black	12 AWG	26 AWG

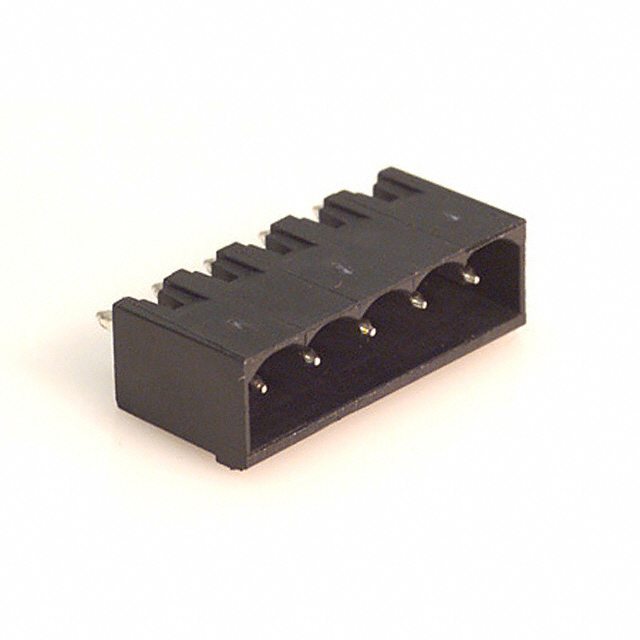

Molex 0398700505	300 V				Solder		Brass	110 °C	Through Hole	Tin	5	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Thermoplastic	Black			4.32 mm	0.17 in	Vertical	0.472 in	12 mm

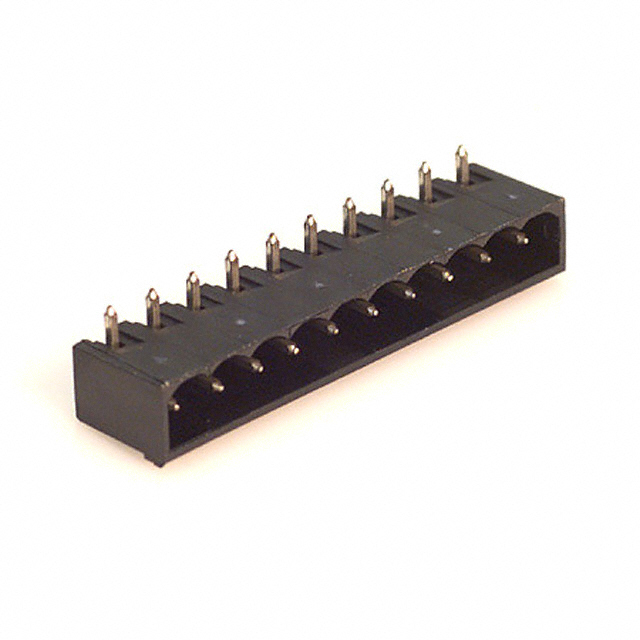

Molex 0398700710	300 V				Solder	10	Brass	110 °C	Through Hole	Tin	10	5 mm	0.197 in	Header Male Pins Shrouded (4 Side)	1	Polyamide (PA) Nylon	Black			3.3 mm	0.13 in	90° Right Angle	0.331 in	8.4 mm
