5300 Series

Catalog

FIXED IND 10UH 1.5A 95 MOHM TH

Part	Frequency - Self Resonant	Package / Case	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Material - Core	Type	Tolerance	Inductance	Current - Saturation (Isat)	Shielding	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR)	DC Resistance (DCR)	DC Resistance (DCR) [Max]

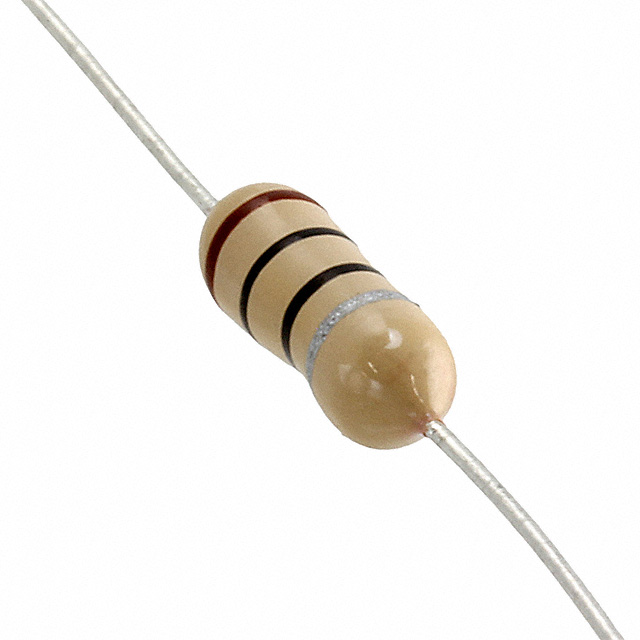

Bourns Inc. 5300-13	25 MHz	Axial	1 kHz	-55 C	105 ░C	1.5 A	Ferrite	Drum Core Wirewound	10 %	10 µH	970 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in	95 mOhm
Bourns Inc. 5300-15-RC	13 MHz	Axial	1 kHz	-55 C	105 ░C	1.2 A	Ferrite	Drum Core Wirewound	10 %	15 µH	790 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in		150 mOhm
Bourns Inc. 5300-34-RC	1.3 MHz	Axial	1 kHz	-55 C	105 ░C	0.21 A	Ferrite	Drum Core Wirewound	10 %	560 µH	130 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in			4.7 Ohm
Bourns Inc. 5300-02-RC	170 MHz	Axial	7.96 MHz	-55 C	105 ░C	3.2 A	Ferrite	Drum Core Wirewound	10 %	1.2 µH	2.7 A	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in		19 mOhm

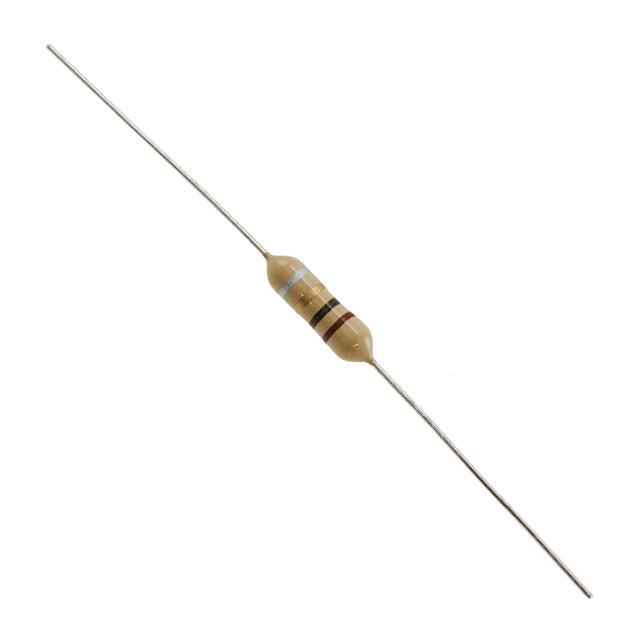

Bourns Inc. 5300-01-RC	190 MHz	Axial	7.96 MHz	-55 C	105 ░C	3.3 A	Ferrite	Drum Core Wirewound	10 %	1 µH	3 A	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in			18 mOhm
Bourns Inc. 5300-46-RC	400 kHz	Axial	1 kHz	-55 C	105 ░C	63 mA	Ferrite	Drum Core Wirewound	10 %	5.6 mH	40 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in			50 Ohm
Bourns Inc. 5300-43-RC	530 kHz	Axial	1 kHz	-55 C	105 ░C	0.083 A	Ferrite	Drum Core Wirewound	10 %	3300 µH	52 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in			29 Ohm

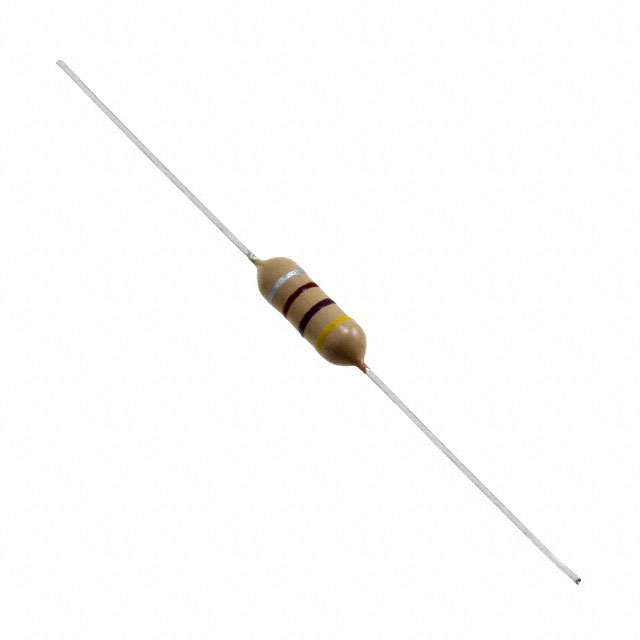

Bourns Inc. 5300-33-RC	1.4 MHz	Axial	1 kHz	-55 C	105 ░C	0.24 A	Ferrite	Drum Core Wirewound	10 %	470 µH	140 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in			3.4 Ohm
Bourns Inc. 5300-10-RC	64 MHz	Axial	7.96 MHz	-55 C	105 ░C	1.6 A	Ferrite	Drum Core Wirewound	10 %	5.6 µH	1.3 A	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in		74 mOhm
Bourns Inc. 5300-23-RC	4.3 MHz	Axial	1 kHz	-55 C	105 ░C	0.61 A	Ferrite	Drum Core Wirewound	10 %	68 µH	370 mA	Unshielded	Through Hole	12.7 mm	0.5 in	4.06 mm	0.16 in		530 mOhm
