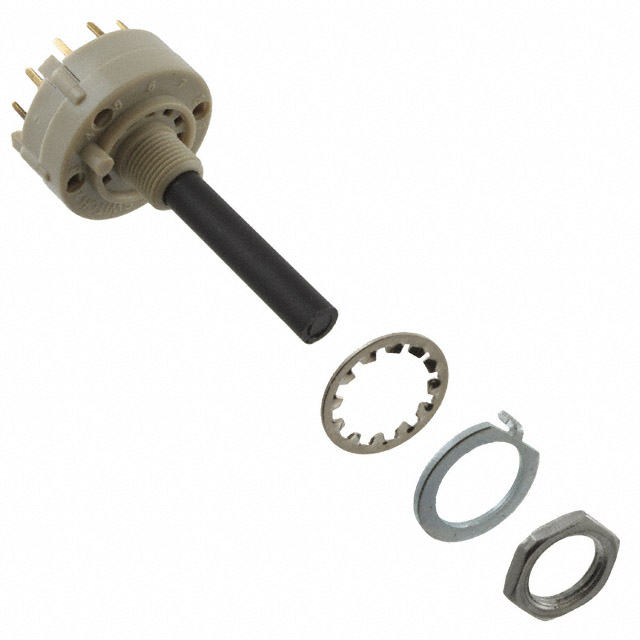

KC34B3 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH ROTARY 4POS 350MA 125V
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Actuator Type [diameter] | Actuator Type | Circuit per Deck | Actuator Length [x] | Number of Decks [custom] | Contact Timing | Contact Material | Number of Positions | Index Stops | Current Rating (Amps) | Angle of Throw | Termination Style | Depth Behind Panel [z] | Mounting Type | Voltage Rating - AC | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 9.8 mm | 3 | 6 mm | Round | 3P4T | 30 mm | 1 | Non-Shorting (BBM) | Copper Alloy | 4 | Fixed | 350 mA | 30 ° | PC Pin | 14.2 mm | Panel Mount Through Hole | 125 V | Gold |
 E-Switch | 10.2 mm | 3 | 6 mm | Round | 3P4T | 30 mm | 1 | Non-Shorting (BBM) | Copper Alloy | 4 | Fixed | 350 mA | 30 ° | PC Pin | 14.2 mm | Panel Mount Through Hole | 125 V | Silver |
