AGC07 Series
Manufacturer: TE Intercontec
Beta
⌘K

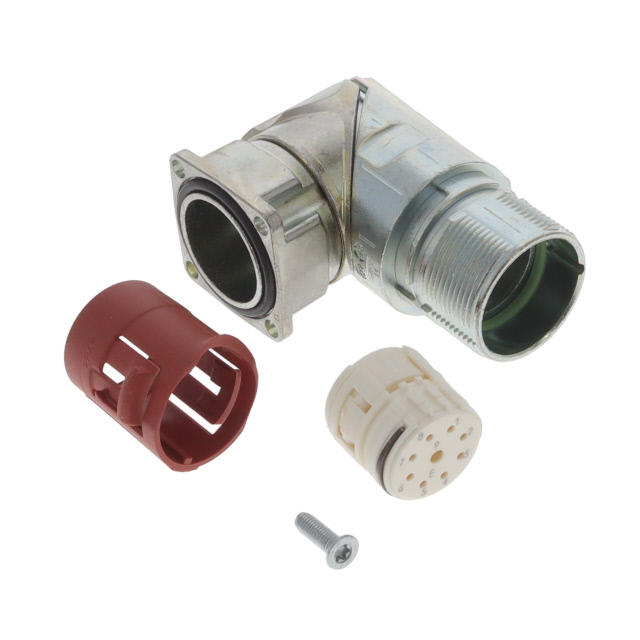

CONN RCPT HSG MALE 9P PNL MT RA
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Positions | Contact Shape | Insert Material | Features | Shell Size - Insert | Includes | Housing Color | Material Flammability Rating | Shielding | Type | Orientation | Note | Shell Material | Mounting Feature | Fastening Type | Shell Finish | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Panel Mount Right Angle | -20 ░C | 130 °C | Receptacle Housing | 9 | Circular | Polybutylene Terephthalate (PBT) | Backshell Rotatable | M23-9 | 1 Backshell 1 Connector 1 O-Ring | Silver | UL94 V-0 | Unshielded | For Male Pins | Keyed | Contacts Not Included | Zinc Die Cast | Flange | Push-Twist | Chromate | IP66 IP67 |
TE Intercontec | Panel Mount Right Angle | -20 ░C | 130 °C | Receptacle Housing | 9 | Circular | Polybutylene Terephthalate (PBT) | Backshell Rotatable | M23-9 | 1 Backshell 1 Connector 1 O-Ring | Silver | UL94 V-0 | Unshielded | For Male Pins | Keyed | Contacts Not Included | Zinc Die Cast | Flange | Push-Twist | Chromate | IP66 IP67 |
