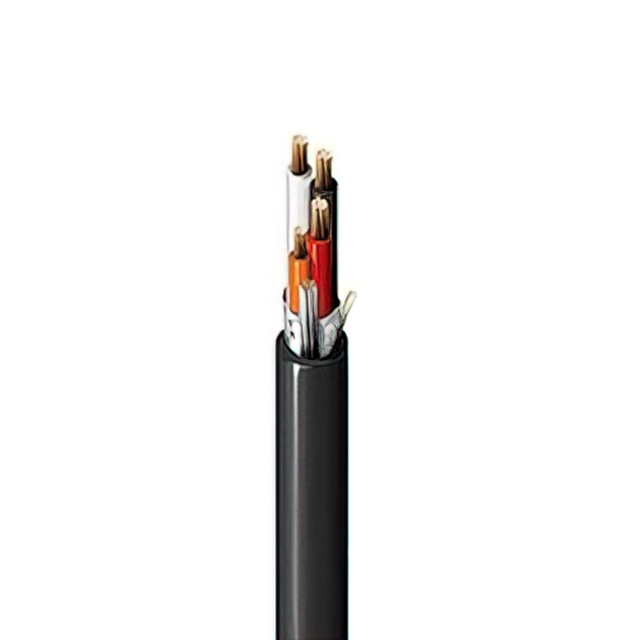

1085A Series
Manufacturer: Belden Inc.
Beta
⌘K
CABLE 37COND 20AWG/22AWG
| Part | Shield Material | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Conductor Strand [custom] | Conductor Strand [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Shield Type | Cable Type | Jacket (Insulation) Material | Jacket Color | Conductor Material | Conductor Insulation | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Voltage | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | -30 ░C | 105 ░C | UL Style 2464 | 28 30 | 7 | 19.58 mm | 0.771 in | Foil | Multi-Triad | Poly-Vinyl Chloride (PVC) | Black | Copper Bare | Poly-Vinyl Chloride (PVC) | 37 | 1.6 mm | 0.063 in | 20 22 | 300 VDC | Drain Wire Rip Cord |
