AOT5 Series

Catalog

MOSFET N-CH 33V 80A TO220

Part	FET Type	Package / Case	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Power Dissipation (Max)	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Supplier Device Package	Input Capacitance (Ciss) (Max) @ Vds [Max]	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Max]	Operating Temperature [Min]	Technology	Gate Charge (Qg) (Max) @ Vgs [Max]	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)	Test Condition	Reverse Recovery Time (trr)	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Pulsed (Icm)	Td (on/off) @ 25°C [Min]	Td (on/off) @ 25°C [Max]	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Switching Energy	Gate Charge

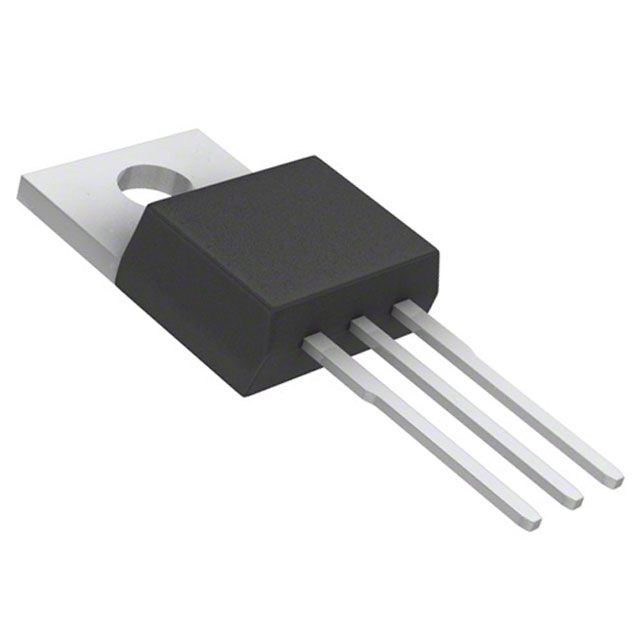

Alpha & Omega Semiconductor Inc. AOT500	N-Channel	TO-220-3	5.3 mOhm	3 V	115 W	Through Hole	89 nC	TO-220	5500 pF	10 V	175 °C	-55 °C	MOSFET (Metal Oxide)
Alpha & Omega Semiconductor Inc. AOT5N60	N-Channel	TO-220-3	1.8 Ohm	4.5 V	132 W	Through Hole		TO-220		10 V	150 °C	-55 °C	MOSFET (Metal Oxide)	20 nC	600 V	700 pF	5 A	30 V
Alpha & Omega Semiconductor Inc. AOT5B60D		TO-220-3				Through Hole		TO-220			175 °C	-55 °C							5 A 15 V 60 Ohm 400 V	98 ns	600 V	20 A	12 ns	83 ns	1.8 V	23 A	82.4 W	40 µJ 140 µJ	9.4 nC
