EPSA240100 Series

Manufacturer: CUI Inc.

Catalog

AC/DC WALL MOUNT ADAPTER 24V 24W

Part	Input Connector	Form	Output Connector	Output Connector [diameter]	Output Connector [x]	Applications	Operating Temperature [Max]	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Cord Length	Cord Length	Approval Agency	Input Type	Region Utilized	No Load Power Consumption	Current - Output (Max) [Max]	Voltage - Output	Polarization	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Output Connector [z]

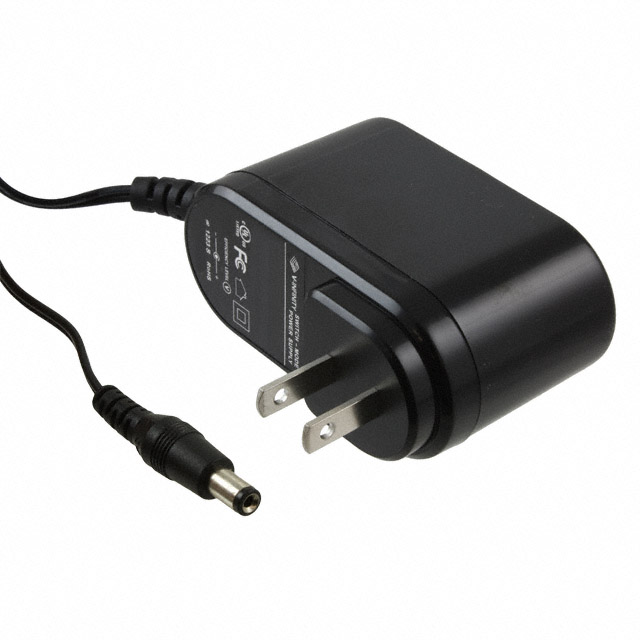

CUI Inc. EPSA240100U-P5P-SZ	NEMA 1-15P	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	ITE (Commercial)	40 °C	Level V	264 VAC	90 VAC	60.2 in	1.53 m	cULus	Fixed Blade	North America	300 mW	1 A	24 V	Positive Center	80 mm	53.6 mm	2.11 in	1.38 in	3.15 "	35 mm	24 W

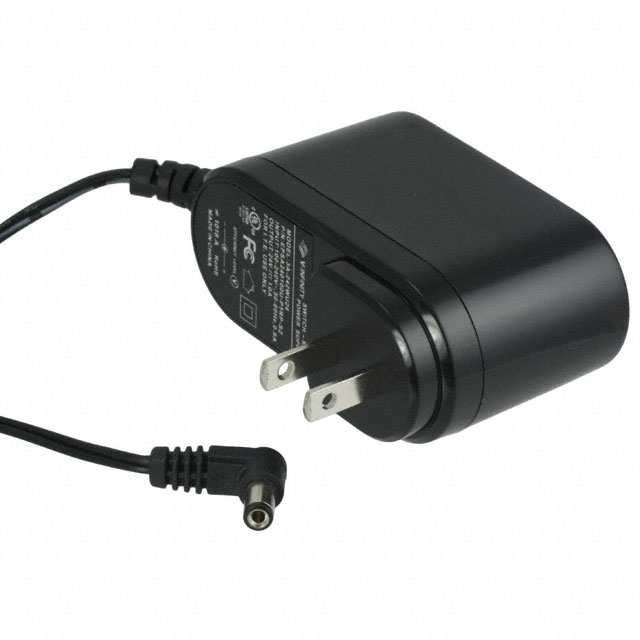

CUI Inc. EPSA240100U-P6RP-SZ	NEMA 1-15P	Wall Mount	Barrel Plug R/A	2.5 mm 5.5 mm		ITE (Commercial)	40 °C	Level V	264 VAC	90 VAC	60.2 in	1.53 m	cULus	Fixed Blade	North America	300 mW	1 A	24 V	Positive Center	80 mm	53.6 mm	2.11 in	1.38 in	3.15 "	35 mm	24 W	9.5 mm
CUI Inc. EPSA240100U-P5N-SZ	NEMA 1-15P	Wall Mount	Barrel Plug	2.1 mm 5.5 mm	9.5 mm	ITE (Commercial)	40 °C	Level V	264 VAC	90 VAC	60.2 in	1.53 m	cULus	Fixed Blade	North America	300 mW	1 A	24 V	Negative Center	80 mm	53.6 mm	2.11 in	1.38 in	3.15 "	35 mm	24 W
