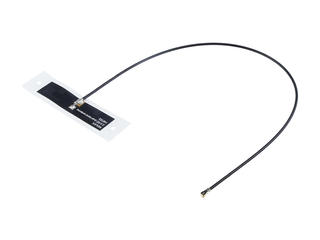

Wi-Fi 6E Flex Cabled Balanced Antenna, 9.00mm Width, 200.00mm Cable Length, Compatible with I-PEX MHF4 Connectors
Wi-Fi 6E Flex Cabled Balanced Antenna, 9.00mm Width, 200.00mm Cable Length, Compatible with I-PEX MHF4 Connectors
Wi-Fi 6E Flex Cabled Balanced Antenna, 9.00mm Width, 200.00mm Cable Length, Compatible with I-PEX MHF4 Connectors
| Part | Frequency Group | Frequency Range [Max] | Frequency Range [Min] | Termination | Return Loss | Features | Number of Bands | Antenna Type | RF Family/Standard | Frequency (Center/Band) | Height (Max) [z] | Applications | Mounting Type | Gain | Height (Max) [z] | Power - Max [Max] | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Wide Band | 2.5 GHz 5.85 GHz 7.125 GHz | 2.4 GHz 5.15 GHz 5.925 GHz | MHF1 | -10 dB | Cable - 50mm | 3 | Flat Patch | 802.15.4 Bluetooth WiFi | 2.45 GHz 5.5 GHz 6525 MHz | 0.079 in 2 mm | Bluetooth Wi-Fi Zigbee™ | Adhesive | 3.2 dBi 4.2 dBi | ||||
 Molex | SHF UHF | 5 GHz | 2.4 GHz | I-PEX MHF4L | -10 dB | Cable - 150mm | 2 | PCB Trace | 802.15.4 WiFi | 2.4417 GHz 5.415 GHz | 0.1 mm | Wi-Fi Zigbee™ | Adhesive | 2.8 dBi 3.7 dBi | 0.004 in | |||
 Molex | SHF UHF | 5 GHz | 2.4 GHz | I-PEX MHF4L | -10 dB | 2 | PCB Trace | 802.15.4 WiFi | 2.4417 GHz 5.415 GHz | 0.1 mm | Wi-Fi Zigbee™ | Adhesive | 2.4 dBi 3.2 dBi | 0.004 in | ||||
 Molex | SHF UHF | 2.483 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | I-PEX MHF1 U.FL (UMCC) | -10 dB | Cable - 50mm | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 3.2 dBi 4.75 dBi | 0.004 in | 2 W | ||
 Molex | SHF UHF | 2 | 2.4 GHz 5 GHz | |||||||||||||||
 Molex | SHF UHF | 2.483 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | I-PEX MHF1 U.FL (UMCC) | -10 dB | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 2.4 dBi 3.7 dBi | 0.004 in | 2 W | |||
 Molex | SHF UHF | I-PEX MHF4L | -10 dB | Cable - 200mm | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 3 dBi 4.5 dBic | 0.004 in | 2 W | ||||
 Molex | SHF UHF | I-PEX MHF4L IPEX MHF4L | -10 dB | Cable | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 3 dBi 4.5 dBic | 0.004 in | 2 W | 100 mm | |||
Molex | SHF UHF | 2.483 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | I-PEX MHF1 U.FL (UMCC) | -10 dB | Cable - 150mm | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 2.8 dBi 4.2 dBi | 0.004 in | 2 W | IPEX MHF1 | |
 Molex | SHF UHF | 2.483 GHz 5.85 GHz | 2.4 GHz 5.15 GHz | I-PEX MHF1 U.FL (UMCC) | -10 dB | Cable - 300mm | 2 | Flat Patch | 802.15.4 WiFi | 2.4 GHz 5 GHz | 0.1 mm | WLAN Zigbee™ | Adhesive | 2.2 dBi 3.3 dBi | 0.004 in | 2 W |
