BPWX 2 Series

Catalog

AC/DC CONVERTER 14V 3.3V 1.5W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Applications	Voltage - Output 1	Mounting Type	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Number of Outputs	Type	Efficiency	Approval Agency	Current - Output (Max)
Cita Technologies, LLC. BPWX 2-14-33	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm	70 mA	143 mA	ITE (Commercial)	14 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C	1.5 W	2	Enclosed	70 %	CB cURus
Cita Technologies, LLC. BPWX 2-08-33	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm	160 mA	250 mA	ITE (Commercial)	8 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C	2.1 W	2	Enclosed	70 %	CB cURus
Cita Technologies, LLC. BPWX 2-08-00	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm			ITE (Commercial)	8 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C		1	Enclosed	70 %	CB cURus
Cita Technologies, LLC. BPWX 2-14-00	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm			ITE (Commercial)	14 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C		1	Enclosed	70 %	CB cURus

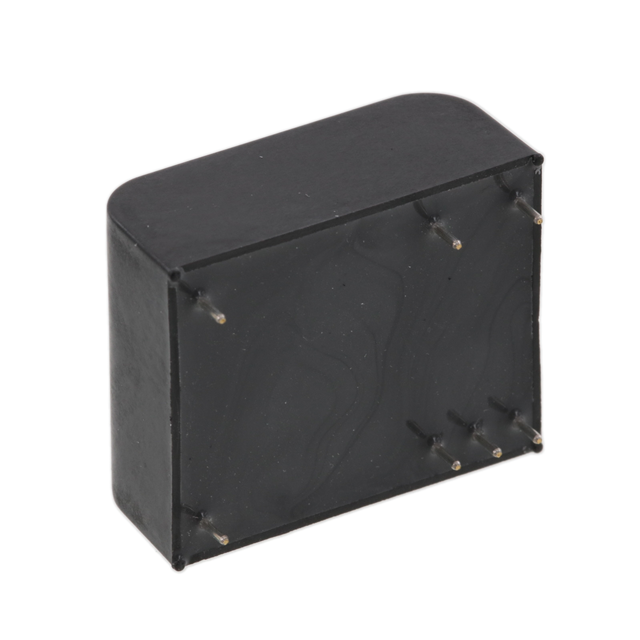

Cita Technologies, LLC. BPWX 2-08-50	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm			ITE (Commercial)	8 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C	3.3 W	2	Enclosed	70 %	CB cURus	250 mA
Cita Technologies, LLC. BPWX 2-14-50	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm	83 mA	143 mA	ITE (Commercial)	14 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C	1.9 W	2	Enclosed	70 %	CB cURus
Cita Technologies, LLC. BPWX 2-24-00	0.58 in	1.12 in	1.35 in	28.4 mm	34.2 mm	14.8 mm			ITE (Commercial)	24 V	Through Hole	7-DIP Module	308 VAC	90 VAC	85 °C	-40 C		1	Enclosed	70 %	CB cURus
