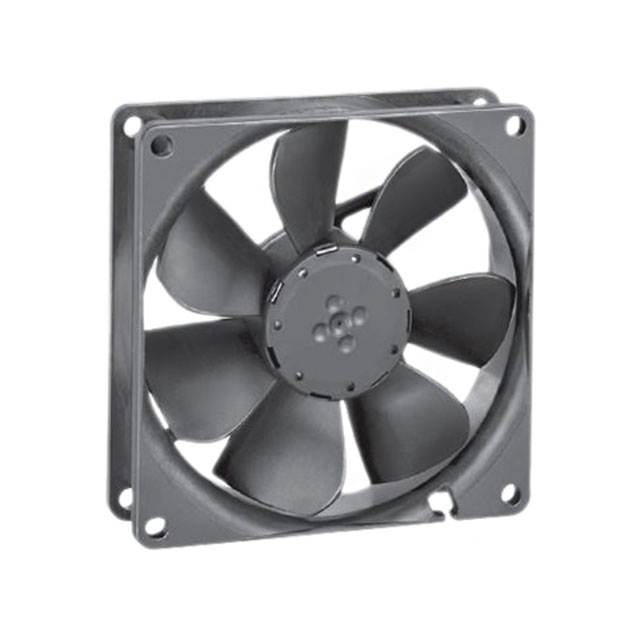

3414N Series

Catalog

FAN AXIAL 92X25.4MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Bearing Type	Operating Temperature [Min]	Operating Temperature [Max]	Fan Type	Termination	Width [y]	Power (Watts)	RPM	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Weight	Weight	Air Flow	Noise	Ingress Protection	Features	Current Rating (Amps)	Lifetime @ Temp.	Static Pressure	Static Pressure
ebm-papst Inc. 3414NL	1.01 m³/min	35.9 CFM	Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	28 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	80000 Hrs	Ball	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	1.4 W	1950 RPM	24 VDC	92 mm	92 mm	CSA UL VDE	99.79 g	0.22 lb	35.9 CFM	23 dB(A)
ebm-papst Inc. 3414NGL	1.01 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	28 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	80000 Hrs	Sintec	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	1.4 W	1950 RPM	24 VDC	92 mm	92 mm	CSA UL VDE	99.79 g	0.22 lb	35.9 CFM	23 dB(A)
ebm-papst Inc. 3414NMU-603			Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	28 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)		Ball	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	1.4 W	2300 RPM	24 VDC	92 mm	92 mm	UL	99.79 g	0.22 lb		28 dB	IP68 - Dust Tight Waterproof
ebm-papst Inc. 3414NGH	1.55 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	26 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	70000 Hrs	Sintec	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	3 W	3000 RPM	24 VDC	92 mm	92 mm	CSA UL VDE	99.79 g	0.22 lb	55.3 CFM	36 dB

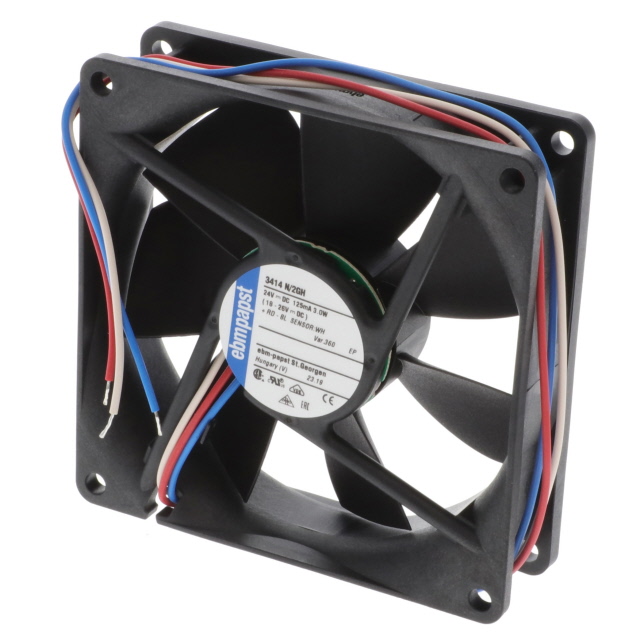

ebm-papst Inc. 3414N/2GH	1.55 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	26 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	70000 Hrs	Sintec	-20 ░C	70 °C	Tubeaxial	3 Wire Leads	25.4 mm	3 W	3000 RPM	24 VDC	92 mm	92 mm				55.4 CFM	39 dB(A)		Speed Sensor (Tach)
ebm-papst Inc. 3414N/39HH	1.68 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	26 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)		Ball	-20 ░C	70 °C	Tubeaxial	3 Wire Leads	25.4 mm	3.2 W	3250 RPM	24 VDC	92 mm	92 mm	CCC CE CSA EAC UL VDE			60 CFM	38 dB(A)			135 mA	Varies Based on Temperature	0.229 in H2O	57 Pa
ebm-papst Inc. 3414NG	1.38 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	28 V	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	70000 Hrs	Sintec	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	2.3 W	2700 RPM	24 VDC	92 mm	92 mm	CSA UL VDE	99.79 g	0.22 lb	49.4 CFM	32 dB
ebm-papst Inc. 3414NGHH	1.68 m³/min		Polyamide (PA) Nylon Fiberglass Reinforced	18 VDC	26 VDC	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	70000 Hrs	Sintec	-20 ░C	70 °C	Tubeaxial	2 Wire Leads	25.4 mm	3.2 W	3250 RPM	24 VDC	92 mm	92 mm	CSA UL VDE	99.79 g	0.22 lb	60 CFM	39 dB(A)
