3292 Series

Catalog

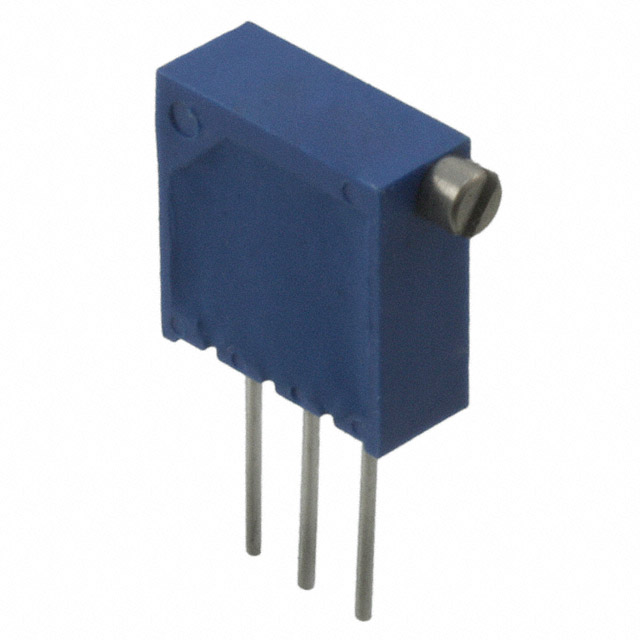

TRIMMER RESISTORS - THROUGH HOLE 3/8" 100KOHMS SEALED 10% PANEL MOUNT

Part	Mounting Type	Adjustment Type	Resistance	Number of Turns	Power (Watts)	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Tolerance	Temperature Coefficient	Resistive Material	Termination Style
Bourns Inc. 3292L-1-104M	Panel Mount Wire Leads	Top Adjustment	100 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	Wire Leads
Bourns Inc. 3292X-1-502M	Panel Mount Through Hole	Side Adjustment	5 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
Bourns Inc. 3292X-1-223	Through Hole	Side Adjustment	22 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
Bourns Inc. 3292L-1-200LF	Chassis Mount	Top Adjustment	20 Ohms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	Wire Leads
Bourns Inc. 3292X-1-502	Through Hole	Side Adjustment	5 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
Bourns Inc. 3292X-1-103LF	Through Hole	Side Adjustment	10000 Ohms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
Bourns Inc. 3292X-1-501	Through Hole	Side Adjustment	0.5 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
Bourns Inc. 3292L-1-101LF	Chassis Mount	Top Adjustment	100 Ohms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	Wire Leads
Bourns Inc. 3292L-1-503MLF	Panel Mount Wire Leads	Top Adjustment	50000 Ohms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	Wire Leads
Bourns Inc. 3292X-1-104	Through Hole	Side Adjustment	100 kOhms	25	0.5 W	0.5 W	0.375 in	9.53 mm	3.81 mm	0.15 "	10 %	100 ppm/°C	Cermet	PC Pins
