19682841 Series
Manufacturer: HARTING
Beta
⌘K
24B EMC HOOD SIDE ENTRY, DOUBLE LEVER, LOW CONSTRUCTION, M25 ROHS COMPLIANT: YES
| Part | Housing Finish | Ingress Protection | Thread Size | Style | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Connector Type | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Size | Housing Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

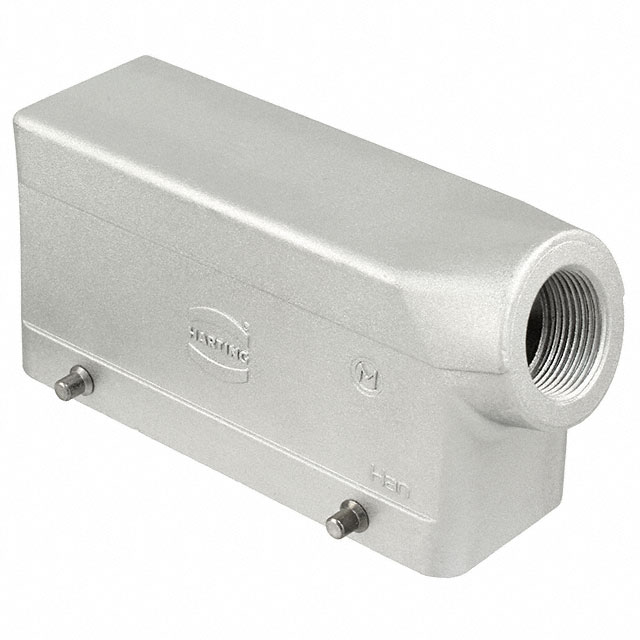

 HARTING | EMC Coating | IP65 - Dust Tight Water Resistant | M25 | Side Entry | 43 mm | 120 mm | 2.461 " | 62.5 mm | 4.724 in | 1.693 " | Hood | Locking Clip (2) on Base Bottom | 125 °C | -40 C | 24 B | Aluminum Die Cast | |

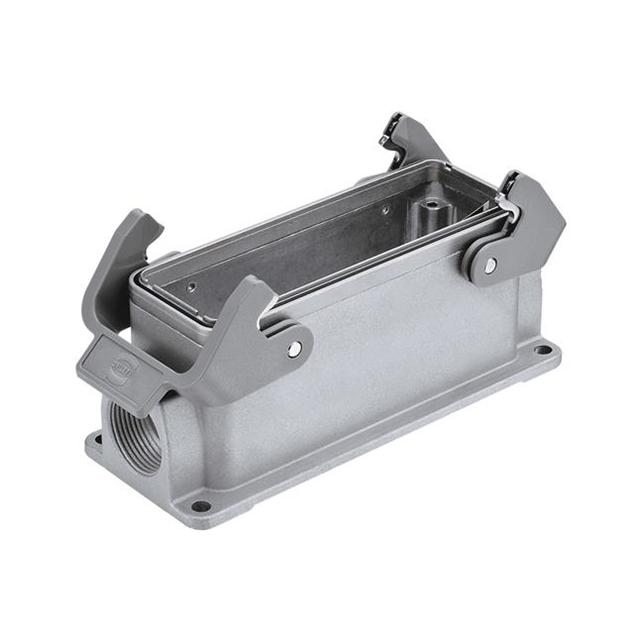

 HARTING | IP65 - Dust Tight Water Resistant | M25 | Side Entry | 57 mm | 144 mm | 2.244 " | 57 mm | 5.669 in | 2.244 " | Base - Box Mount | Locking Clip (2) on Base Bottom | 125 °C | -40 C | 24 B | Aluminum Die Cast | Feed Through | |

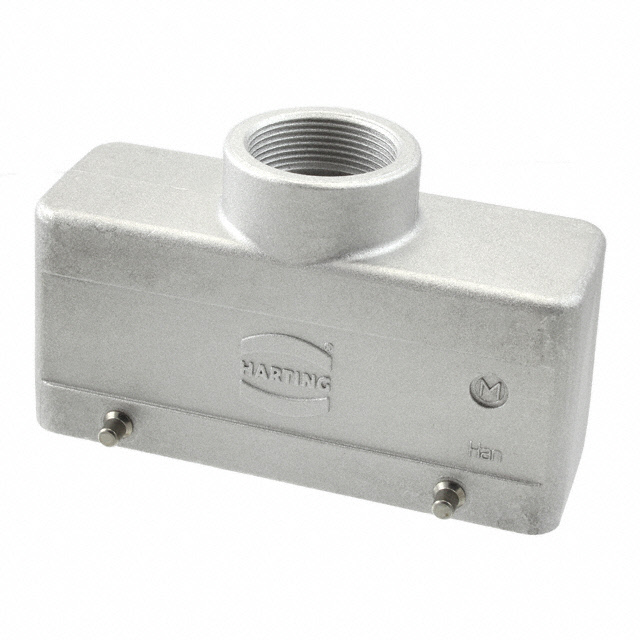

 HARTING | IP65 - Dust Tight Water Resistant | M32 | Top Entry | 43 mm | 120 mm | 2.165 " | 55 mm | 4.724 in | 1.693 " | Hood | Locking Clip (2) on Base Bottom | 125 °C | -40 C | 24 B | Aluminum Die Cast |
